Sony Vaio SVF15A16CXB RAM Replacement

Geschrieben von: Irven Coulter
  • Kommentare: 1
Sony Vaio SVF15A16CXB RAM Replacement

Schwierigkeitsgrad

Very easy

Schritte

7

Zeitaufwand

3 Minuten

Einleitung

The RAM in the Sony Vaio SVF15A16CXB temporarily stores data.

  1. VIUVoWN2VNwtGQM6

    • Unscrew the eleven 6 mm screws from the back panel on the bottom of laptop with the Phillips #0 screwdriver.

    • Unscrew the one 4 mm screw from the back panel on the bottom of laptop with the Phillips #0 screwdriver.

    • 6 mm screws marked in red, 4 mm marked in orange

  2. YWU2tnmXXTXxML5u
    YWU2tnmXXTXxML5u
    oQLpeK626raRiwgI

    • Using a plastic opening tool, pull the optical drive out of the computer by the seam.

    • In reassembly, slide the optical drive back in after reapplying cover.

    Debajo de la unidad óptica quedan tres tornillos que ajustan la cubierta en esa zona.

    nictalope -

  3. B5pufo3OmjGraspC

    • Run the opening tool along the bottom cover seam.

  4. UqpmYQSXGjrkYFpR

    • Lift the clip marked in red in order to release the back cover.

    • Lift the back cover.

  5. FvqiJwsePepOLOns

    • Locate the two metal clips securing the RAM.

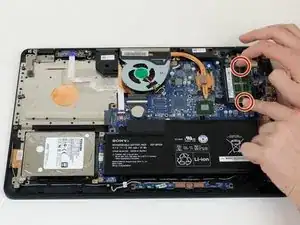

  6. MRqDLuPZR4ljFrne

    • Pull apart the two metal clips with your fingers.

    • Once you pull the metal clips away, the RAM will spring up from its original position.

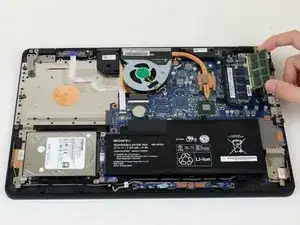

  7. VmHRvCROdnfVTNDu

    • Pull the RAM out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
