Einleitung

This guide shows how to replace a hard drive in a Sony Vaio SVS151190X laptop. A hard drive replacement is needed when the device storage is full or nearly full. Your device may also have a faulty hard drive, due to old age or damage of some sort. If possible, clear your hard drive of junk files to free up space before purchasing or installing a new hard drive. You may also want to consider purchasing an external storage device before replacing your hard drive.

  1. IbLAvF21YhqYwonT
    • Using a #1 Phillips screwdriver, remove the two 5mm screws as directed.

    • Slide off the back cover.

    • Ensure different sized screws are kept separate during disassembly.

  2. XOoVV3Md2KXYVISJ

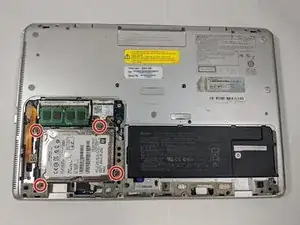

    • Remove the four 3mm screws using the Phillips #1 screwdriver.

  3. 4QdJqyDMC6UVTQ2Z

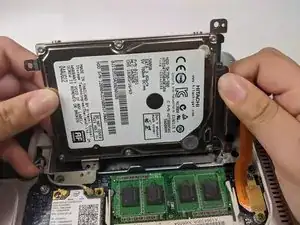

    • Lift out the hard drive and unplug the orange ribbon wire.

Abschluss

To reassemble your device, follow these instructions in reverse order.
