Sony Vaio SVT131A11L Motherboard Replacement

Geschrieben von: Benjamin
  • Kommentare: 3
Sony Vaio SVT131A11L Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

Motherboard replacements are one of the most time consuming replacements to perform on any laptop. Allocate about 45 minutes to an hour for this replacement, making sure to take your time and keep your screws organized.

This guide assumes that the motherboard you order as a replacement contains a processor and CPU fan. If your replacement does not include those components, refer to any generic CPU replacement guide for instructions on transplanting them.

  1. 2o2RiLeIdRW1TRCd
    2o2RiLeIdRW1TRCd
    CIdLbNktYURrHn6O
    nRWINyEVSDMqVZ3L

    • Carefully grab the edges of the laptop and flip it over to reveal the back panel.

    • The battery is located on the lower half of the back panel, and contains three 10mm flat-head screws.

    • Unscrew the three 10mm flat-head screws using a flat-head screw driver.

    • Lift the battery from the lip closest to the middle screw to remove the battery entirely.

  2. rwuiI6HTJD6lbwIR

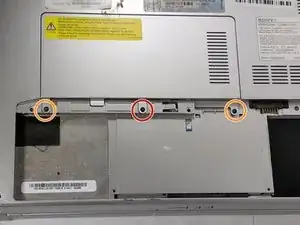

    • The Hard Drive bay cover has three Phillips head screws at two different lengths. Be sure to organize your screws, as improper replacement will result in damage to your device.

    • The middle Phillips head screw is 10mm in length and will only fit in this thread. Unscrew the 10mm Phillips head screw and keep it separate from the other two screws in this step.

    • Unscrew the two remaining 5mm Phillips head screws on the left and right side of the hard drive bay cover.

    • Lift the panel to remove it.

  3. y2agJaL3vLHIA6KF
    y2agJaL3vLHIA6KF
    AtWLaxxEykTqUChA

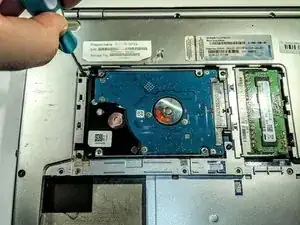

    • Remove the three 5mm Phillips head screws that secure the Hard Drive bay to the back panel.

  4. ZQVe2UwYfphqbpNN

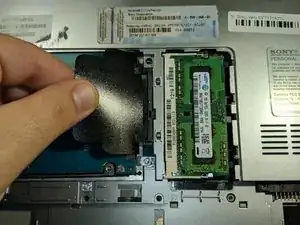

    • Remove the Hard Drive bay by gently pulling the black plastic tab away from the SATA connector.

    • When removing the hard drive bay, it is important not to pull the black tab too hard; it may rip off/cause damage to the SATA connector, resulting in much bigger issues.

    • Using a plastic pry-tool to push the drive away from the SATA connector can also help at this step.

  5. csO2xvGpvMbrnOlI
    csO2xvGpvMbrnOlI
    B6Fv4SMwjpdrRUce

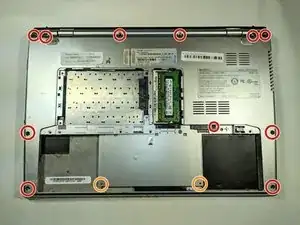

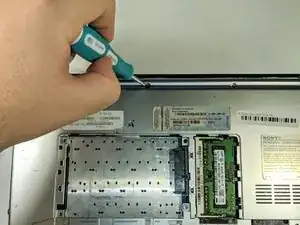

    • Remove the eleven 5mm in length Phillips head screws around the perimeter of the back panel of the laptop.

    • Remove the two 5mm in length Phillips head screws holding down the track pad panel to the track pad.

  6. a1BLcpsAcUMeCQJp

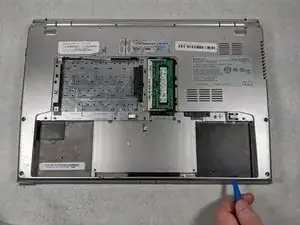

    • Be careful when prying the back panel away from the laptop, the plastic frame and hinges that attach it to the back panel are prone to bending/cracking.

    • Use a prying tool, separate the back panel from the laptop.

  7. 3ADJL1gpxyVKtLd5
    3ADJL1gpxyVKtLd5
    MPRUsDTHcs1bXH2h

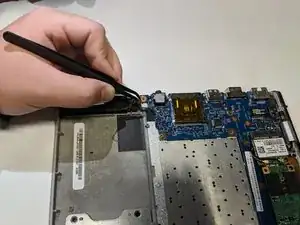

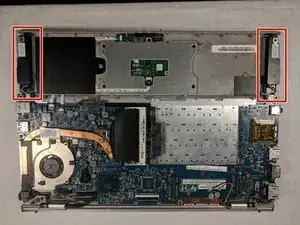

    • Using a pair of tweezers, remove the two cables connecting both speakers to the motherboard panel.

  8. nmTsf5GxXhIkZwFH
    nmTsf5GxXhIkZwFH
    mjIAATWnBDRSGgCX

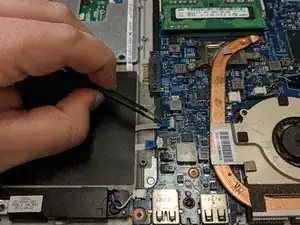

    • Locate the ribbon cable connecting the trackpad to the motherboard.

    • Lift the white plastic tab holding the ribbon cable in place to release it.

    • Remove the ribbon cable by pulling the blue tab away from the motherboard.

  9. XV4p1Ie2vHrIKoMI
    XV4p1Ie2vHrIKoMI
    CTrMuZCIfLKmMP6I

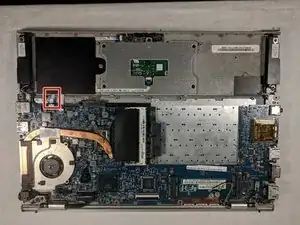

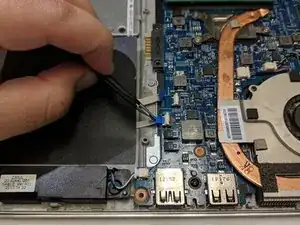

    • Locate the ribbon cable connecting the LED Array to the motherboard.

    • Lift the white plastic tab holding the ribbon cable in place to release it.

    • Remove the ribbon cable by pulling the blue tab away from the motherboard.

  10. 3sSYmDUm1vCjCkJf
    3sSYmDUm1vCjCkJf
    yG5R65DrTToxFFNc

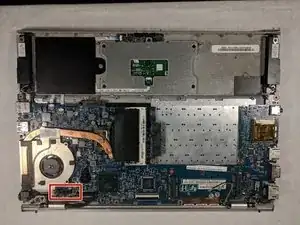

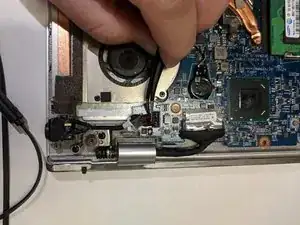

    • Locate the cable that connects the charging port to the motherboard.

    • Grab the head of the cable and pull up and away from motherboard to disconnect it.

    • Be sure to remove the AC adapter from the laptop before attempting this step. A plastic spudger will also work here, and will not pose a risk of shorting out any components on the motherboard.

    I was not able to unplug this but keeping it attached and lifting the motherboard worked for me.

    Asimov4 -

  11. Iu11oYpPFbQxPNSF
    Iu11oYpPFbQxPNSF
    6lwaqkXqRAFKSYCb

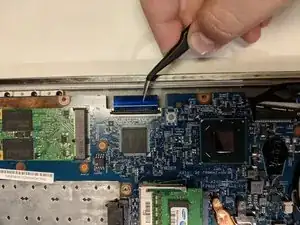

    • Locate the ribbon cable connecting the keyboard to the motherboard.

    • Lift the white plastic tab up to release the keyboard ribbon cable.

    • Pull the blue tab away from the connector to remove the cable.

    I had to lift the black tab instead of the white plastic bloc.

    Asimov4 -

  12. LaTEBpwLYJ2HghLR
    LaTEBpwLYJ2HghLR
    sqSKsFBkFwdIRhHs

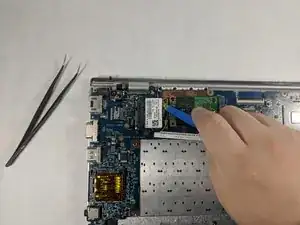

    • Locate the wireless network interface card (NIC) above the area where the hard drive bay sits normally.

    • Using a plastic opening tool, remove the two cable head wires connecting the NIC to the motherboard.

  13. c4BLoXbIgAlEQtRf
    c4BLoXbIgAlEQtRf
    NJux6GmcYtCIMKEQ

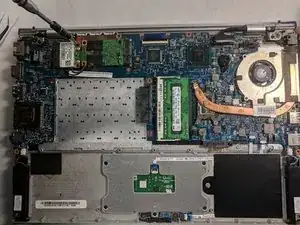

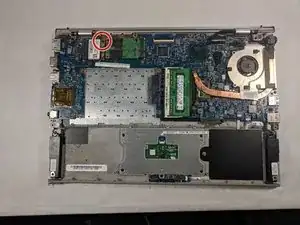

    • Unscrew the 5mm Phillips head screw holding the NIC to the motherboard.

    • Remove the NIC from the PCIe slot on the motherboard.

  14. pobA5ngeKERLkZYN
    pobA5ngeKERLkZYN
    LulDLFUpRp6DteG2
    uYU6jw2jRques3Su

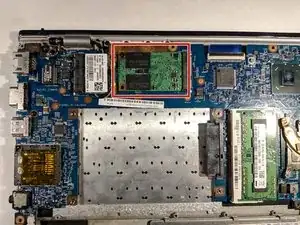

    • Locate the Solid State Drive (SSD) on the motherboard.

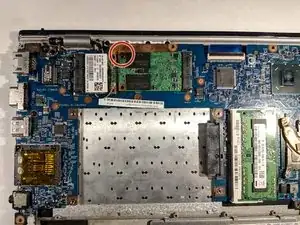

    • Unscrew the 5mm Phillips head screw securing the SSD in place on the motherboard.

    • Remove the SSD from the PCIe slot on the motherboard.

  15. GusW5Zbb3ZHumhvi
    GusW5Zbb3ZHumhvi
    pkrm61xnXSLktKVa

    • Locate the Random Access Memory (RAM) card on the motherboard.

    • Pull the two metal clips securing the RAM apart, releasing the card from the DIMM slot.

    • Remove the RAM from the motherboard, be sure to store this safely as your replacement motherboard with NOT come with a new one.

  16. Zq2iltjvApyxDUxY
    Zq2iltjvApyxDUxY
    AhW1AHBSVFuuWmPs

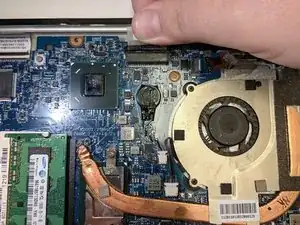

    • Locate the display cable connecting the keyboard to the motherboard.

    • Grab the clear plastic tab attached to the top of the connector, and pull away from the motherboard to separate it from the board.

  17. nA5f6CNmxmHBq6yP
    nA5f6CNmxmHBq6yP
    yOZCo3oCTgSiLyPG
    LqtQWV21VCcREWtU

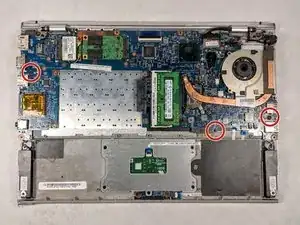

    • Unscrew the three 5mm Phillips head screws holding the motherboard to the laptop.

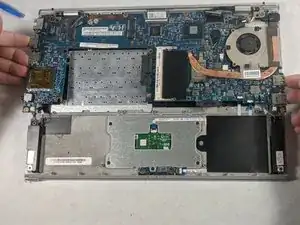

    • Grab the edges of the motherboard and lift the it slowly up and away from the back panel of the laptop.

    • It's best to lift the board away from the case by using the USB headers on the sides for leverage. Be careful when touching components on the motherboard, as oils from your skin can cause them to short out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
