Sony Vaio VGN-FS640 Hard Drive Replacement

Geschrieben von: Matt McCarty
  • Kommentare: 1
Sony Vaio VGN-FS640 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to replace the hard drive in your Sony Vaio VGN-FS640 laptop.

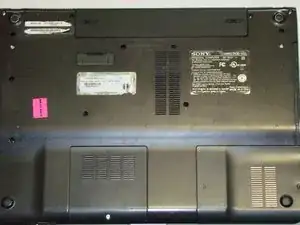

  1. PsdiFkxTrHAwtKSr

    • Lay the closed laptop on its screen so the bottom is facing towards you.

  2. yAEoZWeTjJdHJFTD

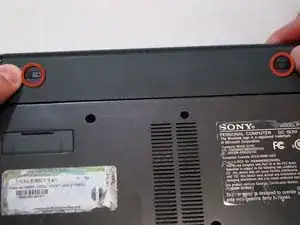

    • Push both latches towards the center of the battery.

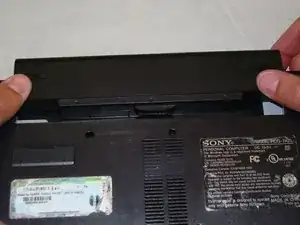

  3. ZrwfyDEdSpqPWvZZ
    ZrwfyDEdSpqPWvZZ
    jVL3ARKdUNEGFtEd

    • Revome the battery by pushing it away from the laptop.

    • Set the battery away from the laptop.

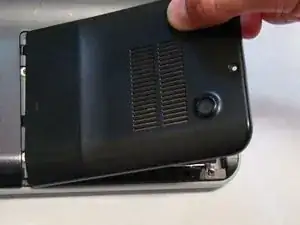

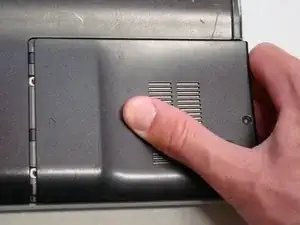

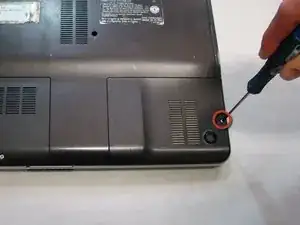

  4. sKXQcyY3X4IJOmnM
    sKXQcyY3X4IJOmnM
    xnGWkpAtLaQKFJ15
    dIxvhoGvVDKnw4s5

    • Locate and remove the screw (Length: 7.7mm) for the hard drive cover.

    • Slide the cover until it is free from the laptop case.

    • Lift the cover to remove.

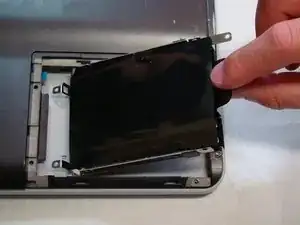

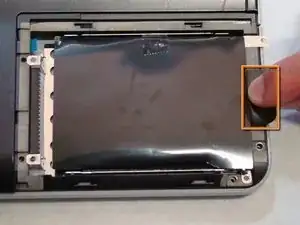

  5. V2cCgDwHOFNylQ3X
    V2cCgDwHOFNylQ3X
    WUArtFQMmIn2sodr
    lE4YcEwQwQXE6kXu

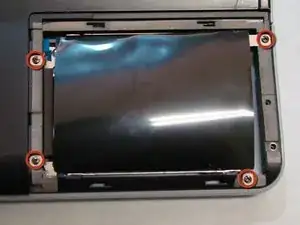

    • Locate and remove the four screws (Length: 7.7mm) holding the Hard Drive tray in place.

    • Using the tab on the tray, slide the Hard Drive away from the main body of the laptop.

    • The Hard Drive should now be disconnected.

    • Lift the drive out with the tab on the tray.

Abschluss

To reassemble your device, follow these instructions in reverse order.
