Sony Vaio VGN-NW240F (PCG-7184L) Keyboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

35 Minuten - 1 Stunde

Einleitung

The keyboard should be replaced if it is missing keys or non-functional.

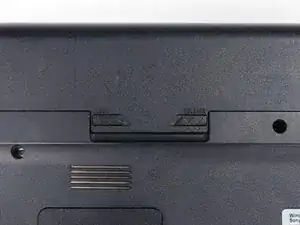

  1. PPkEP6eQfxWI3VZI

    • Power off the laptop.

    • Unplug the charging cable and any other cables plugged into the laptop.

    • Failure to remove or unplug any cables could result in electric shock.

    • Turn the laptop over so that the back panel is facing upwards.

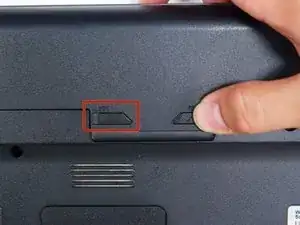

  2. 3Lp55HPLV1eiXpiQ

    • Locate two switches above the battery that lock it into place.

    • Push the left-hand switch, that says "lock" above it, so that it is unlocked.

  3. BNSGTxpXcotPqK1w

    • Push and hold the right-hand switch, which says "release" above it, and lift the battery up out of its place.

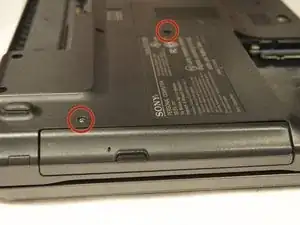

  4. dspGZkDYCxBGuQWP

    • Locate and unscrew the two highlighted 8 mm Phillips #1 screws.

    • There will be three dots next to the desired screws

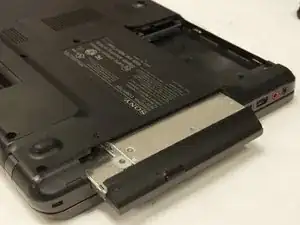

  5. GkKtjuOVMxZ2XAeY

    • Grip the cover of the optical drive and slide it out.

    • If it does not come out, do not force it. Double check to make sure the screws are entirely removed.

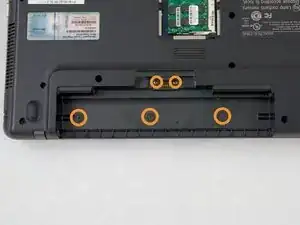

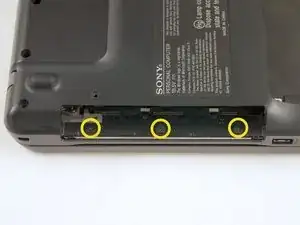

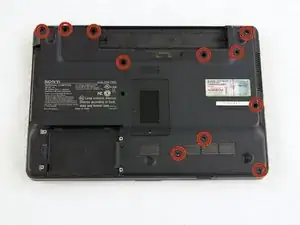

  6. jcUidwANXZnOpjaA
    jcUidwANXZnOpjaA
    KBLCTgpfb1TKad4Y
    gBnaXQ2Tn6duTGZO

    • Remove all the 8mm Phillips #1 screws on the backside of the laptop.

    • There are three 3mm and two 5.3mm screws under the battery that also need to be taken out.

    • There are three 3mm screws under the optical drives that also need to be taken out.

    • Remove the RAM panel in addition to the other screws. For further instructions, refer to the RAM replacement guide.

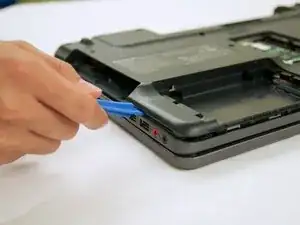

  7. sJM3SLSsJahP1GhU
    sJM3SLSsJahP1GhU
    qJtANC6ANwPtNsJC
    U2XGhvEIwba3KH5t

    • Pry along the edges of the back panel using the spudger.

    • If you are struggling to remove the back panel with a moderate amount of force, do NOT apply any additional force, instead double check to make sure all the screws were removed before attempting again.

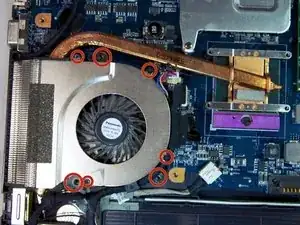

  8. IpkTYV6ZXVOyRrD4

    • Locate and remove three 5.3 mm Phillips #1 screws on the bottom of the fan.

    • Locate and remove the four 5.3 mm Phillips #1 screws on the top of the fan.

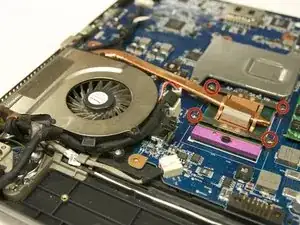

  9. BOWrNTBPmciKqGJj

    • Locate and remove the four 3mm Phillips #1 screws above the processor and attached to the bronze heat-pipes.

    • Gently lift up the fan and heatsink from the the laptop.

    • If the fan and heatsink will not lift up with ease, do NOT apply any additional force. Check again to see if all necessary screws are removed.

  10. ARplV4UEJvBrhG4E

    • The fan attached onto the heat sink with electrical tape. Removing the electrical tape allows you to replace the fan.

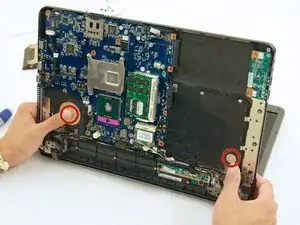

  11. nHSCWIuLxAqYg55Q

    • Locate the two highlighted circular openings and push the keyboard out.

    • There is a ribbon cable attaching the keyboard to the back of the motherboard. Avoid damaging the ribbon when pushing out the keyboard.

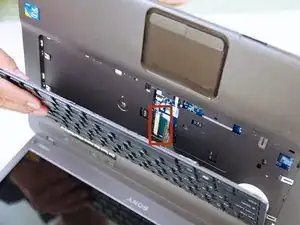

  12. DRITyCSvHhlRteEf

    • Detach the ribbon cable to separate the keyboard from the laptop.

    • Push open the brown clamp at the base of the ribbon to release it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
