Sony Vaio VGN-NW240F (PCG-7184L) Network Card Replacement

Geschrieben von: Sid
  • Kommentare: 0
Sony Vaio VGN-NW240F (PCG-7184L) Network Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 - 25 Minuten

Einleitung

The network card is what allows a laptop to connect to the internet. Replacing a faulty network card can solve connectivity issues. Please review the Troubleshooting Guide before replacing the Network Drive

  1. PPkEP6eQfxWI3VZI

    • Power off the laptop.

    • Unplug the charging cable and any other cables plugged into the laptop.

    • Failure to remove or unplug any cables could result in electric shock.

    • Turn the laptop over so that the back panel is facing upwards.

  2. 3Lp55HPLV1eiXpiQ

    • Locate two switches above the battery that lock it into place.

    • Push the left-hand switch, that says "lock" above it, so that it is unlocked.

  3. BNSGTxpXcotPqK1w

    • Push and hold the right-hand switch, which says "release" above it, and lift the battery up out of its place.

  4. dspGZkDYCxBGuQWP

    • Locate and unscrew the two highlighted 8 mm Phillips #1 screws.

    • There will be three dots next to the desired screws

  5. GkKtjuOVMxZ2XAeY

    • Grip the cover of the optical drive and slide it out.

    • If it does not come out, do not force it. Double check to make sure the screws are entirely removed.

  6. jcUidwANXZnOpjaA
    jcUidwANXZnOpjaA
    KBLCTgpfb1TKad4Y
    gBnaXQ2Tn6duTGZO

    • Remove all the 8mm Phillips #1 screws on the backside of the laptop.

    • There are three 3mm and two 5.3mm screws under the battery that also need to be taken out.

    • There are three 3mm screws under the optical drives that also need to be taken out.

    • Remove the RAM panel in addition to the other screws. For further instructions, refer to the RAM replacement guide.

  7. sJM3SLSsJahP1GhU
    sJM3SLSsJahP1GhU
    qJtANC6ANwPtNsJC
    U2XGhvEIwba3KH5t

    • Pry along the edges of the back panel using the spudger.

    • If you are struggling to remove the back panel with a moderate amount of force, do NOT apply any additional force, instead double check to make sure all the screws were removed before attempting again.

  8. dq6hyN6LFmpbTymc

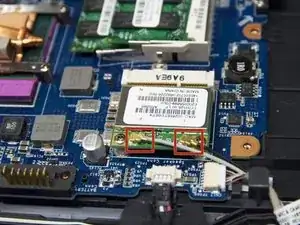

    • Pull the two cables off of the network card.

    • Make sure to pull the cables straight up as the connectors are fragile.

  9. lIYLJXp5UNVPKUvn

    • Remove the two Phillips 5.3mm screws from the network card.

    • After the screws are released, the network chip should lift up at an angle.

    • Gently pull out the network card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
