Einleitung

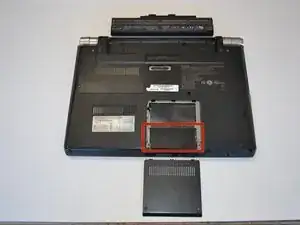

The battery needs to removed before servicing or replacing any other component. The RAM is under a panel held on by two screws. The RAM is easy to remove once the panel is off.
Werkzeuge
-
-
Slide the lock latch to the right to release the battery lock.
-
Slide and hold the release latch to the left.
-
-
-
Use a fingernail or plastic opening tool lift the battery while holding the release latch.Rotate the battery up and away from you to remove it from the laptop.
-
-
-

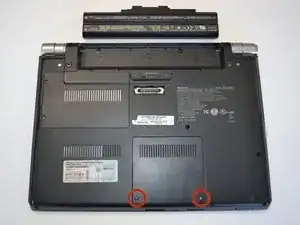

Using a Phillips #1 screwdriver, remove both screws. The screws are secured to the cover with retaining clips.
-
-
-

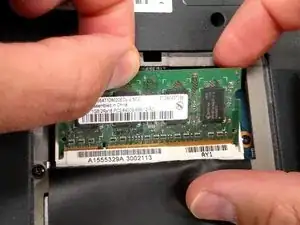

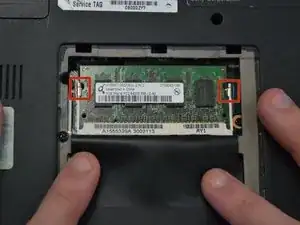

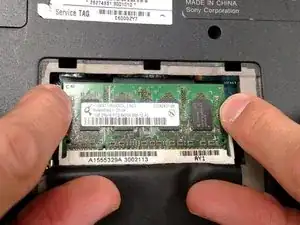

Apply light outward pressure to the locks on either side of the RAM. Rotate the RAM up slightly. Pull the RAM toward you to remove it.
-
-
-

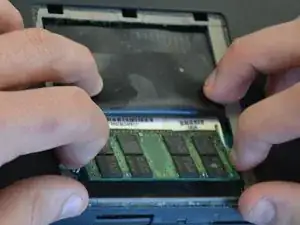

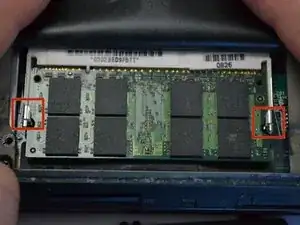

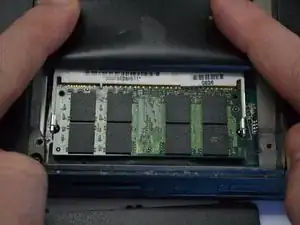

Using the same light outward pressure on the locks, lift the secondary RAM up and slide it away from you to remove it from its slot.
-
To reassemble your device, follow these instructions in reverse order.
