If your laptop is overheating you may need to replace the fan. This guide will guide you in replacing your laptop’s fan. The tools required in this process are: an iFixit opening tool, a PH0 screwdriver, and needle nose pliers.
Werkzeuge
Ersatzteile
-
-

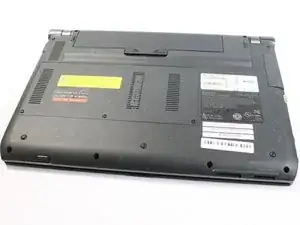

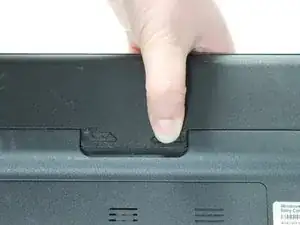

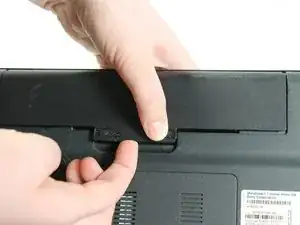

While holding the “Release” switch, lift the lip of the battery.
-

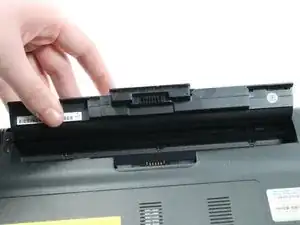

Lift the battery up and out of the laptop.
-
-
-

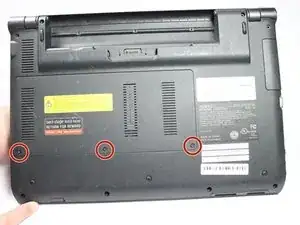

Using a #0PH screwdriver, unscrew the three 4.80mm screws on the back of the device.
-
The screws are held into the panel by washers, they will not fall out once unscrewed.
-
-
-
Remove all nine 5.63mm screws with the #0PH screwdriver.
-

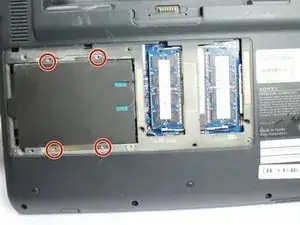

Remove the four 8.62mm screws with the #0PH screwdriver.
-
-
-
Flip your Vaio so that the keyboard is facing up.
-

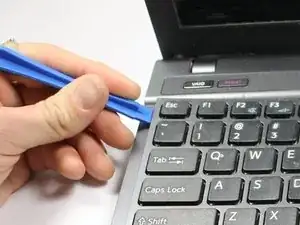

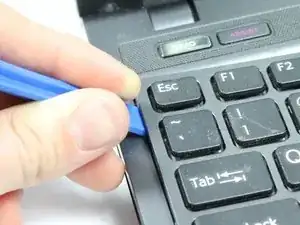

Use the iFixit Opening Tool to lift the keyboard from the frame, starting at the ESC key corner.
-

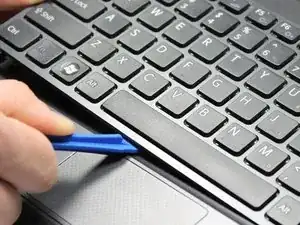

Gently slide the iFixit Opening Tool along the edge of the keyboard.
-
-
-
The cable is located under the keyboard, just above the touchpad.
-

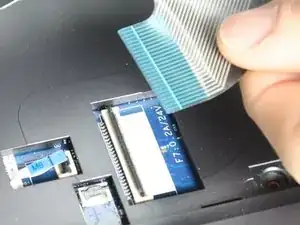

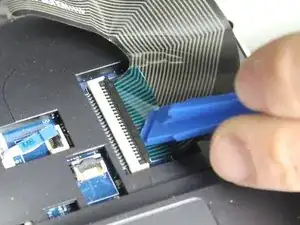

Use the iFixit Opening Tool to flip the clip up in order to release the cable.
-
Detach the cable from the frame.
-

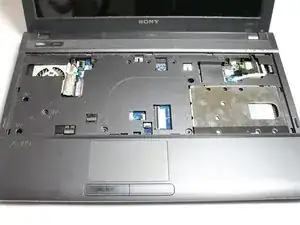

Remove the keyboard from the frame.
-
-
-
Use the iFixit Opening Tool to lift the edge of the clip from the cable.
-
Gently pull the cable away from the clip.
-
Repeat the first two steps on the second clip shown in the picture.
-
-
-

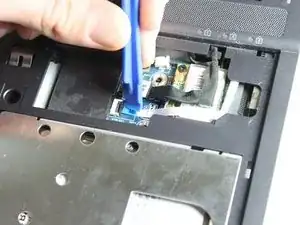

Use the iFixit Opening Tool to detach the cable from the motherboard.
-
Use the small needle nose pliers to pull the cable from the motherboard.
-
-
-

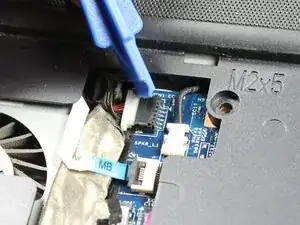

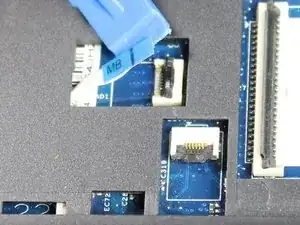

Use the iFixit Opening Tool to flip the clip up in order to release the first cable.
-

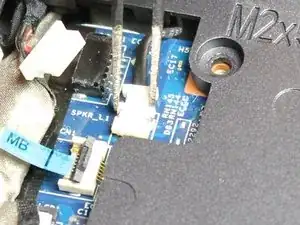

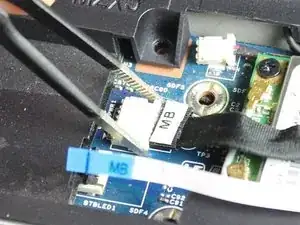

Use the small needle nose pliers to pull the second cable from where it is attached.
-
Use the small needle nose pliers to detach the third cable from motherboard.
-
-
-

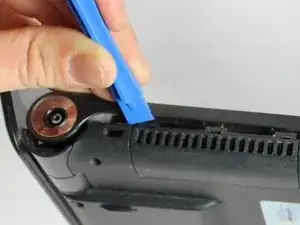

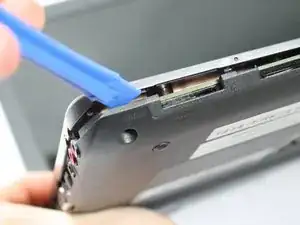

Use the iFixit Opening Tool to lift the back of the Vaio from the frame.
-
Slide the iFixit Opening Tool around the edges of the frame.
-
-
-

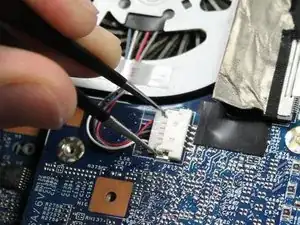

Use the small needle nose pliers to pull the cable connector from the motherboard.
-

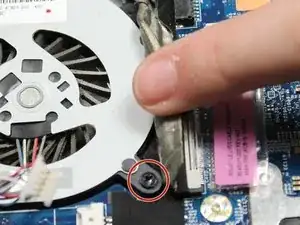

Push the flap to the side so you can access the screw beneath.
-

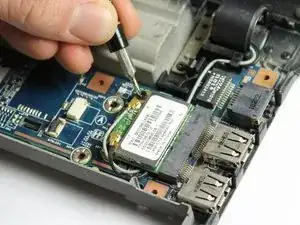

Use the #0PH screwdriver on the one 5.63mm screw.
-
-
-
Unscrew the 5.63mm screw tethering the motherboard to the laptop with a #0PH screwdriver.
-
Remove the piece from the motherboard.
-
-
-

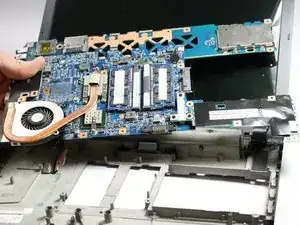

Flip the motherboard upside down to access the other side.
-

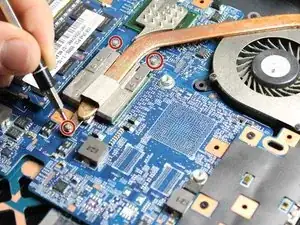

Use a #0PH screwdriver to remove the three 3.61mm screws holding the fan to the motherboard.
-

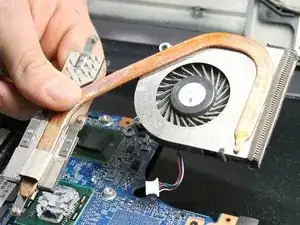

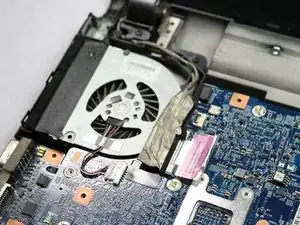

Remove the fan from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
