Einleitung
In order to remove the Hard Drive safely, be sure to take out the battery first. The Hard Drive is under a panel on the laptop and can be ejected by removing screws.
Werkzeuge
-
-

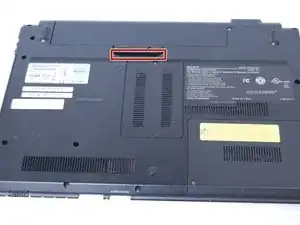

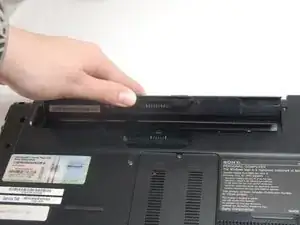

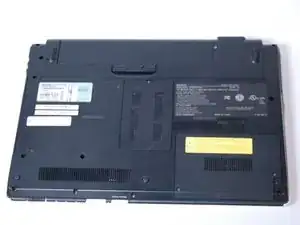

Use your fingernail or a plastic tool to lift the battery. Rotate the battery up and away to remove from the laptop.
-
-
-

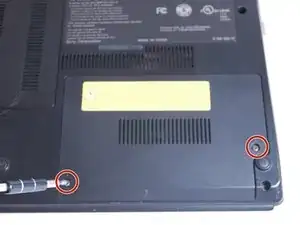

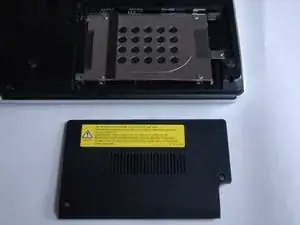

Use a Phillips #00 screwdriver to remove the two 7.7 mm screws from the hard drive cover and place it to the side.
-
-
-

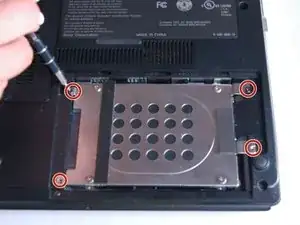

Remove the four screws (Length: 7.7 mm) using the Phillips #00 screwdriver that hold the hard drive in place.
-

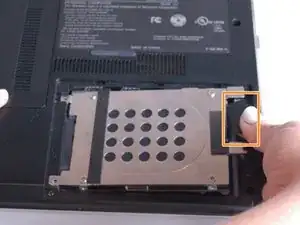

Use the tab to slide the hard drive away from the laptop.
-

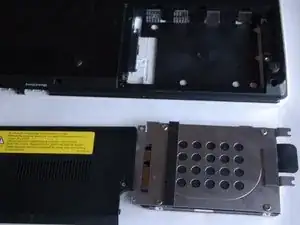

Set the disconnected hard drive away from the laptop.
-
-
-

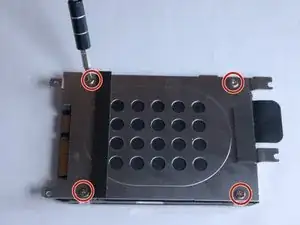

Remove the four screws (Length: 7.7 mm) using the Phillips #00 screwdriver that cover the hard drive.
-

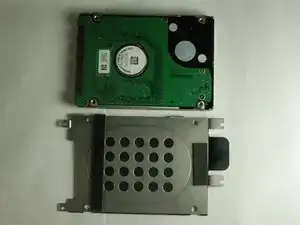

Use the tab to pull up on the metal cover and remove it.
-
You are now free to replace the hard drive.
-
To reassemble your device, follow these instructions in reverse order.
