Sony Vaio VPCCW17FX RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

In order to remove the RAM safely, be sure to take out the battery first. The RAM is under a panel on the laptop and can be ejected by hand.

  1. Her2Rci34c4clU3v

    • Turn the laptop over and orient it as shown.

  2. fDc21dkDuQGE15gk

    • Slide both latches to the center of the laptop in order to release the battery.

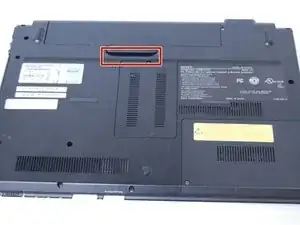

  3. lGA5dNCpD2NIXLkZ
    lGA5dNCpD2NIXLkZ

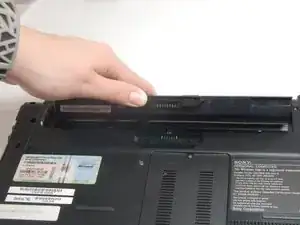

    kmlYG1HoRZFmm1IE

    • Use your fingernail or a plastic tool to lift the battery. Rotate the battery up and away to remove from the laptop.

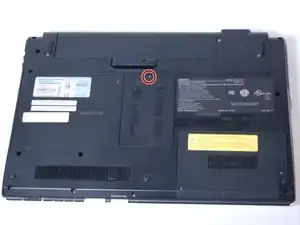

  4. 6mlv56yBCuVBJbxI
    6mlv56yBCuVBJbxI
    5TppDGcgPD5MEsIC

    • Using a Phillips #0 screwdriver, remove the one screw (Length: 7.7 mm) that is covering the RAM.

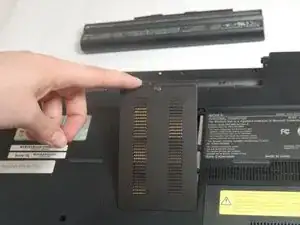

  5. YDukaUduI6XJkeTh

    • Lift the black plastic cover to assess the RAM.

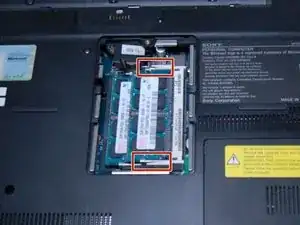

  6. moNHLsFNVpHIl23C
    moNHLsFNVpHIl23C
    nEmaVenarMOfYTHK

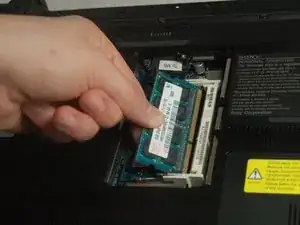

    CYNYYheFI5vYPDPH

    • Apply light, outward pressure to the locks on both sides of the RAM.

    • Rotate the RAM up and slowly pull towards you to remove it.

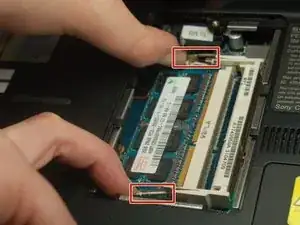

  7. oMLqC2iNiHnm6mk2
    oMLqC2iNiHnm6mk2

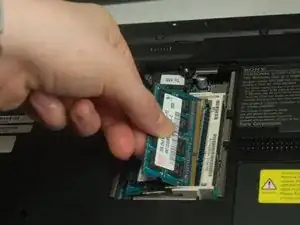

    RoD3nAh3Lo4d1X6K

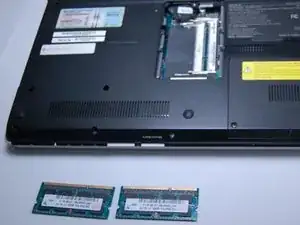

    abAdKq1F5T1dXKpj

    • In order to remove the secondary RAM, use the same outward pressure on the locks.

    • Lift and slide out the RAM to remove it from the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
