Sony Vaio VPCEB11FM Cooling Fan Replacement

Geschrieben von: Maxine Filcher
  • Kommentare: 3
Sony Vaio VPCEB11FM Cooling Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

30 Minuten - 2 Stunden

Einleitung

  1. BgiqH4RGXdpE3Vyg

    • Power down and disconnect the laptop from power supply.

    • Using your fingers, unlock the tab by pushing on the slide.

  2. kJdK6Bs3Z4QBFxUb

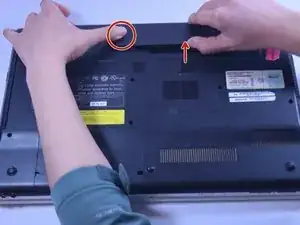

    • While holding the release slide, use your thumb to lift the lip of the battery to pull it out.

  3. NVPycUYrvYegdMRu

    • Pull the battery out.

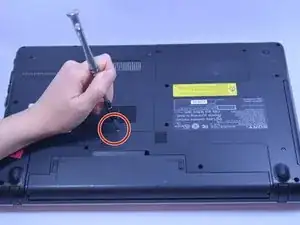

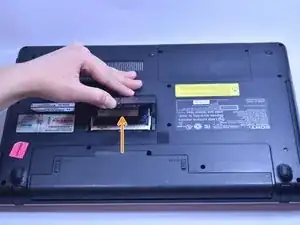

  4. JhNdDwcIPwQnUmNJ
    JhNdDwcIPwQnUmNJ
    iiY4kyCFRZv3nVqA

    • Unscrew the RAM cover plate using the Phillips #1 Screwdriver.

    • Once the cover has been loosened, pry the cover with your finger for it to come off.

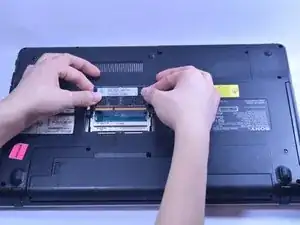

  5. oIEaBhZtTxI5QAGZ
    oIEaBhZtTxI5QAGZ
    B2FUVcAYOOIEW1XR
    UFEGHJJ4OZLPhCXZ

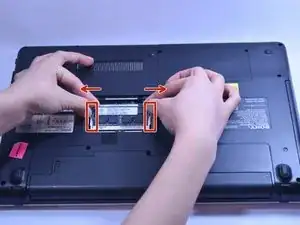

    • Use your fingers to gently pull the white plastic strip outward on both sides.

    • Once you pull the strip, the strip of RAM will loosen up. Once loose the strip of RAM should lift out.

    • Once done with the top strip of RAM continue for all continuous strips.

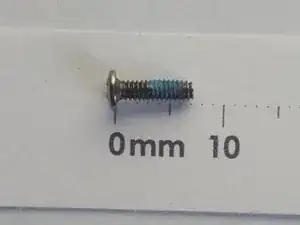

  6. HXChrtCK6LX1xkKC
    HXChrtCK6LX1xkKC
    MmpMhAWHjPWBuYgk

    • Using the Phillips #01 Screwdriver, remove the two 7mm screws.

  7. 1C1IyeA4nOPZy3sA
    1C1IyeA4nOPZy3sA
    cU1TVEvPaqa6oVQl
    IDHfDteT5SX2Rpfd

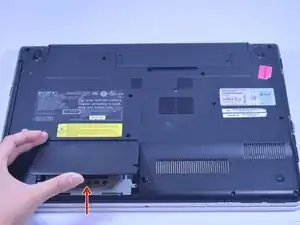

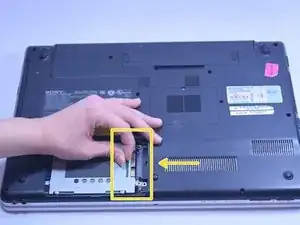

    • Use your fingers to pry the cover upward.

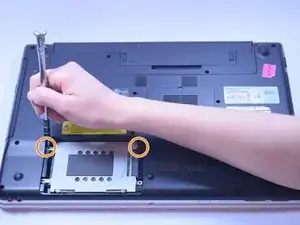

    • Unscrew the two 7mm screws.

    • Pull the plastic tab in the direction of the arrow to take out.

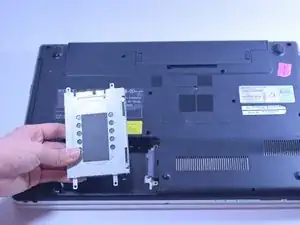

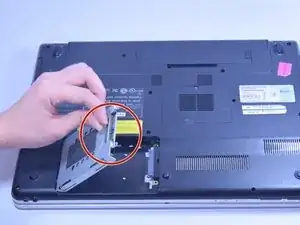

  8. d3Q2GTuaYO4urMZL
    d3Q2GTuaYO4urMZL
    OJHqOV11AQXW1DGC

    • Lift plug side first.

    • Remove all the way.

  9. UXUwuJsJQkr6Ml4m
    UXUwuJsJQkr6Ml4m
    RPMgvFeGHFpGTBvX
    pqYoMZZeK6KqClPE

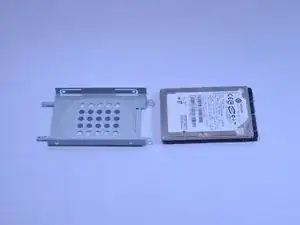

    • Skip to next step if accessing other components.

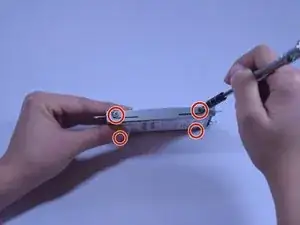

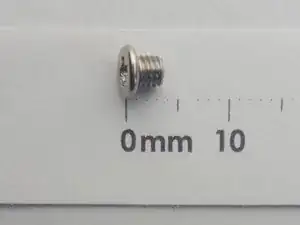

    • Remove the 3mm screws with the Phillips #1 Screwdriver from hard drive bracket.

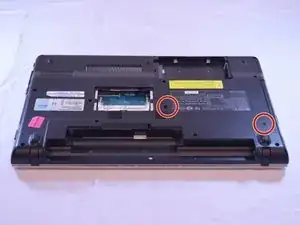

  10. mq5DpXZKQIASEdiu
    mq5DpXZKQIASEdiu
    DEeiMOO3s2whWWPR

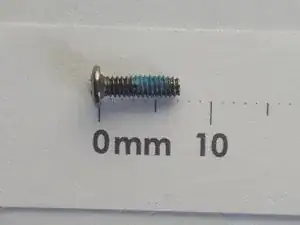

    • Remove the 7mm screws with the Phillips #1 Screwdriver.

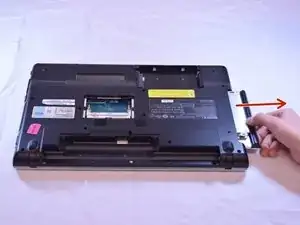

  11. LoTERO6ngcAOxyVu

    • Grasp the DVD drive's face plate with your fingers and pull out.

  12. SXarGKQWfvAZTqaN
    SXarGKQWfvAZTqaN
    pOcbMmiKYkIBhgDR
    UAwrEVJiWmEeTQuI

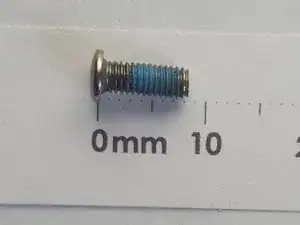

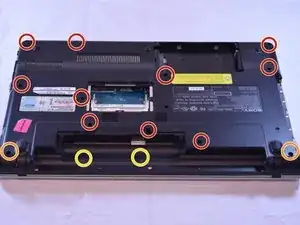

    • Remove ten 7mm screws with the Phillips #1 Screwdriver.

    • Remove two 8mm screws with the Phillips #1 Screwdriver.

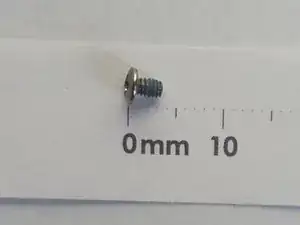

    • Remove two 3mm screws with the Phillips #1 Screwdriver.

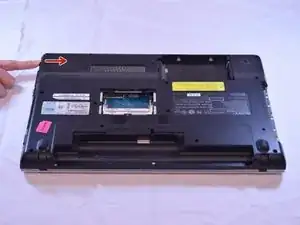

  13. 4TySOjXbDUSs3W4I
    4TySOjXbDUSs3W4I
    Sb1k1KWrPH1HyYfR

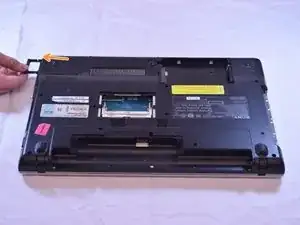

    • Remove SD card slot block by pushing it in until it releases.

    • Once released pull out to remove.

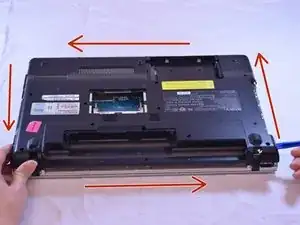

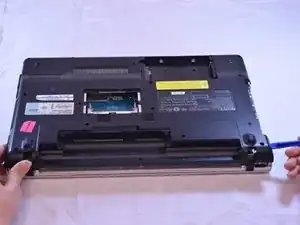

  14. bnDJOmBcgYLLPlXS
    bnDJOmBcgYLLPlXS
    lmBFEgp2DlFyBxCw
    ZJPqpMX5JwFbQjNq

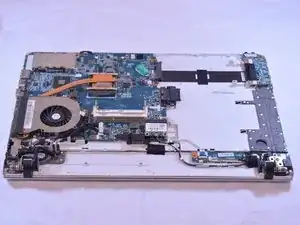

    • To take off the cover plate, start by finding a loose corner to begin prying it open.

    • Work the tool around the sides to release the cover. You may need a second tool to help keep your loose corner open.

    • Lift cover away.

    • NOTE: If you are attempting to access other components, skip 2 steps.

    To replace WIFI Card Skip to Part 2 now

    Maxine Filcher -

    For this step, I found that gently pulling up from the empty disc drive bay is an easier way to remove the backing.

    William -

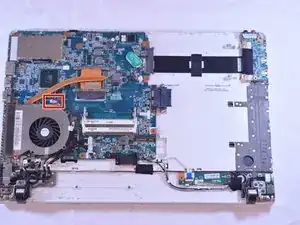

  15. Ayq6tQ4SYNYaAPKu
    Ayq6tQ4SYNYaAPKu
    PUQbvYsPYUNHgrh1
    DKUDOlASyVMYLgjy

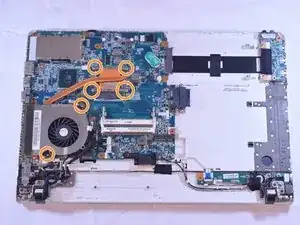

    • Remove the plug shown using a pry tool.

    • Remove seven 5mm screws with the Phillips #01 Screwdriver.

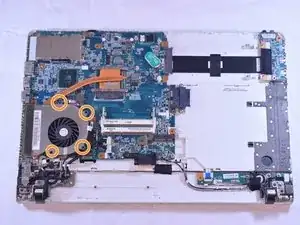

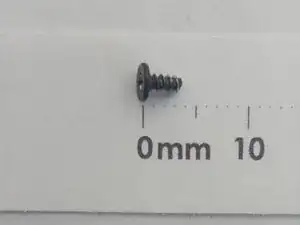

  16. HHPvIBLkYt3VSiCT
    HHPvIBLkYt3VSiCT
    Rd4u4oUaHBvwkQiQ
    5sglrKSB1EYNHMOt

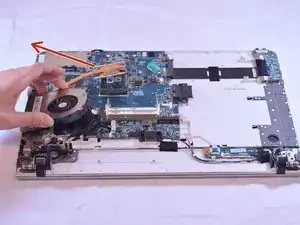

    • To break the thermal paste, apply gentle constant upward force until it comes free.

    • Remove four 3.5mm screws with the Phillips #000 Screwdriver to access cooling fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
