Sony Vaio VPCEB11FM Keyboard Replacement

Geschrieben von: Maxine Filcher
  • Kommentare: 2
Sony Vaio VPCEB11FM Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

8 - 15 Minuten

Einleitung

  1. BgiqH4RGXdpE3Vyg

    • Power down and disconnect the laptop from power supply.

    • Using your fingers, unlock the tab by pushing on the slide.

  2. kJdK6Bs3Z4QBFxUb

    • While holding the release slide, use your thumb to lift the lip of the battery to pull it out.

  3. NVPycUYrvYegdMRu

    • Pull the battery out.

  4. mq5DpXZKQIASEdiu
    mq5DpXZKQIASEdiu
    DEeiMOO3s2whWWPR

    • Remove the 7mm screws with the Phillips #1 Screwdriver.

  5. LoTERO6ngcAOxyVu

    • Grasp the DVD drive's face plate with your fingers and pull out.

  6. qsi2sQTGLtPBBQ1R
    qsi2sQTGLtPBBQ1R
    P5epnfpOP1fmNB52
    M5UnrASZwAA6APmr

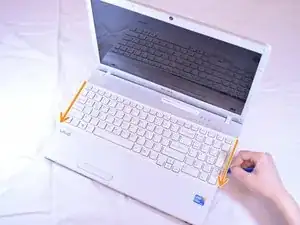

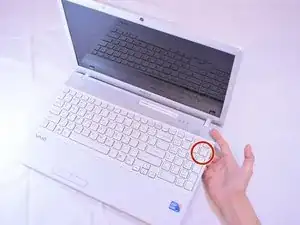

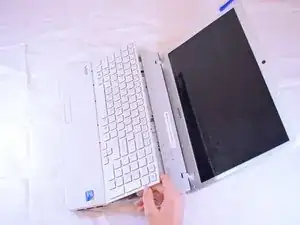

    • Within the DVD drive compartment, press on the hole to push the keyboard out of its placement.

    • The keyboard may need to be loosened on its edges with a plastic spudger.

    The red arrows in the photo with the ribbon connector should be reversed. To release the ribbon, the black plastic part of the connector should be pushed away from the white part.

    Peter Easthope -

  7. QuE5uSsACU4aQOxm
    QuE5uSsACU4aQOxm
    xEFZ4BO3hTR2Vx6K
    O1mQ2EXtSNxTHJLy

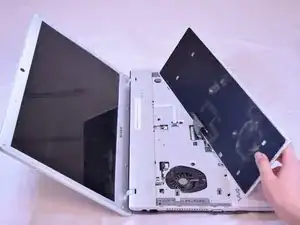

    • Carefully pull the keyboard back to expose ribbon connector.

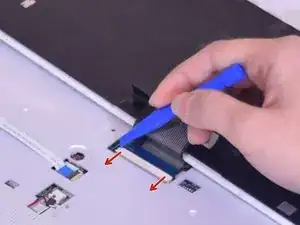

    • Using a spudger, or your finger tips, carefully slide the the ribbon keeper open.

    The red arrows in the photo with the ribbon connector should be reversed. To release the ribbon, the black plastic part of the connector should be pushed away from the white part.

    Peter Easthope -

Abschluss

To reassemble your device, follow these instructions in reverse order.
