Sony Vaio VPCEG26FX RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Through the use of this guide, you will be able to successfully remove the RAM from a Sony Vaio VPCEG26FX laptop. Please see pre-requisite guides in order to aid in your replacement efforts. The RAM will need to be replaced if the laptop runs exceptionally slow or programs unexpectedly crash. Ensure that the RAM is the SO-DIMM standard. Be careful to push back the pins holding the RAM in place. The RAM should move when these pins are moved correctly.

  1. gKPMhY3pKCKYh445

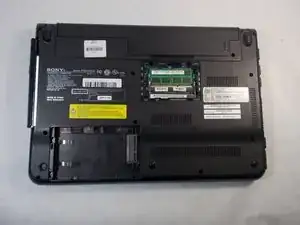

    • Flip the laptop so the bottom is facing up with the model number visible.

  2. rTw3D3mxKpVfCQPS
    rTw3D3mxKpVfCQPS
    H6biMIJUrE3WFxdB

    • Slide the lock switch down until you hear a click to unlock the battery.

  3. 1gencIVpgfOs2Ioj
    1gencIVpgfOs2Ioj
    VpHWqMW2Rp4DaIIs

    • Slide the release slider up and simultaneously push the battery upwards away from the device until it falls out of place.

  4. HRPYK3SKBtahjViJ
    HRPYK3SKBtahjViJ
    pJg4AiagBpGfTgVR

    • Remove the battery from the battery compartment.

  5. B6fVasRpWlrlfbKm

    • After you remove the battery, there is a small rectangular panel underneath where the battery was housed.

  6. TmAj3NF6hefBxRi5

    • Remove the single screw holding the panel in place using the JIS #0 screwdriver.

  7. LdjKDVMImDhvvhGs
    LdjKDVMImDhvvhGs
    xb6d6QUJhRPnNTUQ
    t23v4yQfeEpsMIDq

    • Remove the green circuit board by dislodging the circuit it is attached to.

    • Unhook it and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
