Sony Vaio VPCEG26FX Fan Replacement

Geschrieben von: Sara Alfaro
  • Kommentare: 0
Sony Vaio VPCEG26FX Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

8 Minuten

Einleitung

In order to successfully complete this guide, please first follow the prerequisite guides. The fan will need to be replaced if the laptop gets hot to the touch while making a lot of noise or no noise at all. Be careful to not bend the copper heat pipe when removing the CPU cooler. The fan should lift off the motherboard without force.

  1. gKPMhY3pKCKYh445

    • Flip the laptop so the bottom is facing up with the model number visible.

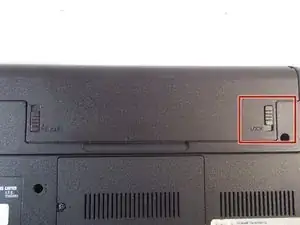

  2. rTw3D3mxKpVfCQPS
    rTw3D3mxKpVfCQPS
    H6biMIJUrE3WFxdB

    • Slide the lock switch down until you hear a click to unlock the battery.

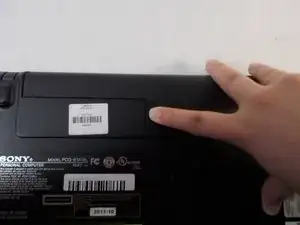

  3. 1gencIVpgfOs2Ioj
    1gencIVpgfOs2Ioj
    VpHWqMW2Rp4DaIIs

    • Slide the release slider up and simultaneously push the battery upwards away from the device until it falls out of place.

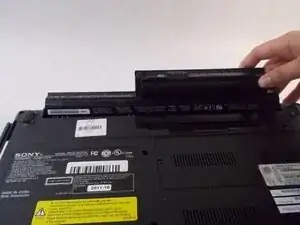

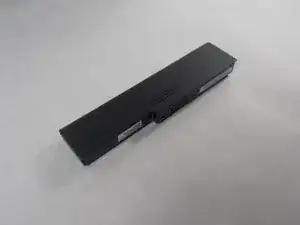

  4. HRPYK3SKBtahjViJ
    HRPYK3SKBtahjViJ
    pJg4AiagBpGfTgVR

    • Remove the battery from the battery compartment.

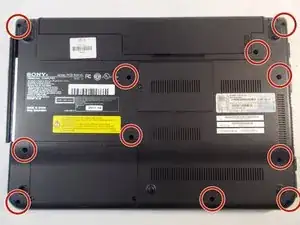

  5. 5SPJXRUxDkA6gIHe

    • Remove the remaining eleven 7mm screws from back panel using the JIS #0 screwdriver.

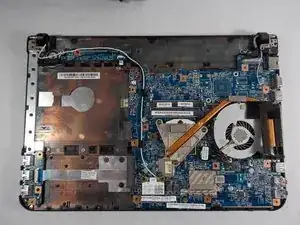

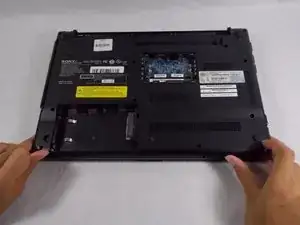

  6. IEILXxfAY51IpUaQ
    IEILXxfAY51IpUaQ
    o4Ry2pTTGSQBpX5y

    • Remove the back panel from the device.

  7. bQPlF1BqjASNu1b3

    • Remove the three 7mm screws attached to the fan using the JIS #0 screwdriver.

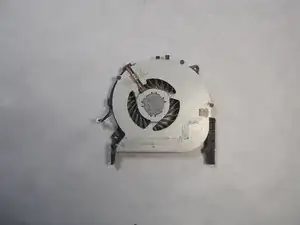

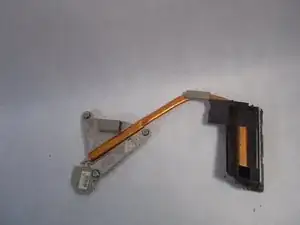

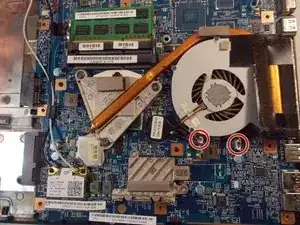

  8. 2at1yosOGMwVQM3F
    2at1yosOGMwVQM3F
    MZXuWyslCHXXTH6d
    TwSdOB63YHcA2ENb

    • Unplug and remove the Fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
