Sony Vaio VPCEG37FM RAM Replacement

Geschrieben von: Brayelly Servellon
  • Kommentare: 4
Sony Vaio VPCEG37FM RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 Minuten

Einleitung

  1. euvEGRG13FWHNO6P

    • Unlock the battery by sliding the lock upwards.

  2. jNXjyeCoD1f4TGJY
    jNXjyeCoD1f4TGJY
    fomrAfSfRhaFgbDn

    • Slide the release upwards and lift out the battery to remove.

    • Once battery is removed, long press the Power button for 30-60s and discharge any remaining power inside of the computer.

    • Put on the ESD bracelet, making sure the metal circle is touching your skin. Remove the alligator clip from the other end of the bracelet and insert the jack into the ground plug of an active electrical outlet. (the round hole). Do not move forward until you are grounded.

    After you have removed the battery, long press the Power button on the laptop for 30-60s and discharge any remaining power within the computer.

    Before you proceed to the next step you should be wearing an ESD bracelet. Remove the alligator clip from the bracelet and insert it into the ground plug in an active electrical outlet (the round hole). electro static can short your computer and its components. Its extremely important that you are grounded before you move to the next step.

    Heavy Pour -

  3. MmCidUihwcFfLf3j

    • Use a Phillips #1 screw to unscrew the 6.5 mm screw keeping the cover.

  4. BBalfuZaENYRKqn1

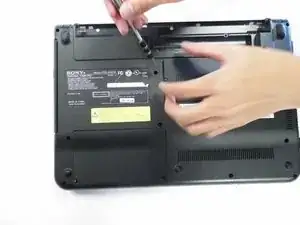

    • Gently lift cover up to expose the RAM.

    • Screw will stay attached to cover when being removed.

  5. Wnp2QtQSnCDfWJit

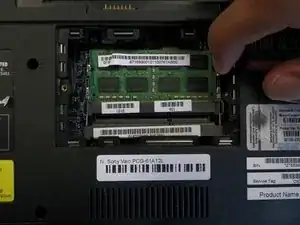

    • Pull the clips, holding the RAM in place, to the side to pop the RAM out. Then remove the RAM.

    • Avoid contact with black squares. Hand oils may damage memory.

    Never stick metal tools inside of the computer to depress/lift clips. Screwdrivers should only be used to screw and unscrew. You should be using Plastic Pry Tools or even plastic utensils.

    Heavy Pour -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Brayelly Servellon

Mitglied seit: 25/09/17

115 Reputation

2 Kommentare

This is exact model for my sony vaio. I upgraded ram from 4gb to 2× 4gb sticks (8gb). I was told by electronic store agent to use a faster stick (12800) instead of OEM (10600). Now laptop will not completely stay turned on, even when I go back to just the original 4gb OEM stick in original slot. Any help?

Dan Amaz. -

It is possible that you shorted out your computer. This tutorial does not explain the importance of removing the battery from the computer AND discharging the remaining power inside of the computer by holding the power button for 30-60s and most importantly, making sure you are wearing an ESD bracelet to a grounded connection. Static electricity most likely shorted the board. I would bring it to a professional.
