Einleitung

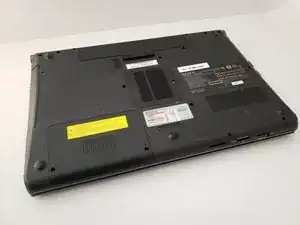

The main objective of this guide is to show the easiest way to remove the back panel. This guide will focus mainly on removing the screws along the back panel.
-
-

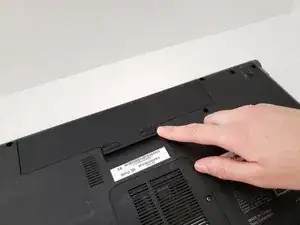

Unlock the left tab on the battery.
-

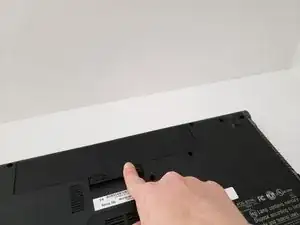

Glide the right battery tab to release the battery pack from the laptop.
-

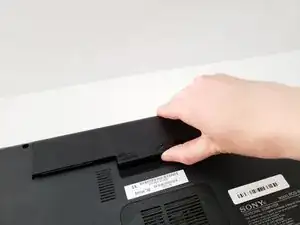

Keeping the battery tab in the released position, lift the battery up.
-
-
-

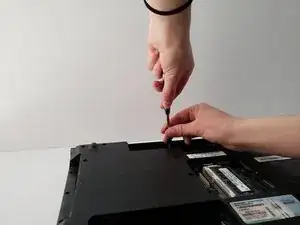

Remove the 9mm Phillips #1 screw located on the back cover.
-
Remove cover.
-
Push out metal tabs.
-
Remove card.
-
-
-

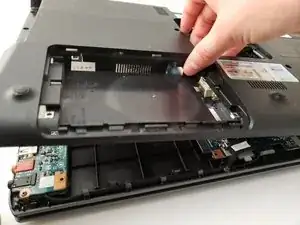

Remove the panel.
-
Gently remove the hard drive.
-
Remove screws securing caddy to hard drive.
-
-
-
Remove the 9mm Phillips #1 screw holding the disk drive in place.
-

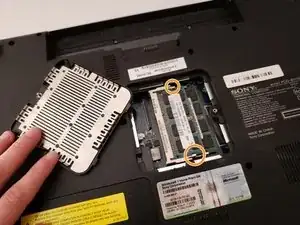

Remove the 9mm screw near the memory stick.
-
-
-

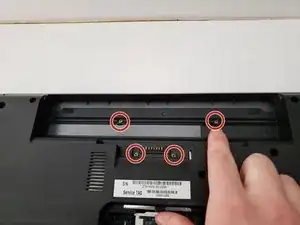

Remove the rest of the twelve 9mm Phillips #1 screws on the back panel.
-

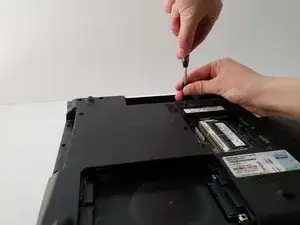

Remove the final screw.
-
-
-

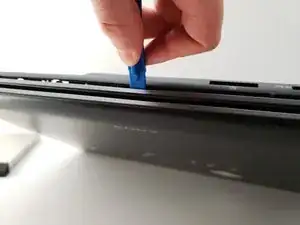

Using an iFixit opening tool, pry the back panel off.
-

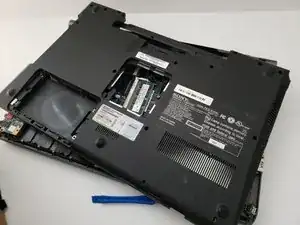

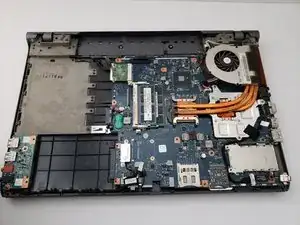

At this point, the back panel should very easily pop off.
-
Be careful around mechanical components on the edges of the laptop (audio output, USB ports).
-
To reassemble your device, follow these instructions in reverse order.
