Sony Vaio VPCW211AX Keyboard Replacement

Geschrieben von: Giselle Dougan
  • Kommentare: 0
Sony Vaio VPCW211AX Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to carefully remove the keyboard from your Sony Vaio.

  1. xl4jApZYgYpT2cy2

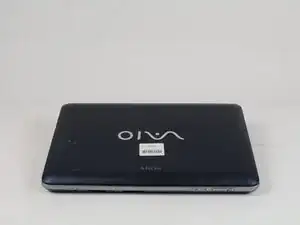

    • Start with the laptop face up on a flat surface.

  2. MNHKmKaEfiMoMxJN

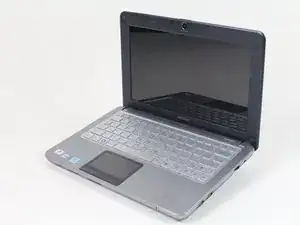

    • Open the laptop with the keyboard facing you.

  3. EnWyVcLIBsPMtQX3
    EnWyVcLIBsPMtQX3
    HM2FBTRlAH5fZTS3

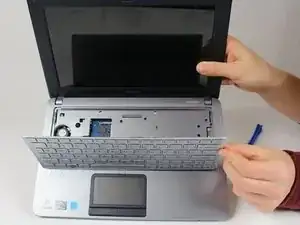

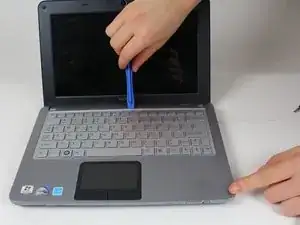

    • Use a plastic opening tool to pry up the keyboard. Start at the end closest to the screen.

    • Be careful around the edges; work your way around the keyboard until all of it is detached.

    • There will be a ribbon cable attached to the bottom of the keyboard. Be sure not to rip the cable when lifting the keyboard from the laptop frame.

  4. CjNYbIDrfjCssypE
    CjNYbIDrfjCssypE
    nQCPys5NSfopR62I

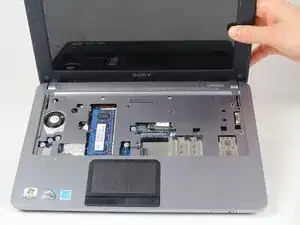

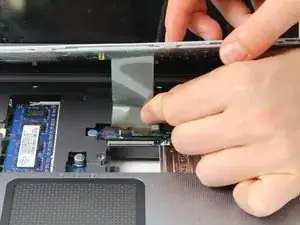

    • Carefully detach the ribbon from the base of the computer with your hands.

    • Remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
