Sony Vaio VPCW211AX RAM Replacement

Geschrieben von: Giselle Dougan
  • Kommentare: 1
Sony Vaio VPCW211AX RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

This guide will show you how to replace the RAM in your Sony Vaio laptop.

  1. xl4jApZYgYpT2cy2

    • Start with the laptop face up on a flat surface.

  2. MNHKmKaEfiMoMxJN

    • Open the laptop with the keyboard facing you.

  3. EnWyVcLIBsPMtQX3
    EnWyVcLIBsPMtQX3
    HM2FBTRlAH5fZTS3

    • Use a plastic opening tool to pry up the keyboard. Start at the end closest to the screen.

    • Be careful around the edges; work your way around the keyboard until all of it is detached.

    • There will be a ribbon cable attached to the bottom of the keyboard. Be sure not to rip the cable when lifting the keyboard from the laptop frame.

  4. CjNYbIDrfjCssypE
    CjNYbIDrfjCssypE
    nQCPys5NSfopR62I

    • Carefully detach the ribbon from the base of the computer with your hands.

    • Remove the keyboard.

  5. RkpnI4sUUyljOVD1

    • Use a Philips #0 screwdriver to remove the 7 top case screws.

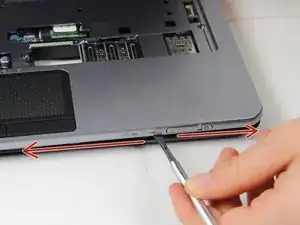

  6. vYfN2hIKb6TsL1BF

    • Using a metal spudger, pry open at the seams.

    • Open the gray top of the laptop from the base black portion.

    • Slide the spudger along the seam, and then carefully open the top.

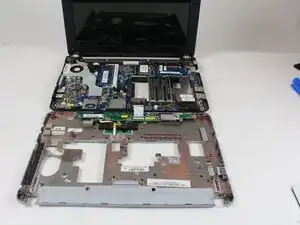

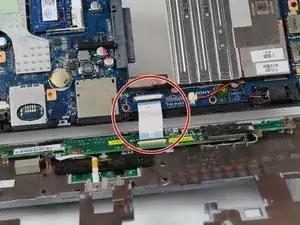

  7. 1psQD2Zk4ASeRfmG
    1psQD2Zk4ASeRfmG
    kHatjaLDOPTRAiIR

    • Open the top carefully without disconnecting the two parts.

    • Be mindful and careful of the ribbon cable attaching the two parts together.

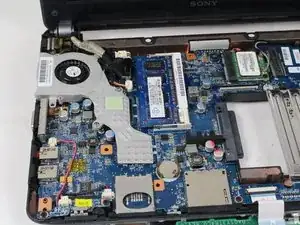

  8. S5CBPTN11uCBHIFI
    S5CBPTN11uCBHIFI
    UUiLXWS6DdsXPeqL

    • Using your fingers, pry apart the two side metal pieces that hold the part in place as shown on the picture.

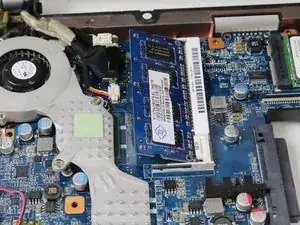

  9. trVYUaTtK6kR5Kwy

    • After that step, the RAM should pop up on its own as shown in the picture.

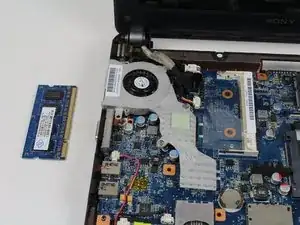

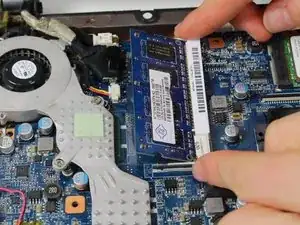

  10. hEiAa6EorRDqDT2d
    hEiAa6EorRDqDT2d
    LMnkFdW5NSVLpgcQ

    • Carefully press the sides near the right edge of the part and remove it from it's base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
