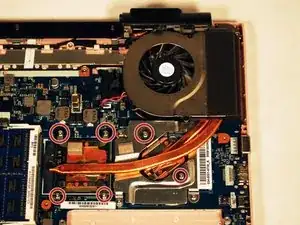

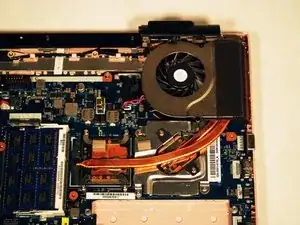

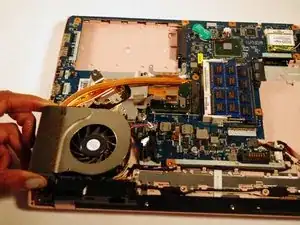

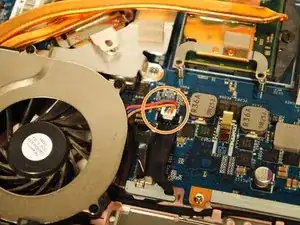

Sony Vaio VPCW21FX Fan Replacement

Geschrieben von: Summer

Kommentare: 5

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

This easy to follow replacement guide is helpful if your fan is making a funny noise or overheating.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

Make sure your device is powered off and unplugged to avoid electric shock.

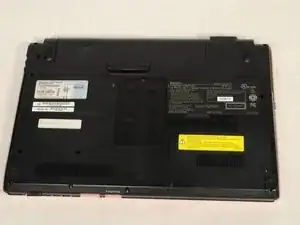

Place your device upside down with the bottom panel facing upwards.
Orient the device so the battery is away from you as shown

Schritt 2

Unlock the battery by sliding the lock switch to the right.

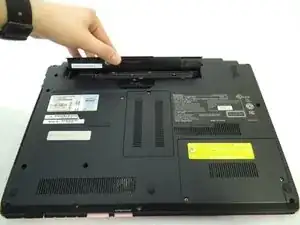

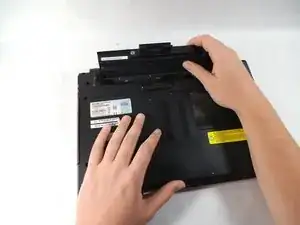

Locate the release latch. Slide the latch to the left to remove the battery from your laptop.
Be sure to lift up on the battery while you slide the latch to the left.

Schritt 4

Place the laptop upside down with the bottom panel facing upwards.

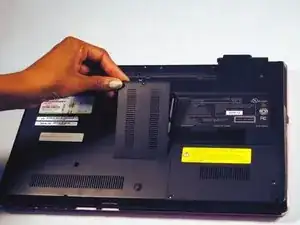

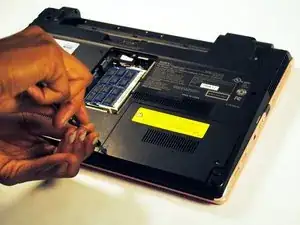

Locate the screw that holds the small panel covering your laptop's Ram. This panel should be in the dead center of your laptop.
Unscrew the screw and remove the panel.

Schritt 5

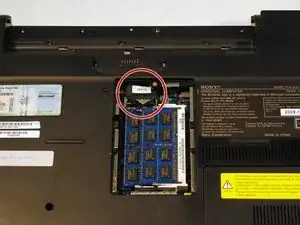

Before you move away from where your RAM is located, be sure to unplug the wire labeled To MB. If you do not unplug this, the back panel you are trying to remove will not come off.

How to unplug this? Do you just pull it up because mine wont budge

Miyu Saije - 06/09/19

The sliver part is actually a small tab use a spuger to pry the tab away from the locked position while pulling up on the black tab. Expect to use medium force

Tyler Williams -

Thanks, Tyler. Can you explain that in a little more detail? Not really getting it. Scared I'm going to break something, but need to fathom this step.

Robin Watson -

This has to be one of the most useful comments I've found online in several years! I've been trying to dedust my fanny VAIO for a couple of years, but have always been stumped as to why the bottom won't budge with all the screws removed! THANK YOU!!

Robin Watson -

Schritt 6

Next, locate the panel covering your laptop's hard drive. This panel should be located on the lower right hand side of your laptop.
Unscrew the cover on the hard drive.

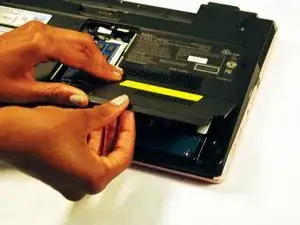

Remove the hard drive cover.

Schritt 7

Remove screws.
Remove screws and remove panel.

Schritt 8

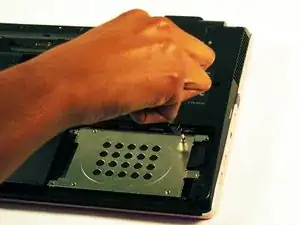

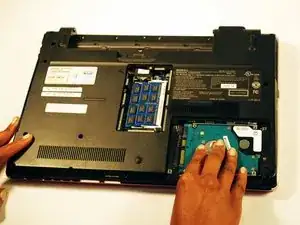

Remove the hard drive by gently pressing down on it and sliding it to the right.
Remember to have a clean work space to place the parts you take off your laptop. It'd be embarrassing to forget to reassemble a part or have a screw or two left over.

Schritt 9

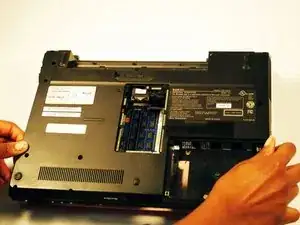

Remove the screws holding the rest of the outside panel down.

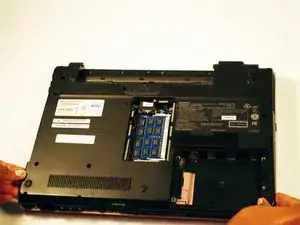

Gently lift the panel up to remove it once all the screws have been removed.

Schritt 10

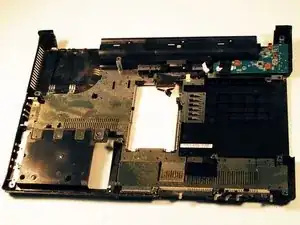

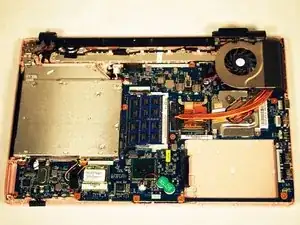

Once the back panel has been removed, set the rest of your laptop to the side and place the panel you just removed in front of you.

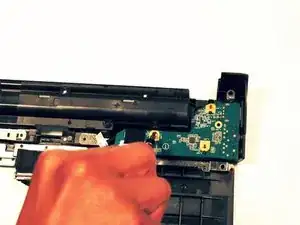

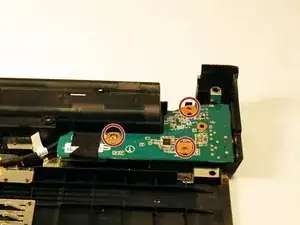

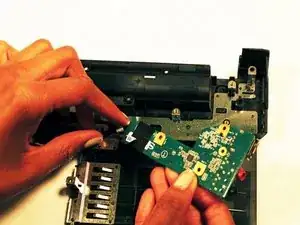

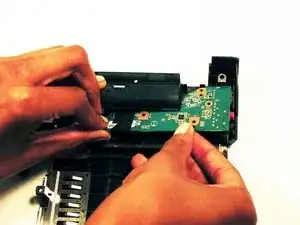

Locate the headphone jack, which will be in the top right hand corner of the panel. The headphone jack board is a bright green, you can't miss it.
