Sony Vaio VPCW21FX Screen Replacement

Geschrieben von: Summer
  • Kommentare: 0
Sony Vaio VPCW21FX Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

30 - 45 Minuten

Einleitung

Does your screen have cracks, pixelation, or is completely black? This step by step guide is here to help you replace it.

  1. Q32ejBfFDlyHnq4s
    Q32ejBfFDlyHnq4s
    wLbu1aCyDS6scfjq

    • Make sure your device is powered off and unplugged to avoid electric shock.

    • Open your laptop.

    • Remove the four screws on the frame.

  2. MTccOYx1byidnrMH
    MTccOYx1byidnrMH
    iiJTdCFZWTl3rQLm

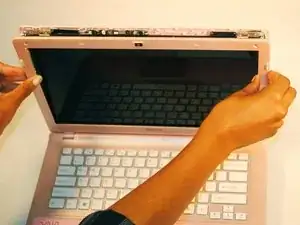

    • After all of the screws are removed, gently pull on the frame to remove it.

  3. DXuJG2ioqYYaU1DJ

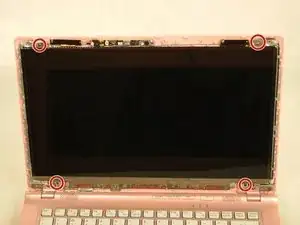

    • Unscrew the 4 screws located on the screen itself.

  4. PCVyRUN3XOYFcyUS
    PCVyRUN3XOYFcyUS
    syGfkNwuyyoGeGeQ

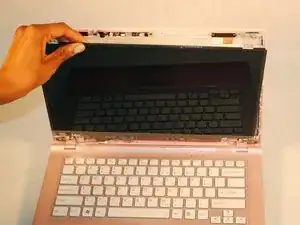

    • Gently lay the screen down on the keyboard.

  5. LjgB3ciirNKsaeo1
    LjgB3ciirNKsaeo1
    f53dKQjrevbB12eu
    hCbBgeyBjWoeNmWn

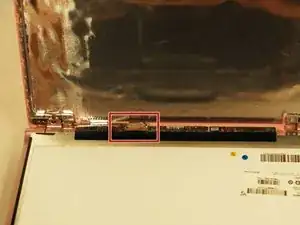

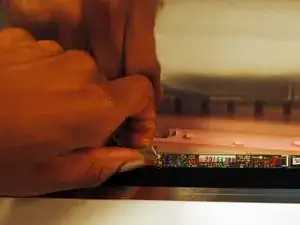

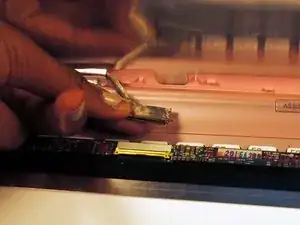

    • Detach the wire that is connected to the LCD screen by grabbing back of connector and sliding it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
