Sony Walkman NWZ-E438 Battery Replacement

Geschrieben von: Cheryl Zinn
  • Kommentare: 1
Sony Walkman NWZ-E438 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

  1. vQSb4sNqDikSihtU

    • Unscrew the two screws on the back of the device using a Phillips PH000 screwdriver.

    • Keep the Phillips PH000 screwdriver aside for further steps in the guide. It will be the only screwdriver needed for this replacement.

  2. l3UtXVHPL6KWviBn

    • Use a small prying tool to carefully pry open the back of the device.

  3. MqNYjmYQKV5rYemf

    • Peel back the black tape from the device to the battery from the side of the device.

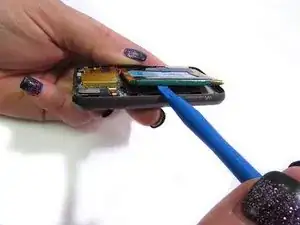

  4. Xkody3hVVPJVB3G1

    • Using a small, plastic prying tool slowly lift the battery around all edges.

    • Careful of wires connecting the battery to the device.

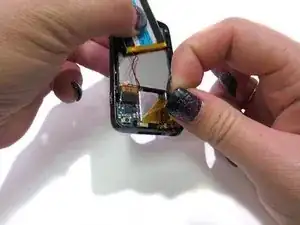

  5. JJYKnIhKuSXFpxwv

    • Remove the yellow film covering the circuit board with pointed precision tweezers.

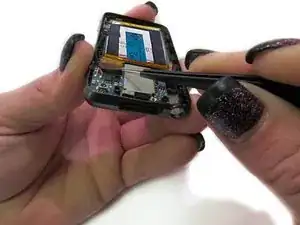

  6. M2LaNcICwhBILHCg
    M2LaNcICwhBILHCg
    OmTBkddQCQc6HXH2

    • Using tweezers, unplug the gold band connecting the device and circuit board.

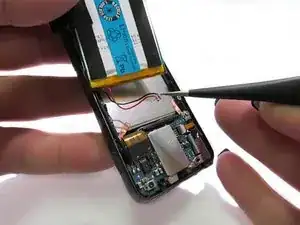

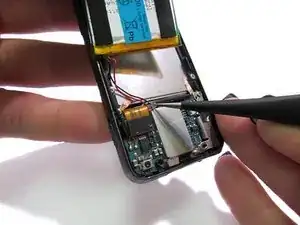

  7. A3gteYKvktouuiyL
    A3gteYKvktouuiyL
    XJCfrk6xdOrMgD6a

    • Using pointed precision tweezers, unplug the wires connecting the battery and chip from the chip.

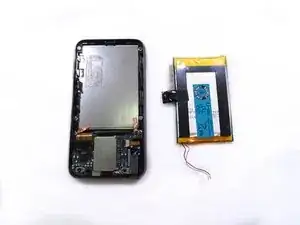

  8. hfUSsJL1eFsn1hiU

    • Remove battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
