Sony Walkman NWZ-E438 Device Circuit Board Replacement

Geschrieben von: Cheryl Zinn
  • Kommentare: 0
Sony Walkman NWZ-E438 Device Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

This guide will take you through 6 simple steps to removing your circuit board. For reattachment, simply follow the steps in reverse order.

  1. vQSb4sNqDikSihtU

    • Unscrew the two screws on the back of the device using a Phillips PH000 screwdriver.

    • Keep the Phillips PH000 screwdriver aside for further steps in the guide. It will be the only screwdriver needed for this replacement.

  2. l3UtXVHPL6KWviBn

    • Use a small prying tool to carefully pry open the back of the device.

  3. LEZiOw4FHA2b2KKI
    LEZiOw4FHA2b2KKI
    XCefNFinSV1bjWNp
    JNPYvS3PkqSLNMK5

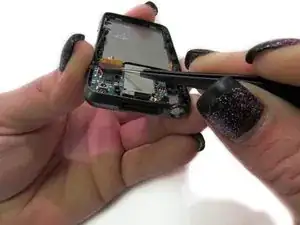

    • First, you must remove the black tape on the circuit board.

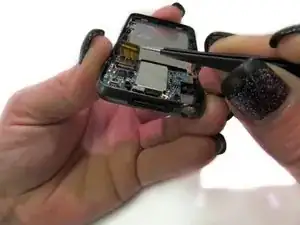

    • Next, pull up on the red and gold band until it detaches from the chip.

  4. WDnQ2QBFCsBbbTNH
    WDnQ2QBFCsBbbTNH
    MUgcooPNiLMcdJIW

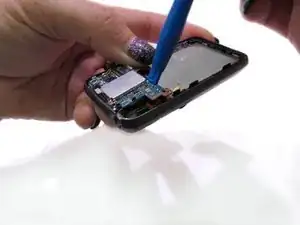

    • Using a small plastic prying tool, slip the end under the device circuit board and slowly lift it.

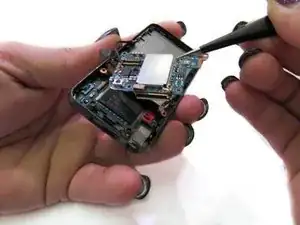

    • Once the circuit board is lifted, carefully remove the chip with tweezers.

    • The circuit board will still be connected to the device by a wire.

  5. 5IZdVPBffQZYpE1B

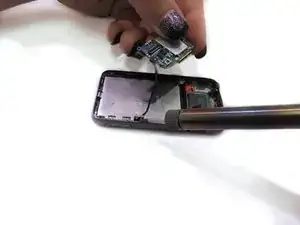

    • Using a soldering iron, carefully heat the metal connecting the wires from the device to the circuit board.

    • You will need the soldering iron to reattach those wires once you've replaced the circuit board.

  6. DUEpZti3btdxPsCD

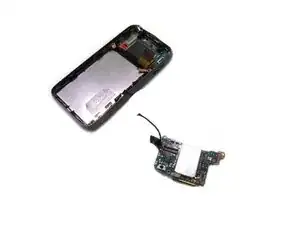

    • Carefully remove the circuit board from the device.

Abschluss

For reassembling your device, follow the instructions in reverse.
