Sony Walkman NWZ-E438 Headphone Jack Replacement

Geschrieben von: Cheryl Zinn
  • Kommentare: 2
Sony Walkman NWZ-E438 Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. vQSb4sNqDikSihtU

    • Unscrew the two screws on the back of the device using a Phillips PH000 screwdriver.

    • Keep the Phillips PH000 screwdriver aside for further steps in the guide. It will be the only screwdriver needed for this replacement.

  2. l3UtXVHPL6KWviBn

    • Use a small prying tool to carefully pry open the back of the device.

  3. ljnYJg3oHLGdWaxh

    • Unscrew the 1 screws around the headphone jack using Phillips PH000 screwdriver.

  4. X2Ooxt4ERn4IWhPG
    X2Ooxt4ERn4IWhPG
    k566ywP2op1juBuw

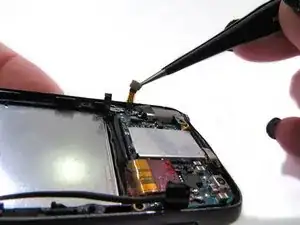

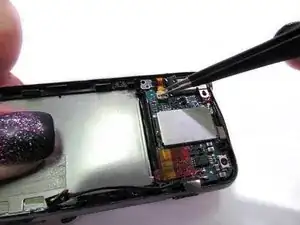

    • Using the fine pointed tweezers, unplug the cords connecting the headphone jack to the chip.

  5. 3BVIwT63Ka3tUXst
    3BVIwT63Ka3tUXst
    kBcD2nZdcVBDXJtF
    vBbG2xGkQBiBydyg

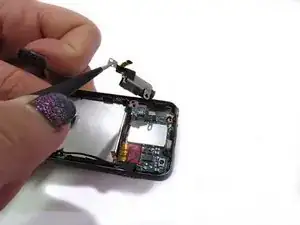

    • Remove the headphone jack.

Abschluss

To reassemble your device, follow these instructions in reverse order.
