Sony Walkman NWZ-S764 Frame Replacement

Geschrieben von: John Ferguson
  • Kommentare: 0
Sony Walkman NWZ-S764 Frame Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

Prerequisite Only

  1. pSdpajcdH5KuX42K
    pSdpajcdH5KuX42K
    UVoYIKgBdWfrmDOy
    WOJLI1iGa5TEVCLJ

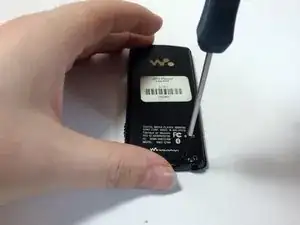

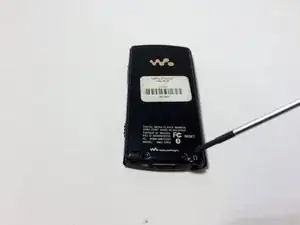

    • Remove the two black 6.4mm Phillips screws from the back of the device.

  2. qNHM6WUJ1JHx2OGl
    qNHM6WUJ1JHx2OGl
    MEF2HQ6IMiTkAkph
    1Enf5jMAxAuoN2xj

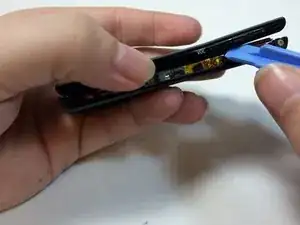

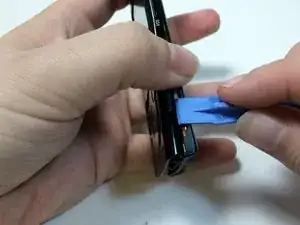

    • Using a plastic opening tool, work your way around the edges of the device, carefully prying off the front panel.

  3. 1UvFvSsR2PcSdkIJ
    1UvFvSsR2PcSdkIJ
    MfxI1LssAUe5NIqX

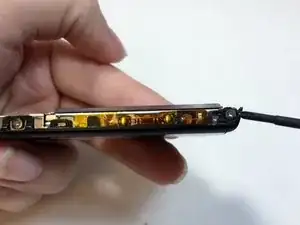

    • Remove the two 2.8 mm phillips screws located on either side of the device near the top.

  4. DKRWC6n2yEZOf6PJ
    DKRWC6n2yEZOf6PJ
    PgbxJcseCOgZrCh2

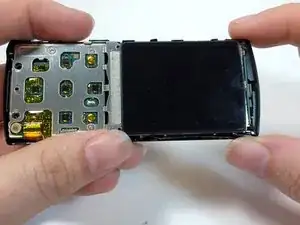

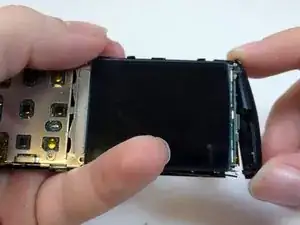

    • Carefully pull the top piece away from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
