Einleitung
If you are unable to hear any kind of audio on your Sony Walkman, it is possible that you may need to replace the headphone jack. This can be a little tricky for this particular model, but not impossible. To do this, you will need a spudger and a soldering iron.
Werkzeuge
-
-

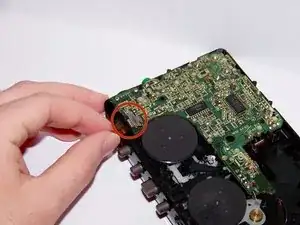

Gently pull the ribbon from the jack just above the film revolver, near the edge.
-

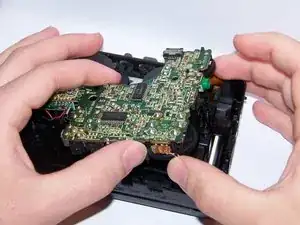

Carefully lift the motherboard out of the outer shell.
-
-
-
Locate the four metal points on the motherboard that hold the headphone jack in place.
-

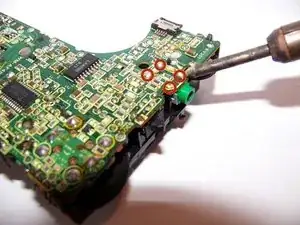

Using a soldering iron, remove the headphone jack by de-soldering the four points that hold it in place.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
