Sony Walkman WM-AF48 Power Switch Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

15 - 30 Minuten

Einleitung

If your Walkman will not turn on and you are certain that the batteries are new or fully charged, you may need to replace the device's power switch. To do so, you will need a spudger and soldering iron.

  1. ByFDYXC4ueBLNTXM

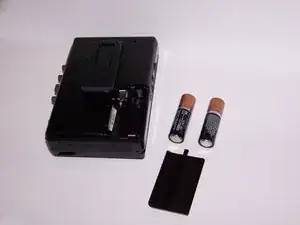

    • Remove any batteries or cassettes from the Walkman.

  2. XFRIV2NQjQpSRYTe
    XFRIV2NQjQpSRYTe
    ZLQ4TLx5ZDhvg1a1
    TY5UTSalq1LwaS1A

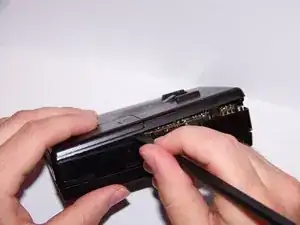

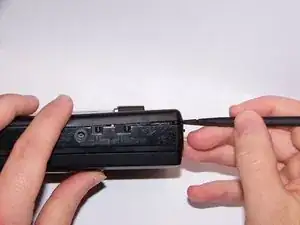

    • Using a spudger, separate the back cover from the front.

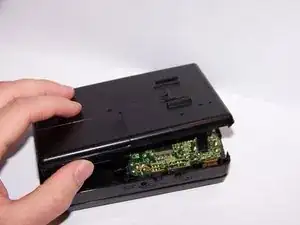

    • Remove the back cover evenly on all sides. The best method is to insert the spudger and gently twist it slightly to separate the two parts, slowly working your way around the entire outer shell.

  3. ElDchteRgsjKGnOa
    ElDchteRgsjKGnOa
    IWjKidavAV11W16T

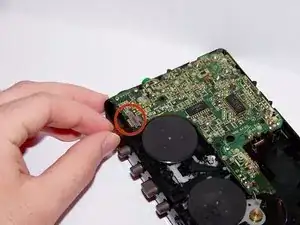

    • Gently pull the ribbon from the jack above the film revolver, near the edge.

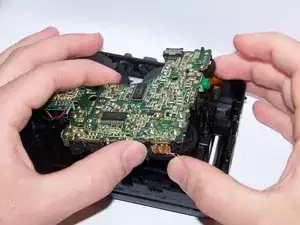

    • Lift the motherboard from the outer shell.

    • Be careful to only handle the motherboard by the edges. Avoid touching the metal parts.

  4. ARJhLSbKOUQMML3F

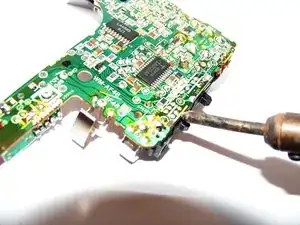

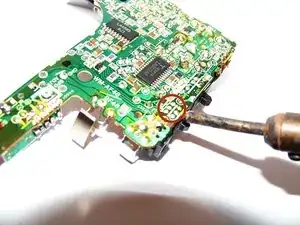

    • Identify the six points where the power switch is soldered to the motherboard.

    • Using a soldering iron, remove the switch by de-soldering these points which hold it in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
