Sony XAV-AX100 Display Board Replacement

Geschrieben von: Abdulaziz Redha
  • Kommentare: 2
Sony XAV-AX100 Display Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

50 Minuten

Einleitung

By following this repair guide, you will be able to replace your Screen Motherboard. Therefore, your device will take less time processing high resolution images and information.

  1. xsmMKycf52xfUZOH
    xsmMKycf52xfUZOH
    dFGauf4WlttbqBPF
    CUFGa2VZkGe2TW5Q

    • Place the device on a flat surface, upside down, so the bottom of the screen would be facing upwards.

    • Remove the ten 3.5mm Phillips #0 screws from the back plate.

  2. B2GFcRl3GaI5a3Yk
    B2GFcRl3GaI5a3Yk
    bL2CJSZAlKgp4Rxb

    • Use a plastic opening tool to remove the back plate.

    • Don't remove completely as there will still be cables connected.

  3. 5RPDNuHstMwktSKN

    • Disconnect the USB cable from the display board.

  4. qaPKP6hHdmZvxAdK

    • Adjust the rubber holders that are keeping the USB cable still on the motherboard, so you can remove the cable entirely from the inner compartment.

    • The rubber holders are extremely sensitive to any applied force. Therefore, be careful while turning them around.

  5. r4JkgkMCpNMhhKS2
    r4JkgkMCpNMhhKS2
    AdvJpMRSHQSQhURQ
    ZrPvVqJlJM5wgwC1

    • Remove the 3.5mm Phillip #0 screw that secures the USB cable to the back panel.

    • Pull the USB cable off of the back plate.

    Our radio is not interfacing with my phone it says USB connection problem before I tear it all apart what else could it be thank you

    Don Bartolotta -

  6. uYsOJ5qGYQqGHBKh
    uYsOJ5qGYQqGHBKh
    GCsQFgZJuEUlY1fL

    • Disconnect the display power cable from the motherboard.

    • Use a spudger to flip up the retaining flap on the display ribbon cable ZIF socket.

  7. XxvsfqcPdKU1OPdB
    XxvsfqcPdKU1OPdB
    ad2LxjmRScpmXQdu
    UFTNKRsnOogdDDLm

    • Unscrew the four 3.5mm Phillips #0 screws from the motherboard.

    • Use a spudger to gently lift the motherboard up and out of the radio.

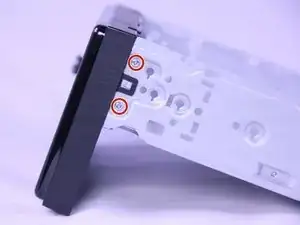

  8. tYYtqC1iPJCqNisg

    • Remove the four 3.5mm Phillips #0 screws from the sides of the display.

  9. TZUW1KsCpDn3A6Z2

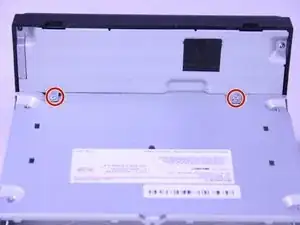

    TZUW1KsCpDn3A6Z2

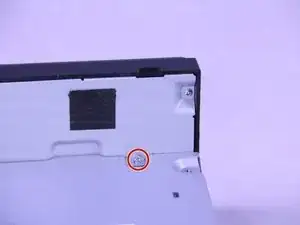

    YZXaLC6Bma3PC3lY

    • Remove two 3.5mm Phillips #0 screws from the back of the head unit.

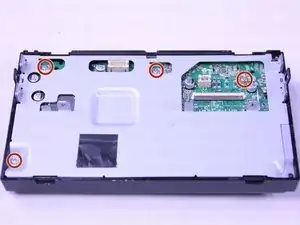

  10. xgS1RNYrRjaANBJc
    xgS1RNYrRjaANBJc

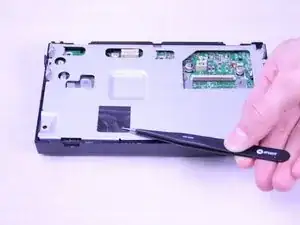

    XYQ56DhC4hIBfhP1

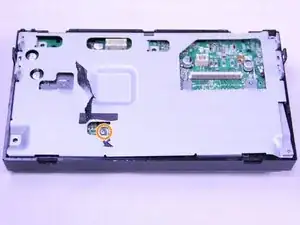

    AEZyCEW5h3UFZmb1

    • Remove the four 3.5mm Phillips #0 screws from the display board.

    • Remove the black tape using a precise tweezer.

    • Remove the 3.5mm Phillips #0 screw from underneath the tape.

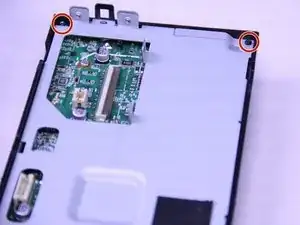

  11. yp1HJnaWXjrjkPGP

    • Remove the two 2mm Phillips #0 screws from the back plate.

    • Remove the back plate.

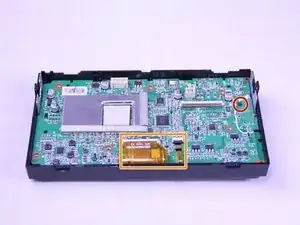

  12. EY5PAXCCpKIWrGwu

    • Remove the single 2mm Phillips #0 screw from the motherboard.

    • Use a spudger to flip up the retaining flap on the display ribbon cable ZIF socket.

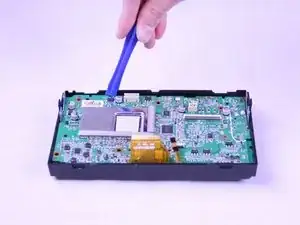

  13. uTMpCbX426QBfa3R

    • Use a plastic opening tool to remove the display board from the radio.

Abschluss

To reassemble your device, follow these instructions in reverse order.
