Sony XPERIA Tablet Z Micro USB Port tauschen

Geschrieben von: Martin Luna
  • Kommentare: 16
Sony XPERIA Tablet Z Micro USB Port tauschen

Schwierigkeitsgrad

Mittel

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

Tausche den USB-Port deines Sony Xperia Tablet Z aus.

Bei dieser Reparatur wird beschrieben, wie du in wenigen Schritten den USB-Port deines Sony Xperia Tablet Z durch einen neuen Port austauschen kannst. Insbesondere wird gezeigt, wie du das Tablet öffnest und wo sich der USB- und Lade-Port deines Sony Xperia Tablet Z befinden.

  1. blfFqfSnHVlucJGI
    blfFqfSnHVlucJGI
    4MO4eEXINmanqNAE
    vijeYxKMxvx4K2sD

    • Du benötigst folgende Werkzeuge: einen Kreuzschlitz-Präzisionsschraubendreher #00, Öffnungswerkzeuge aus Kunststoff und eine Pinzette.

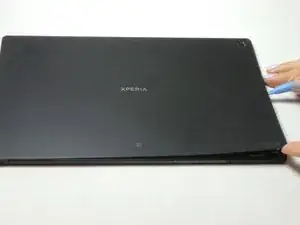

    • Stecke das Öffnungswerkzeug aus Kunststoff in die Ecke des Geräts und schiebe es entlang der Kanten, um den Kleber zu durchtrennen.

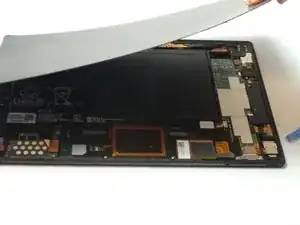

    • Entferne die Abdeckung.

    Great thanks saved me from buying a new tablet

    Martin Lb -

  2. ZHBePxKL6XTijwx6
    ZHBePxKL6XTijwx6
    Nm2OvoAYgEietXF1
    foMER4wu3H2QYIJS

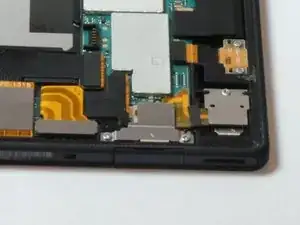

    • Entferne die beiden Schrauben unten links am Gerät, mit denen die Metallplatte am USB-Anschluss befestigt ist.

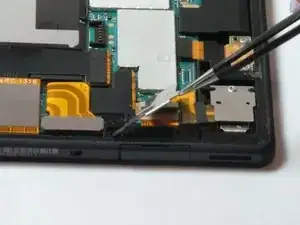

    • Entferne das Metallplättchen.

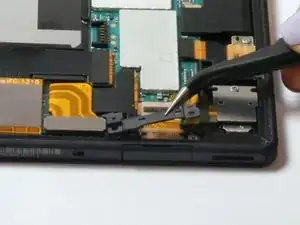

    • Entferne das Kunststoffteil, das den USB-Anschluss sichert.

  3. j4OQ2ZNLoxnTvf6y
    j4OQ2ZNLoxnTvf6y
    vQRBAhr5GeT4K6ZP
    ZsBiSorQeADRPapj

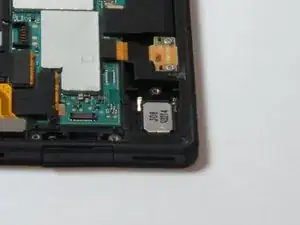

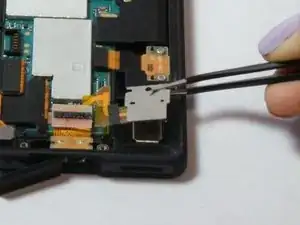

    • Entferne die Schraube mit dem Schraubendreher und hebe die Metallplatte mit der Pinzette an.

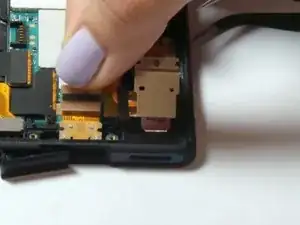

    • Hebe das linke Ende des Isolierbands an.

    • Hebe es an, um den USB-Stecker aus der Halterung zu entfernen.

    Before fitting the new charging port look on the reverse side of the part for the ‘lego’ style connector. Be aware when refitting that this needs to fully click home to the main board.

    Once the USB port is in place and the connector clicked home fit the single screw to the right.

    Now check the tablet is charging (remember to wait for 10 to 15 seconds for the red light). If you don't get a light check the connector is fully engaged.

    Once you are happy it is charging disconnect the micro USB cable and refit the plastic and the metal charging port retainer (2 screws).

    Check it still charges okay, if so refit the back (the existing glue should be okay for normal use - however it is now obviously not got any water resistance )

    Rory Clements -

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.
