Sony XPERIA Tablet Z Motherboard Replacement

Geschrieben von: Jasminh Schelkopf
  • Kommentare: 0
Sony XPERIA Tablet Z Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

1 Stunde

Einleitung

Use this guide to replace the motherboard of the Sony XPERIA Tablet Z.

This guide will take you through the process of removing the back panel, disconnecting the various parts attached to the motherboard, and replacing the motherboard.

  1. a31S1HZMYs4oiC41
    a31S1HZMYs4oiC41
    GX1c4fRfMLIyrRLE
    Q5IgGCGPi3xiPMga

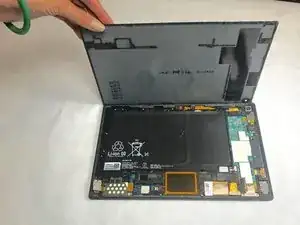

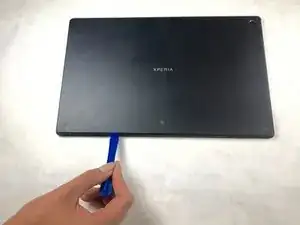

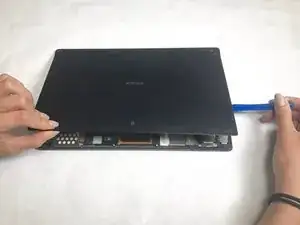

    • Remove the back cover by using the plastic opening tools.

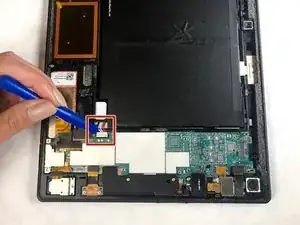

  2. x23QdmQKOxwJ4TSJ
    x23QdmQKOxwJ4TSJ
    PbNYyvMCCVFcbRYn

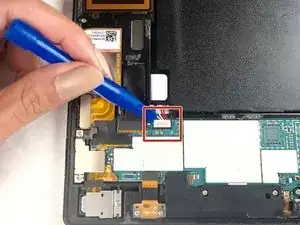

    • Disconnect the battery by lifting the connector straight up from the motherboard with a plastic opening tool or equivalent.

    • Do not pry on the wires. Only pry up on the white plastic part of the connector that is closest to the battery itself.

  3. irrrlVErmQyGHsdi
    irrrlVErmQyGHsdi
    a6OQr1gRTbHJMMGY

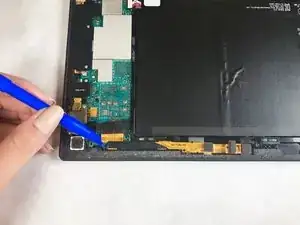

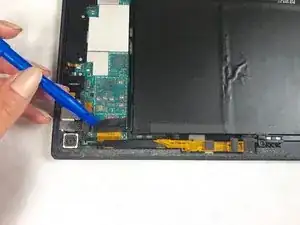

    • Pry up the tape and ribbon cable connector for front facing camera.

    • Remove front facing camera and cables.

  4. tLEMPqhxrQCO1eRP

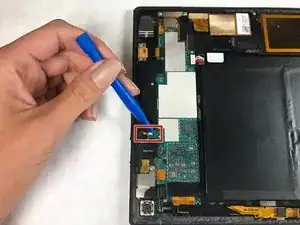

    • Slide the ribbon cable out of motherboard.

    • This cable is the only one in this guide that slides out from the motherboard in a motion that is parallel to the motherboard.

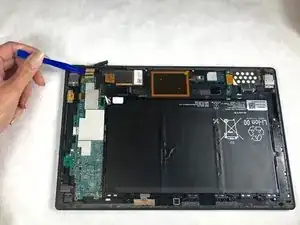

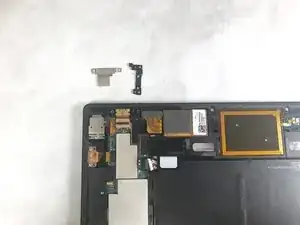

  5. 4UToV1gjRCWCvGMx
    4UToV1gjRCWCvGMx
    FqdWeGYLQRDRMrEW
    kwrJX2DR22MTWrcI

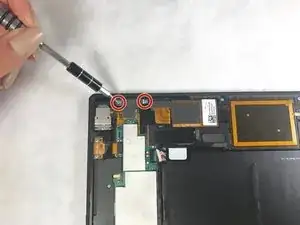

    • Use a Phillips head #0 screwdriver to remove the 3.06 mm screws from the Micro USB retaining plate.

    • Remove the cover plates.

    • There is plastic plate and a metal one.

    • Remove the USB port partially from its position. It can stay connected just moved out of the way.

  6. YVdNKUAFvJcyCnBB
    YVdNKUAFvJcyCnBB
    ZZVMEBgr2RFShxEN

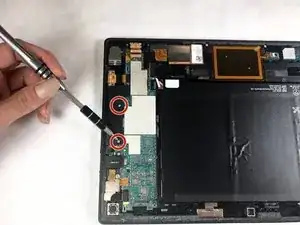

    • Use a Phillips head #0 screw driver to remove the 3.43 mm screws on the volume control retaining plate.

    • Remove the volume control.

  7. yBIt2bNPTy5msRTN

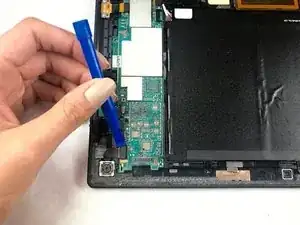

    • Lift up the connector for the rear facing camera.

    • Remove the rear facing camera.

  8. Wpwb3NpLhtPWBgSb
    Wpwb3NpLhtPWBgSb
    rwuosoMSVNq45ebR

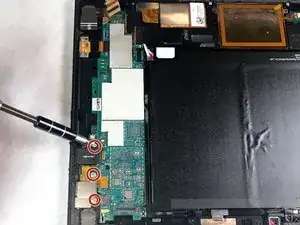

    • Use a Phillips head #0 screwdriver to remove the 3.43mm cover plate screws for headphone port, power button, and status LED assembly.

    • Remove headphone port, power button, and status LED assembly cover plate.

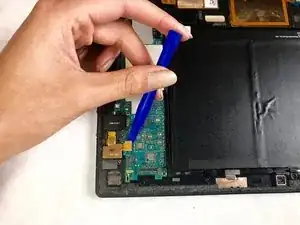

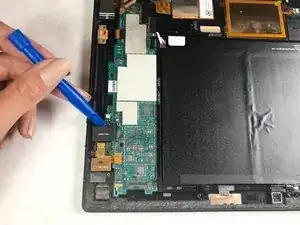

  9. uMd1reQCuVUjM5Bu
    uMd1reQCuVUjM5Bu
    TjGwgLRImMKuSFF1

    • Disconnect the connectors for the headphone port, power button, LED from the mother board.

    • Remove the headphone port, power button, and LED from the mother board.

  10. GhXmorLyN51QASvj
    GhXmorLyN51QASvj
    VJNFcPOXRSvW5GrJ
    Xn6Iph1bOkFKq5an

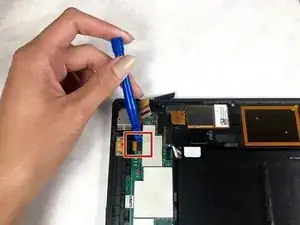

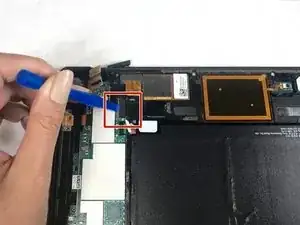

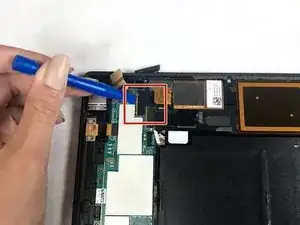

    • Disconnect the 3 ribbon cable connectors from the mother board near the USB port and speaker.

  11. cIjLpCij1H4eS2li

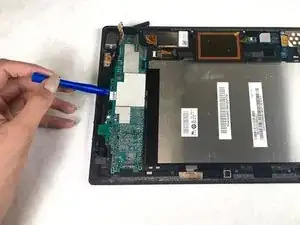

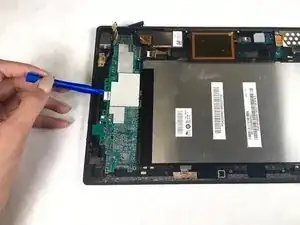

    • Remove the motherboard by gently prying up. Once it is loosened from the adhesive you may need to slide it away from the battery while lifting.

Abschluss

To reassemble your device, follow these instructions in reverse order.
