Einleitung

  1. owZuSgus6FNQyVlQ
    owZuSgus6FNQyVlQ
    HY4YrYglrNHYj1PR
    MOWNcsfgRqTJYppK
    • Tools you will need is the Phillips #00 precision screwdriver, Plastic Opening Tools, and tweezers.

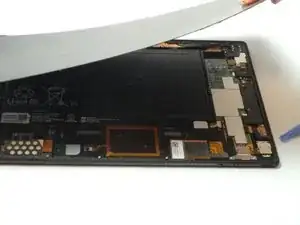

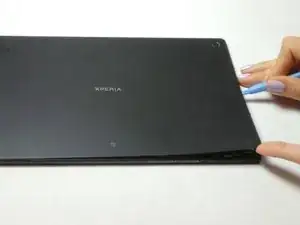

    • Insert plastic opening tool in the corner of device and slide along edges to separate adhesive

    • Remove cover

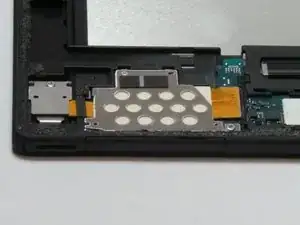

  2. JCGkQwHiSTWWUVST
    • Locate the SD card reader in the bottom left hand corner

    • Remove all screws connecting the metal plate to the device.

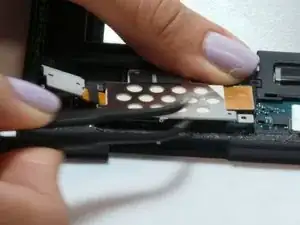

  3. HhB51abJKDFwuMGm
    • After all the screws have been removed lift the circuit board up to wiggle free.

  4. EErDdFBVY5jyV63p
    • After Wiggled free place the tweezers on the piece of electrical tape connecting it to the device.

    • Once placed there lift up and disconnect the SD card reader from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
