Sony XPERIA Tablet Z Speakers Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace the speakers in your Sony XPERIA Tablet Z.

In this device there are two speakers each located in a bottom corners of the tablet.

This guide will take you through the process of removing the back cover, removing the retaining plate, and removing the speaker.

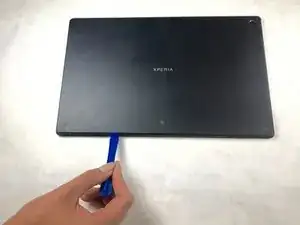

  1. EKdIKIMPrSITEdSB

    • Place the plastic opening tool in the corner of the device.

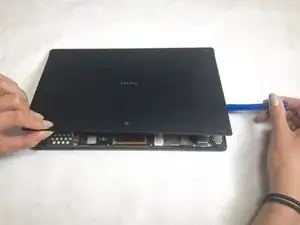

  2. LqyVVKA5EXOaZPXM

    • Slide the plastic opening tool along the edge of the device removing the adhesive.

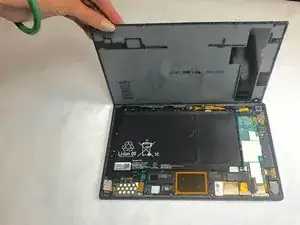

  3. Mye26M1dX5phrVO6

    • Remove the back cover.

    • Clean the adhesive off the inside perimeter of the device.

  4. vXiKXEED1SGjCOLb
    vXiKXEED1SGjCOLb

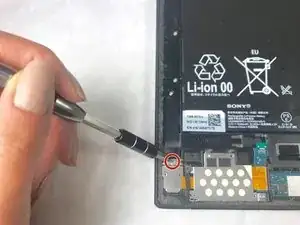

    QaB5IiCffOYQHI41

    • Remove the 2.96mm long Phillips head #0 retaining screw from each speaker.

    • Lift off the silver speaker retaining plate.

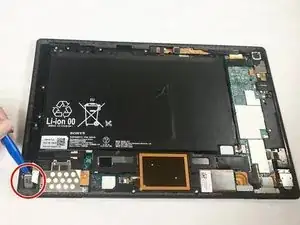

  5. tyjJuoVvG3iViE2G

    • Using the plastic opening tool, gently lift the speaker out of place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
