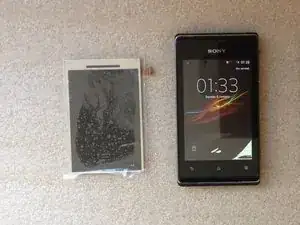

Sony Xperia E C1505 C1504 LCD Display Replacement

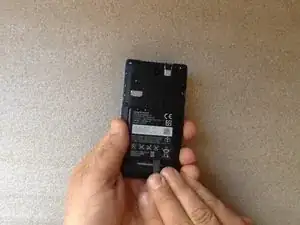

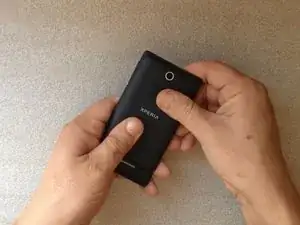

Switch-off the phone and remove the battery.

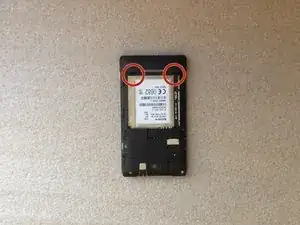

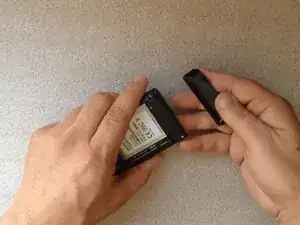

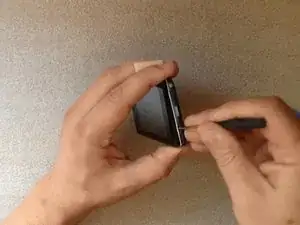

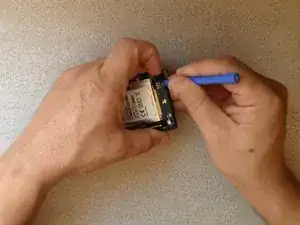

The small bottom bezel is held by 2x locking clips.

Preferably use plastic tools for disassembling.

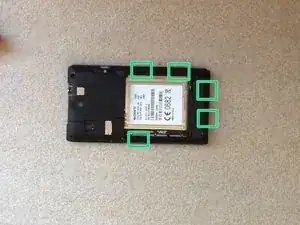

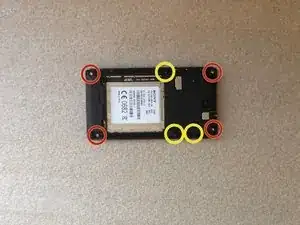

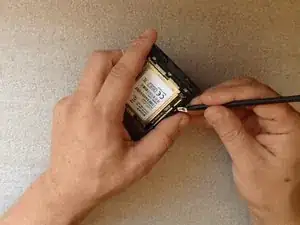

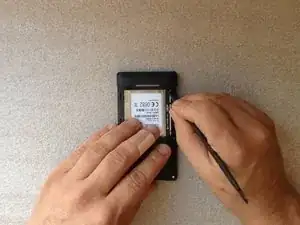

There are 4x silver screws and 3x black screws.

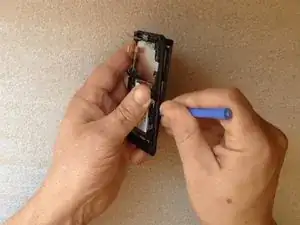

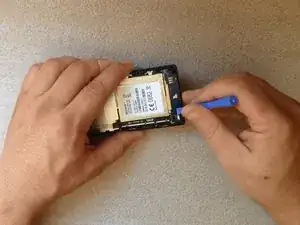

The rear cover is held by 5x locking clips.

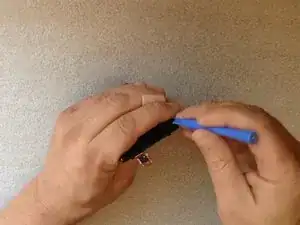

Two of them, at the bottom side are more hard for unlocking. You can use a screwdriver or other metal tool to unlock them.

Remove the back cover.

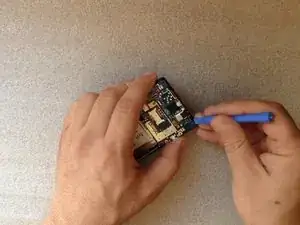

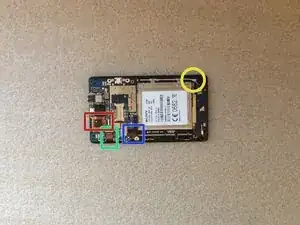

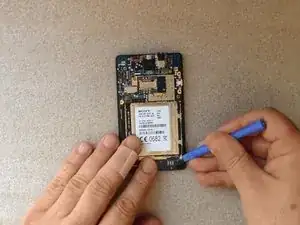

With a plastic tool disconnect one by one:

LCD Display flex cable

Touchscreen flex cable

Menu Buttons Board flex cable

Coaxial Wire Antenna cable

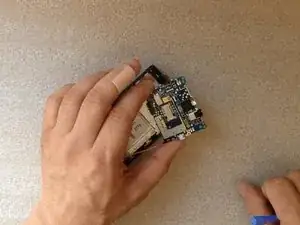

Carefully remove the main board.

Disconnect the other side of the flex cable and remove the Home Buttons board.

Unstick the camera button.

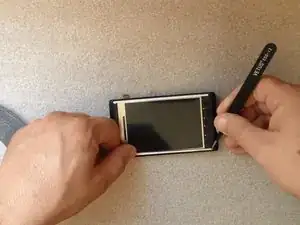

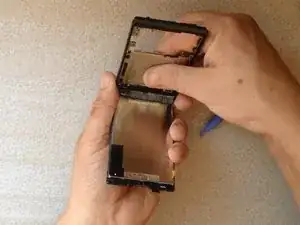

The touch screen is stuck to the frame with double side adhesive tape.

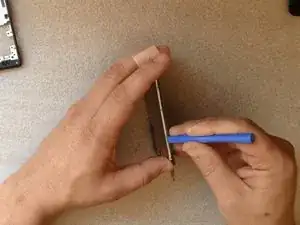

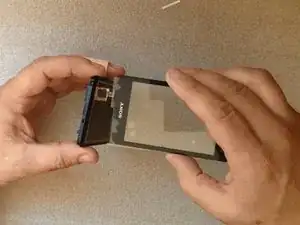

By using plastic tools gently start separating.

At the bottom is glued on firmly because the bonded surface is larger.

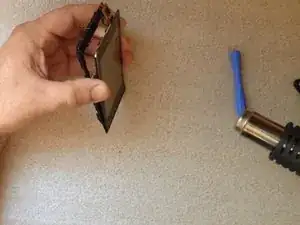

Use a hot air to make separating more easy and safety.

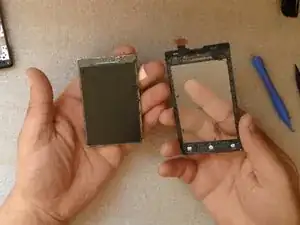

With a plastic tool, carefully separate the LCD display from the touch screen.

Clear the LCD Display from the old adhesive tape.

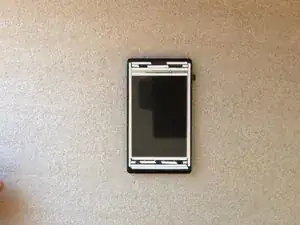

Install the new LCD into the frame and put adhesive tape. Be careful not to cover the holes (for the speaker, menu buttons etc.).

Install the Touchscreen.

To reassemble your device, follow these instructions in reverse order.

.
