Sony Xperia E1 Touch screen Glass, LCD Display, Loudspeaker, Earpiece Replacement

Geschrieben von: ZFix
  • Kommentare: 2
Sony Xperia E1 Touch screen Glass, LCD Display, Loudspeaker, Earpiece Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

Sony Xperia E1, Dual, D2004, D2005, D2105 - how to disassemble the phone and change the Digitizer, LCD Display, Loudspeaker, etc.


___________________________ Video tutorial: ___________________________

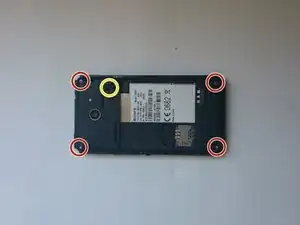

  1. olyt2Q6klmEwEeNI
    olyt2Q6klmEwEeNI
    g6wXJK6BuHavgtqi
    TvlSCHSdUEXwSJxS

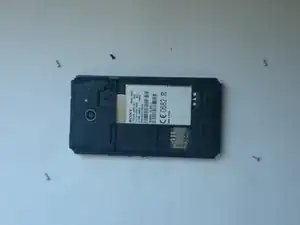

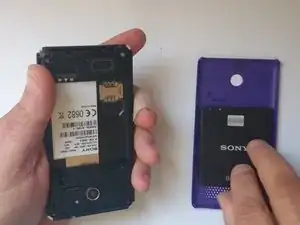

    • Turn off the phone, remove the battery, SIM card and micro SD card.

    • The screws are Torx T4. One of them, near the microSD card reader is different.

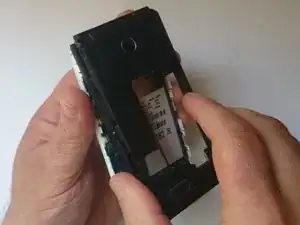

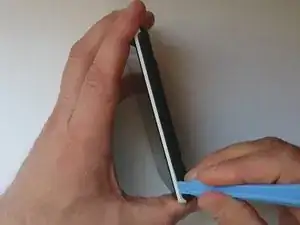

  2. IOJ1Ha1FrHCsDTQP
    IOJ1Ha1FrHCsDTQP
    tF5aHdPeolFLHmIo
    DDcUXMMk2kFoIefD

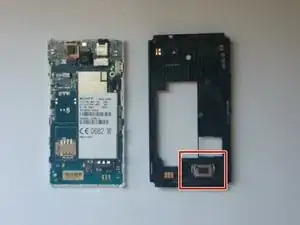

    • Use a plastic tool to remove the middle frame.

    • Loudspeaker

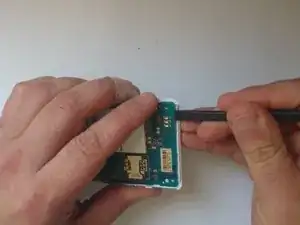

  3. qfRckuKo1cHlt6du
    qfRckuKo1cHlt6du
    EbyGT3im3FCMPa5y
    DcGftvIva6UHGeOJ

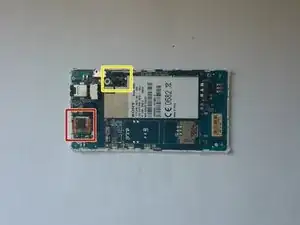

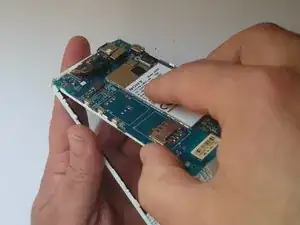

    • Touch screen flex cable. Disconnect it.

    • LCD Display flex cable. Open the connector.

    • The logic board is held to the display frame by several plastic locking clips. Use a plastic tool to remove it.

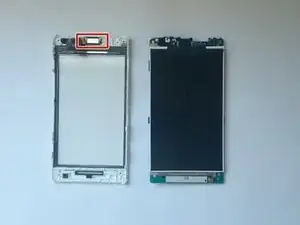

  4. y1lpvlqIrBlCFIFR

    • Earpiece.

  5. GHWuiZSLpXHgpH6r
    GHWuiZSLpXHgpH6r
    Sboi15tn5F6YEFBF
    RE2g53sSMYC1QbMK

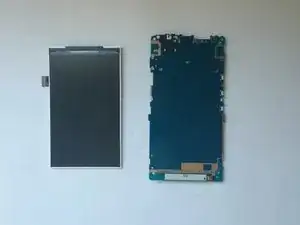

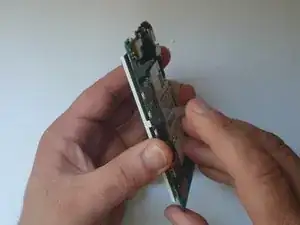

    • Release the LCD display from the main board.

  6. noujkKjCWRdLsZAf
    noujkKjCWRdLsZAf
    GJxDbQBHBHdTL6xC
    ZZXUqnCm1uYXLUiS

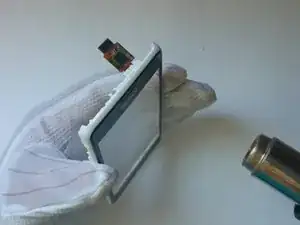

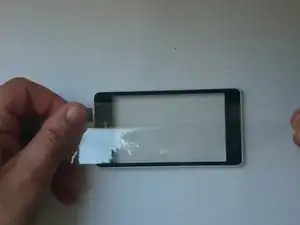

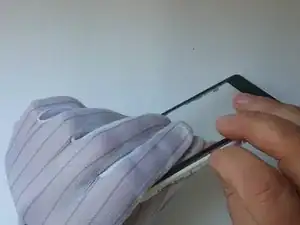

    • If the glass is broken, put some scotch tape to prevent it from breaking to pieces.

    • Use a hot air to soften the adhesive tape.

    • You can use a hairdryer.

    • Start with separating at the middle, where the contact area is smaller.

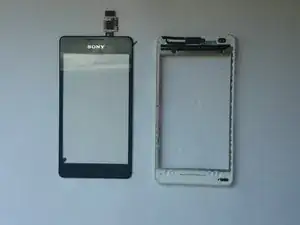

  7. mi1p2xyXWin54baS
    mi1p2xyXWin54baS
    nEchHsjlSMCL1qeA
    V1H3LjpfmI6IunAe

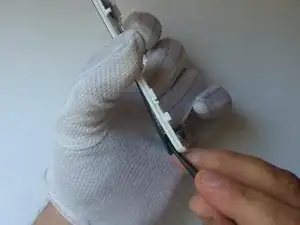

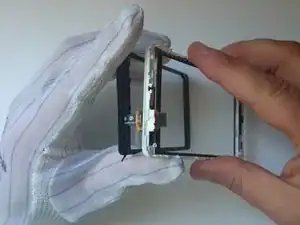

    • Use a plastic tool for separating the glass from the frame.

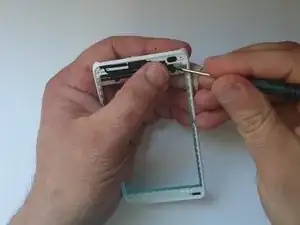

  8. xxDnJgs6PPwLZYJV
    xxDnJgs6PPwLZYJV
    afHbYBjxQSQ22SZl
    pF3KikYbkIEposbm

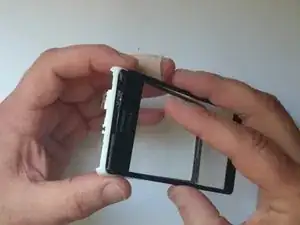

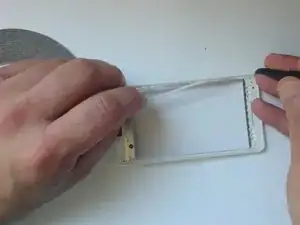

    • Clean the frame.

    • Put adhesive tape if the new spare part doesn't have any.

    • Be careful, don't cover the holes for the microphone, proximity sensor, etc.

    • Install the new Digitizer.

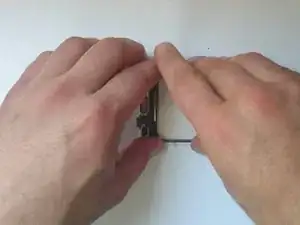

  9. wAFG3MBSfCuJGEIC
    wAFG3MBSfCuJGEIC
    Kpvky6cRNL1NhJmL
    eZANEPuoRBwKrMHE

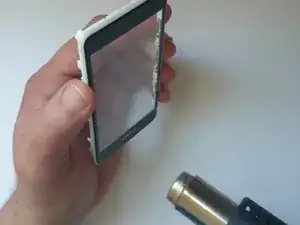

    • Use again hot air and some pressure to stick the glass better.

    • Start wit reassembling.

  10. jWsihZjo3xkNRtQn

    • That's all.

    • .

    • .

    • .

    • .

    • .

    • .

    • Did you do it successfully?

Abschluss

To reassemble your device, follow these instructions in reverse order.
