Sony Xperia E3 Battery Replacement

Geschrieben von: ZFix
  • Kommentare: 2
Sony Xperia E3 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

Sony Xperia E3 - How to disassemble the device and replace the battery.

D2202, D2203, D2206, D2243, D2202

  1. XmW2YFfysDt2kyJr
    XmW2YFfysDt2kyJr
    dgUeyUHDPwiwbdYI
    btZpHVRRqPuEa1MD

    • Turn off the device

    • Remove the SIM and the memory cards.

    • Remove 4x rubber corners.

    • There are 6x black screws Torx T4, remove them.

  2. Sb6aXBHTmbNtZUat
    Sb6aXBHTmbNtZUat
    MawMx5WiDDRL3foF
    1Tu6IJEOF6AeapUF

    • Use a plastic tool and separate the rear bezel.

    • Be careful for the side buttons.

  3. aibIJNFnDpCD646C
    aibIJNFnDpCD646C
    MhqyVeHKfGYxny5a
    KFPLdCcmSiLCCNlI

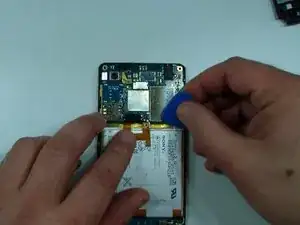

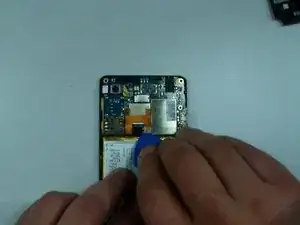

    • Disconnect the battery flex cable.

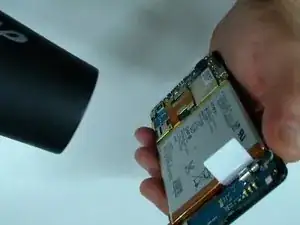

    • Use a Hair dryer and warm little the battery.

  4. UeDXMjPPNmtPkvpd
    UeDXMjPPNmtPkvpd
    iivyOZih6WrDVDGs
    pq1exxH2dPMxEsGp

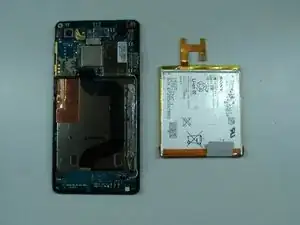

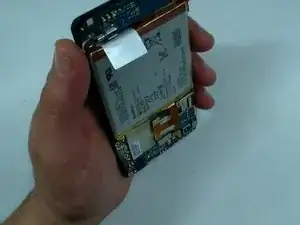

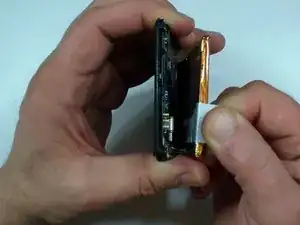

    • Use the white tape on the battery to separate it from the main frame.

    • Battery:

    • Li-ion, 2330 mAh

    • model: LIS1551ERPC

    • The same battery is for Xperia M2 and Xperia M2 Aqua.

Abschluss

To reassemble your device, follow these instructions in reverse order.
