Sony Xperia E4 Touch Screen Glass / LCD Display Replacement

Geschrieben von: ZFix
  • Kommentare: 4
Sony Xperia E4 Touch Screen Glass / LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

E2104, E2105, E2115, E2124

How to disassemble, take apart the device and change / replace broken touch screen glass digitizer, LCD

  1. Yb1CpKA6WL2vS6h1
    Yb1CpKA6WL2vS6h1
    FbVjIwAAs4bOf3RY
    TlprHSlPPimYlFAV

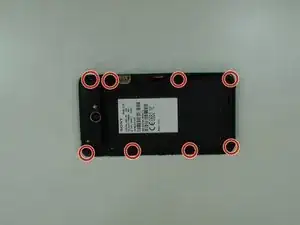

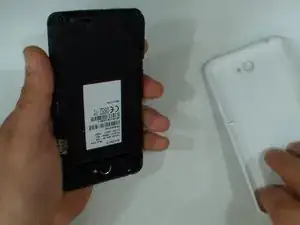

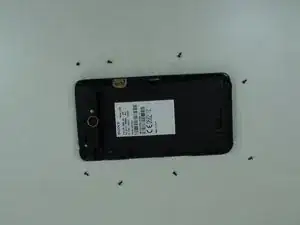

    • Remove the back cover and any installed SIM and memory cards.

    • There are 8x black screws Torx T4. Remove them.

  2. lQfWhclOQgwbOkMR
    lQfWhclOQgwbOkMR
    EfRTPFuCJ2vkWyVK
    SSqkhwODc14vokUX

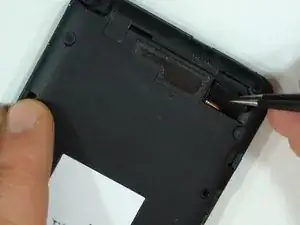

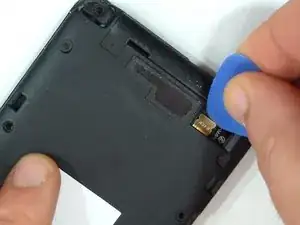

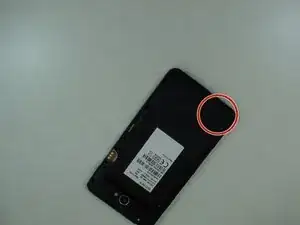

    • Remove the small black rubber at the lower left corner.

    • Under it is the battery flex cable, disconnect it.

  3. kIWJpZylBRXqyZYC
    kIWJpZylBRXqyZYC
    PePSjCXnVQDWMQTX
    51G1Nl1GlZZGdQNy

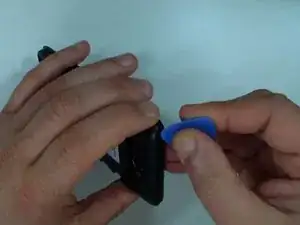

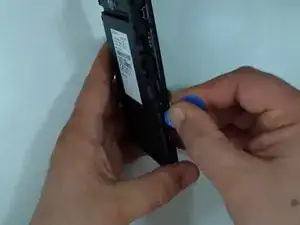

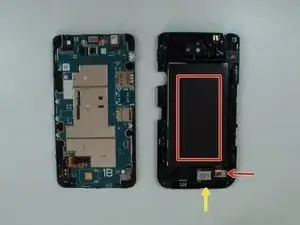

    • Use a plastic tool to separate the middle frame.

    • The battery is glued to the middle frame with an adhesive tape.

    • Loudspeaker

  4. AvFHQAmjiEc5FIyA
    AvFHQAmjiEc5FIyA
    gBSmrt1wkYVrAmi6
    qeNGLdm6knwTiYMt

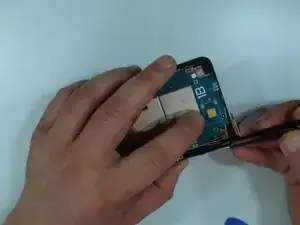

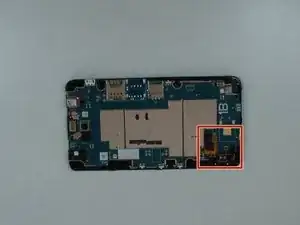

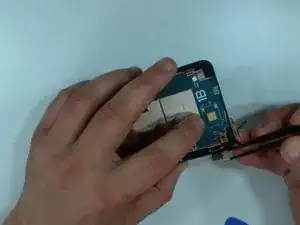

    • Disconnect the touch screen flex cable.

    • Under it is the LCD flex cable. Disconnect it also.

  5. KoVmd3aMWhHGqlZM
    KoVmd3aMWhHGqlZM
    IgllTCVnUOeJ3YJF
    Q3m6d6VVRKDGPter

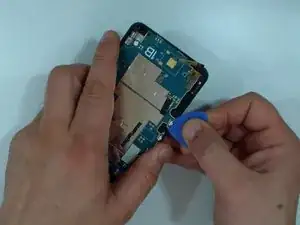

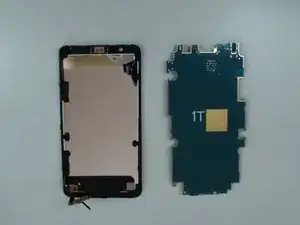

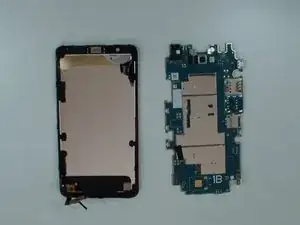

    • Remove the logic board.

    • Be careful for the flex cables.

  6. uOY5SPhOxjGAILQL
    uOY5SPhOxjGAILQL
    FHeNbIEoLaNWtYHN
    4lvlVDkDHY1KZbgM

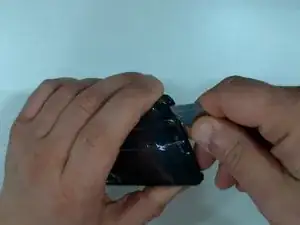

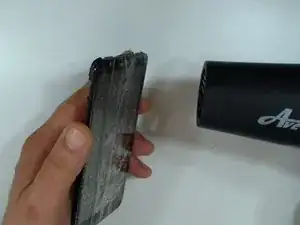

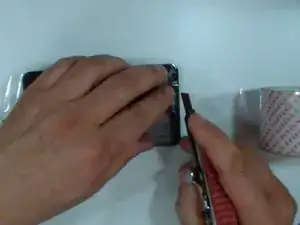

    • Cover the glass with a scotch tape.

    • Warm the glass for about minute.

    • With a cutter lift a little the glase to make a room for the plastic tool.

  7. hnC1GDTWYwnN4nYO
    hnC1GDTWYwnN4nYO
    WTtTOcCDgcL62FwO
    TIEeZPa5pVQcB2Rv

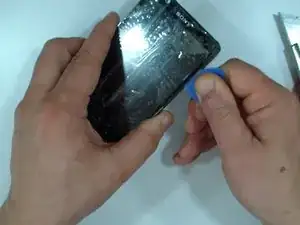

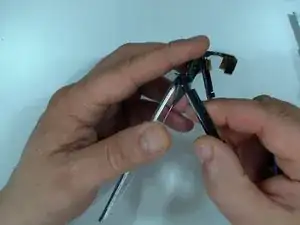

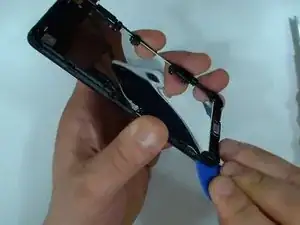

    • Carefully put the plastic tool between the glass and the LCD.

    • The tool must be thin, you can use also a plastic card.

    • Periodically warm the glass.

    • Remove the display frame.

  8. DX2FMPvvjBgf4ibc
    DX2FMPvvjBgf4ibc
    QpIvXWXpJwXkKPQh
    VuUE2JsUxwqCRFSo

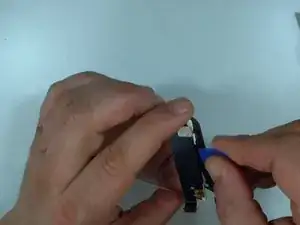

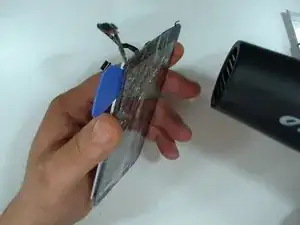

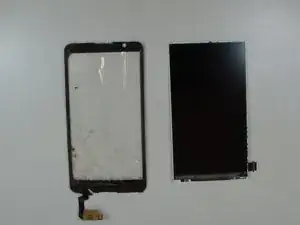

    • Use only plastic tools and don't force the LCD.

  9. lSkDSTrBUKghYEcC
    lSkDSTrBUKghYEcC
    QeiUrDN1WjJg32ds
    UFAPlKAQpnhkdKHq

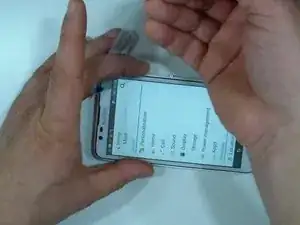

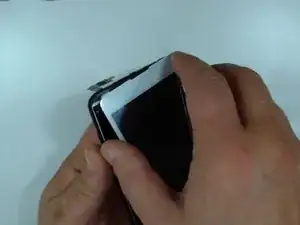

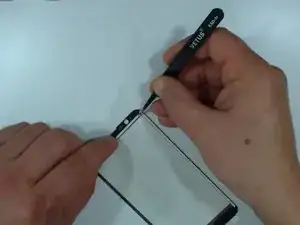

    • Install adhesive tape.

    • It's easier if you order your touch screen together with adhesive sticker.

    • Start with the reassembling.

  10. 3EnwMcYX6DEG2mL3

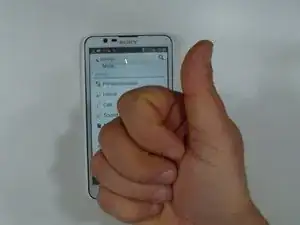

    • That's all.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

ZFix

Mitglied seit: 09/12/13

188213 Reputation

4 Kommentare

Grazie! È stato davvero utilissimo. :)

Andrea DePa -

Doesn't the original glass and digitalizer come out with its biadesive?

marco bigoni -

First Timer here:

I've followed this and replaced the cracked screen (the clear bit).

But it still looks cracked; could it be that I have a cracked LCD thingy as well? (is that the black bit?).

If so what's the part number for that?

MartynJ -

Why don't you just buy the screen which has the lcd and digitiser already assembled? That will save you a lot of hassle for only a few £'s more :)

Clems -
