Sony Xperia L2 LTE Charging Port Replacement

Geschrieben von: Mikayla Wyatt
  • Kommentare: 0
Sony Xperia L2 LTE Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

7 - 9 Minuten

Einleitung

This guide will take you step by step through the process of replacing your Sony Xperia L2 charging port. This guide will with an inoperable or faulty charging port to extend battery life.

  1. E6D2AQORxacUREPG
    E6D2AQORxacUREPG
    qgmgFobdHkRRKNvI

    • Before disassembling the battery, power off your Sony Xperia L2 LTE.

    • Remove SIM card tray.

  2. veNHiv36beUbBOfe
    veNHiv36beUbBOfe
    UMcarjDeDjPt1VHL
    ahPvKbPNIxHWQlDu

    • Use the plastic opening tool to pry the back case of the phone off.

    • The fingerprint sensor is connected to the motherboard.

    • Disconnect the fingerprint sensor.

  3. uPqOkdL2FxpUTW15

    • Unscrew all 10 screws from the top and bottom portion of the phone using a T4 Torx screwdriver.

    • Use the plastic opening tool to remove the unscrewed top and bottom portion of the phone.

  4. K5Ilmyeo3yG2rb4N
    K5Ilmyeo3yG2rb4N
    XNoiyKMbIhrDNPSP

    • Disconnect the battery cable from the motherboard.

    • Pry up the battery and remove it from the device.

    • Battery may have adhesive that needs to be removed prior to removing the battery.

    • Be careful not to jab the battery with any sharp tools. A punctured battery may leak dangerous chemicals or catch fire.

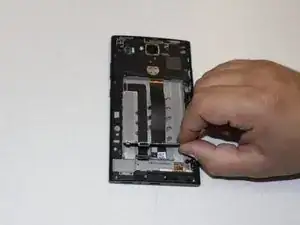

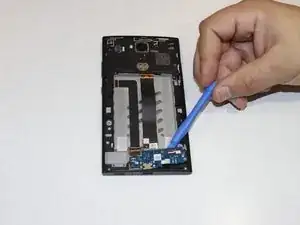

  5. aoQFE1K5aZwXoxJs
    aoQFE1K5aZwXoxJs
    yAu241SMxg2Zkbek

    • Use a plastic opening tool to lift the charging port circuit board.

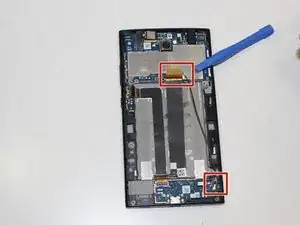

  6. yWelf3HOsVECSPPm

    • Unhook the antenna from circuit board using a plastic opening tool and remove the charging port circuit board from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
