Sony Xperia M4 Aqua Front Camera Replacement

Geschrieben von: Sarah Wetzler
  • Kommentare: 3
Sony Xperia M4 Aqua Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

45 Minuten

Einleitung

This is the step-by-step guide for replacing the Sony Xperia M4 Aqua front camera.

  1. 4Cu4hSNYhOfBFVUJ

    • Place the phone face-down, and use a heat gun or hair dryer to evenly heat the back surface until to soften the adhesive.

  2. eIfbjZAkvRMheMho

    • Attach a suction cup to the back of the M4 Aqua by carefully pushing down on it near the top of the phone.

  3. cLqruxVuhWne5tjo
    cLqruxVuhWne5tjo
    MIUVmmfETfYWdKVl

    • While Pulling on the suction cup, slide a thin plastic spacer (guitar picks work well) between the back cover and the phone. Slide it around the edges to break the adhesive seal. Be careful, but don't be afraid to use some force. You should hear a sticky breaking sound.

  4. qJkemAd5WkTQsfjB

    • Remove the back cover by pulling it from the chassis. it is flexible and can be bent, be careful.

  5. h6EyEgx4qbDqiNWO

    • Remove copper plated tape and any other securing adhesive with a nylon spudger. Remove carefully, as it has the potential or tear if too much force is used.

  6. hhO6UrI6STGCi2pL

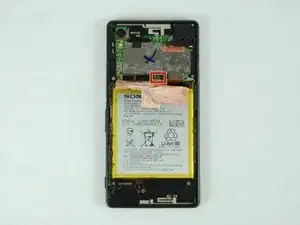

    • Unhook the battery connector carefully. It is possible to damage the battery if too much force is used.

  7. YfP3NJW6u2JUaKo5

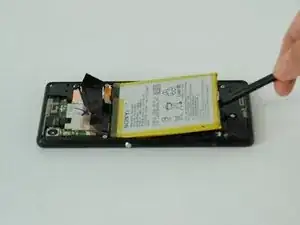

    • Pry the battery from the phone with the nylon spudger. There is a small amount of adhesive underneath the battery, so a bit of force is required. The battery is malleable, so it is possible to dent the battery if too much force is applied in one spot.

  8. FcGnLnVEHUqFmWDd

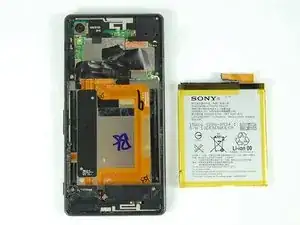

    • Remove the battery once all of the adhesive is broken, and the connector is unplugged.

  9. YTVGqVOxXo1JPtiy

    • Remove the four hex head 3mm screws at each corner of the motherboard with a screwdriver.

  10. vLOuhaM1Gb4E4L1n
    vLOuhaM1Gb4E4L1n
    PmdpAsbJHShMSgPV

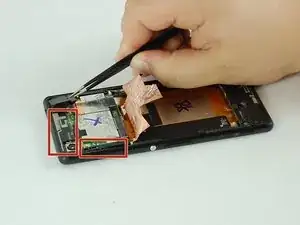

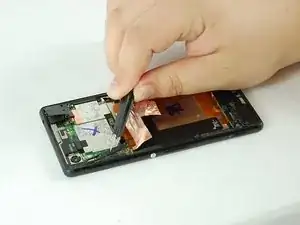

    • Remove three pieces of the securing bracket using tweezers

    This step is wrong. It’s actually two security brackets, not three, as long as you don’t break the one on the left/upper side. If you do it like it’s shown here you will break this part. The correct way to do this is remove the bracket on the right side, then remove the board with the other bracket still attached. Watch this video to get an idea: https://youtu.be/9o1DGKT76eo (interesting part starting at 1:50).

    Willkeinkonto -

  11. OjZwNGYpjSqMZjBI
    OjZwNGYpjSqMZjBI
    jBEcR6Sgm2dKoKZU

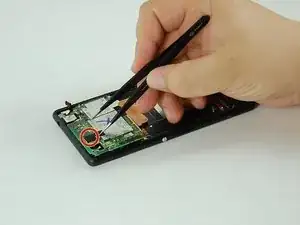

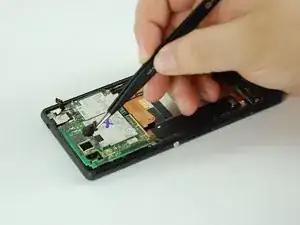

    • Detach the rear camera connector from the front of the motherboard.

    • Remove the rear camera with your fingers or tweezers.

    Isn't front camerra?

    bambang purnomo -

  12. I4HmvBYBvTAPTnfA

    • Release all connectors connecting to the motherboard.

    • Pry the motherboard up from the left side with the plastic pry tool and remove it.

    • Be very careful as the motherboard is tightly bound.

  13. LXOm3TiLNQeEnF66

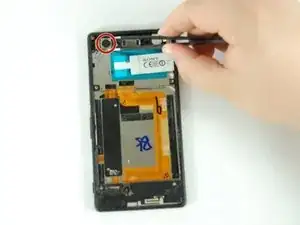

    • With your fingers, detach front camera connector from the back of motherboard.

    • Remove the front camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
