Follows these steps to replace the LCD Screen on the Sony Xperia M4 Aqua. This can be challenging, be sure to be gentle or you may break something.

  1. 4Cu4hSNYhOfBFVUJ
    • Place the phone face-down, and use a heat gun or hair dryer to evenly heat the back surface until to soften the adhesive.

  2. eIfbjZAkvRMheMho

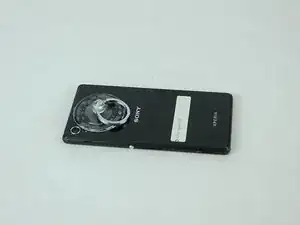

    • Attach a suction cup to the back of the M4 Aqua by carefully pushing down on it near the top of the phone.

  3. cLqruxVuhWne5tjo
    cLqruxVuhWne5tjo
    MIUVmmfETfYWdKVl

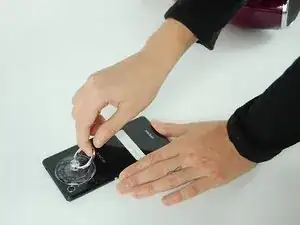

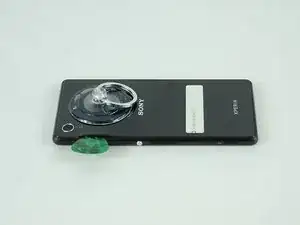

    • While Pulling on the suction cup, slide a thin plastic spacer (guitar picks work well) between the back cover and the phone. Slide it around the edges to break the adhesive seal. Be careful, but don't be afraid to use some force. You should hear a sticky breaking sound.

  4. qJkemAd5WkTQsfjB

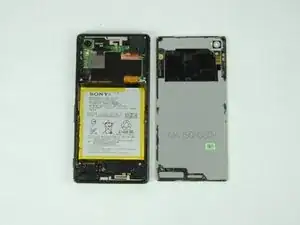

    • Remove the back cover by pulling it from the chassis. it is flexible and can be bent, be careful.

  5. YVIoIPypmnEItb2X
    • Near the bottom of the phone, unscrew the two phillips head screws, one 3 millimeters and the other 4 millimeters,

    • Remove the black plastic strip to reveal the speaker assembly. It is hooked underneath the circuit board beneath, force will be required to pry it out. Carefully unplug the microphone connector as you do this, ensuring not to snap it.

    which one is which :sss

    Veli Prehti -

  6. qQvZJfNxIoZFssYC

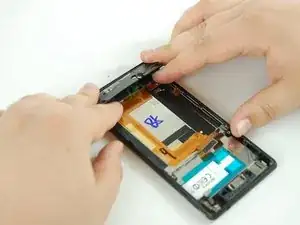

    • Remove the Metal LCD assembly cover by lifting up and pulling it out away from the edge of the phone, towards the middle. Disconnect the LCD connector. The assembly cover is flexible and can be bent, be careful when applying force. Carefully unstick the connector from underneath the LCD cover

    How many pins does the display cable have ?

    Ivan Stefanov -

  7. nPYUNVXaW13bBXbX
    nPYUNVXaW13bBXbX
    UBLH6eUk1vMveDxp
    quaYVS3GZSce6hU2
    • Removing the screen is similar to how the back cover is removed.

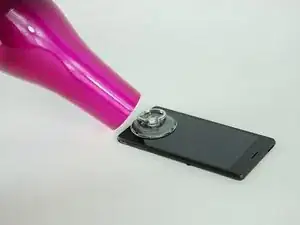

    • Apply heat evenly to the screen

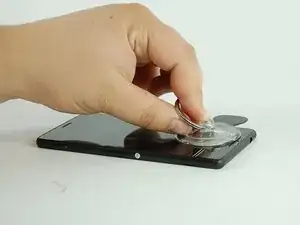

    • attach a suction cup near the top of the phone, and use a plastic spacer to break the adhesive seal between the screen and the phone housing. Twisting the spacer can help to separate the back plate from the chassis.

    • Remove the screen by pulling it away from the chassis

Abschluss

To reassemble your device, follow these instructions in reverse order.
