Sony Xperia SP Disassembly

Geschrieben von: Jomel
  • Kommentare: 0
Sony Xperia SP Disassembly

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

Learn to disassemble the Sony Xperia SP in this guide

  1. Bt56RFSngGXCkSYI

    • Remove back case

  2. w4cSFCVJIIK445ZZ

    • Remove 8 Phillips screws (one in center) and 2 smaller Phillips screws

  3. HU1gUVOPsJWGnofl
    HU1gUVOPsJWGnofl

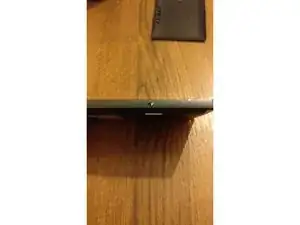

    UGr4gECBNEDGFXuX

    • Remove torque screws on either side

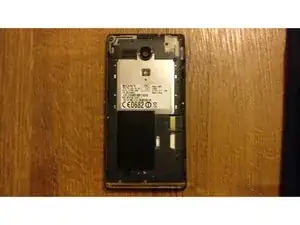

  4. FLfFW5HweBmbxMLl

    • Using a spudger remove the inner back casing by lifting the clips along the frame

    • A ribbon cable connects the back plate to the mainboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
