Einleitung
This will guide you to remove and replace your LCD screen on your phone.
Werkzeuge
Ersatzteile
-
-

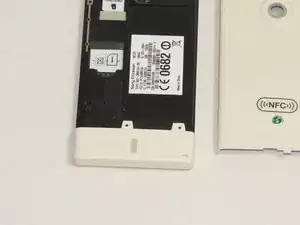

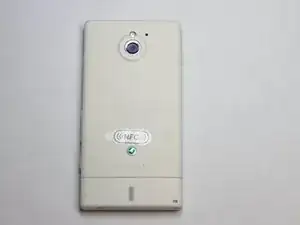

Push on cover away from you. You should hear a snap or pop. This will let you view the battery and sim/sd card slots. Then lift the cover off.
-
-
-

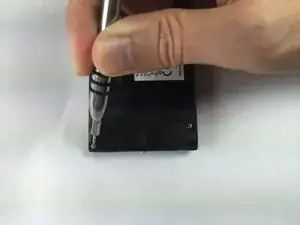

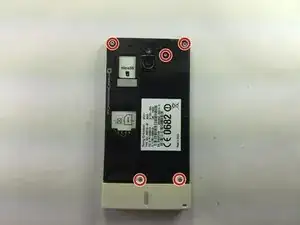

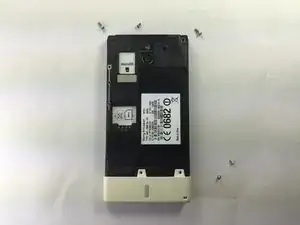

Locate and remove the five (5) screws on the phone, using the 26 Bit Kit. The screws are at the top and the bottom of the phone as shown.
-
-
-

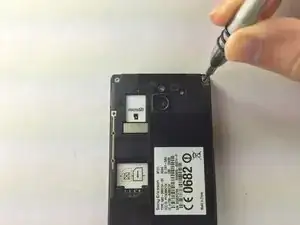

Locate and remove the 2 additional screws, using the 26 Bit Kit, that are revealed. These are marked as shown.
-
-
-

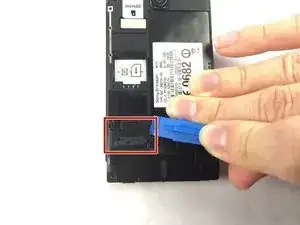

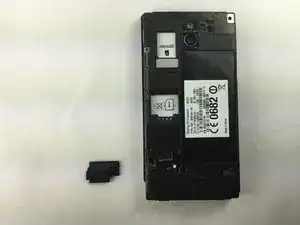

Locate the black cover on the bottom left of phone. Use an opening tool to pry up and remove the black cover.
-
-
-

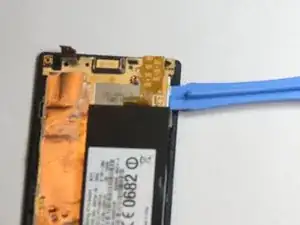

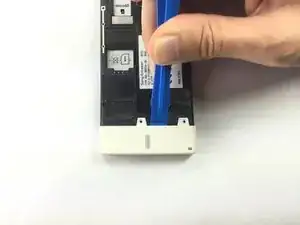

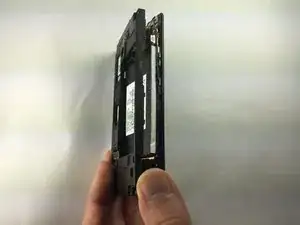

Turn the phone onto its side, insert plastic opening tool into seam, and gently remove cover. You can also slide the spudger in from the top.
-

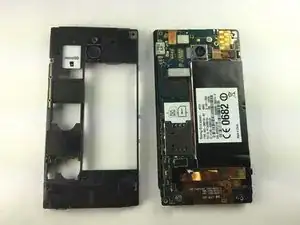

Once the cover is loose, lift it off the phone. The side buttons may feel a bit sticky, but this is normal.
-
-
-

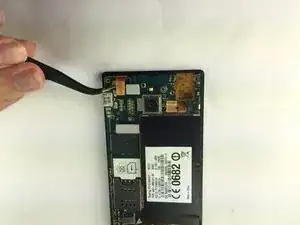

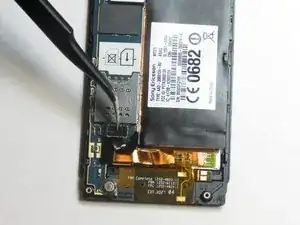

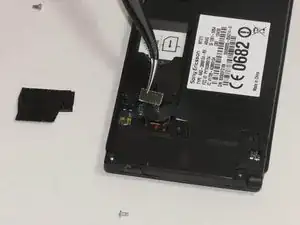

Locate the additional circuit at the bottom left. Using the tweezers, remove it gently by pulling up.
-
-
-

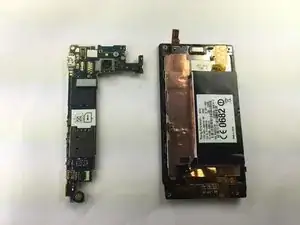

Use the spudger and slide it under the top left of the board then lift the board straight up. The board should come up very easily.
-
-
-

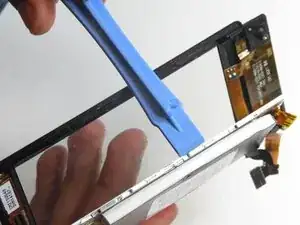

Use either the plastic opener or the spudger to slid in the side. It will go in between the LCD screen and the spot you pulled the board off of.
-
To reassemble your device, follow these instructions in reverse order.
