Einleitung

If the Sony Xperia Sola does not know you are touching it when you are pressing the screen, this guide will show you how to replace the touch screen.

  1. 2rGLbteJnSdDdR6j
    • Lay the phone as shown and put the camera facing up.

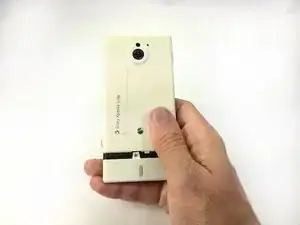

  2. CLWRRslOQdovG4KN
    CLWRRslOQdovG4KN
    CWv5X3AutlQRcRJ1

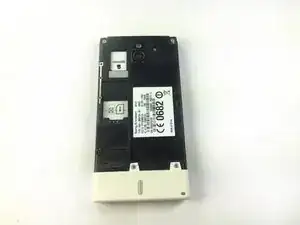

    • Push the back cover as shown, then lift the cover off.

  3. KvIv3aEBIGtGSlZI
    KvIv3aEBIGtGSlZI
    MPfZ2QjpPZeW3w6C
    1ydiqEMbHx5dlX1h

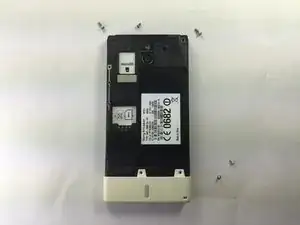

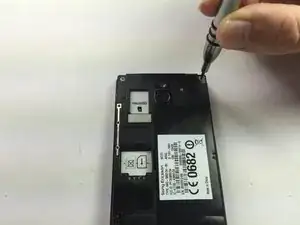

    • Remove the five screws as shown on the phone by using 26 Bit Kit.

    • Use a T6 screwdriver bit to remove top two screws.

    • Use a J000 screwdriver bit to remove the bottom two screws.

    • Use a T3 screwdriver bit to remove the middle screw (close to camera).

  4. oNJEqM4XmoLmOAWU
    oNJEqM4XmoLmOAWU
    XNEHgZkxnWIIIRRl

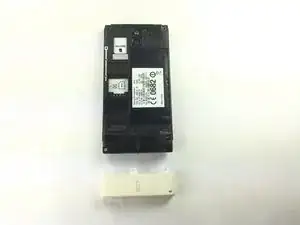

    • Use plastic opening tool to remove the bottom white cover as shown.

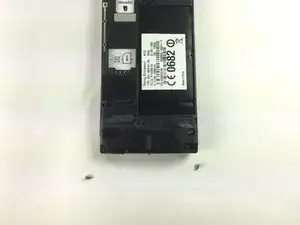

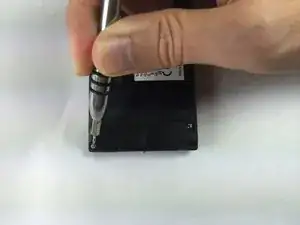

  5. 6s2GK3CoZyNnDNob
    6s2GK3CoZyNnDNob
    DnOyAYpAZn1bkuE3
    • There are two additional screws under the bottom white cover as shown.

    • Use T3 drivers to remove two additional screws as shown.

  6. Jbf4KXUIsSn6SRVu
    Jbf4KXUIsSn6SRVu
    4WWxULvNEMlMPBXR
    aSSlR26ZAeLMmKPn

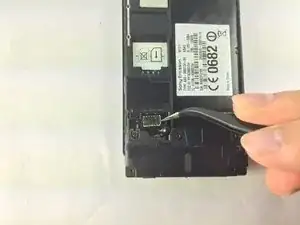

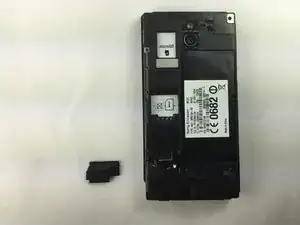

    • Using plastic opening tool, lift to remove the small black cover on the bottom left of phone as shown.

    • Then, using tweezers to lift the connector straight up to disconnect the battery's circuit as shown.

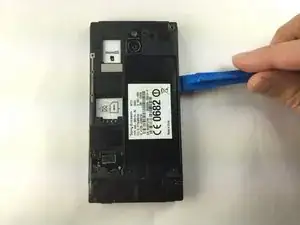

  7. KWJroqyTvQHlCKJo
    KWJroqyTvQHlCKJo
    nygODGdLZ1HCsT5W
    SvtLgiTtGSJRTFwP

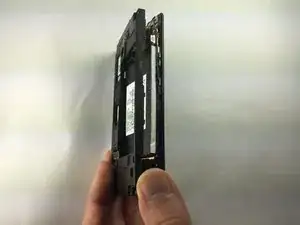

    • Turn the phone onto its side and insert a flat object and gently remove cover, using plastic opening tool as shown.

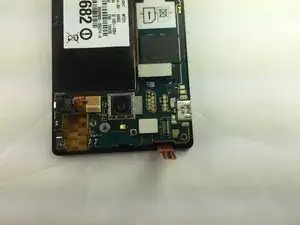

  8. YVUwfVJijIlf1xO2
    YVUwfVJijIlf1xO2
    GhIwyAbwJJDl3DXG

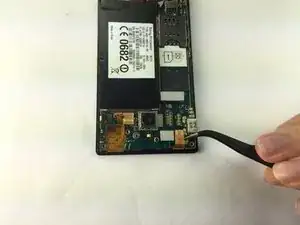

    • Lay the phone down as shown. Then use tweezers to pull additional power circuit up gently to remove it as shown.

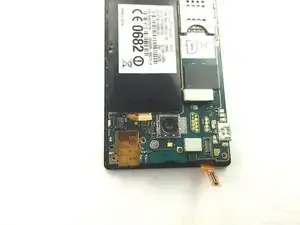

  9. cpq3ZnnmuD4fOb2P
    cpq3ZnnmuD4fOb2P
    UuY6TbMufKfrLLKN

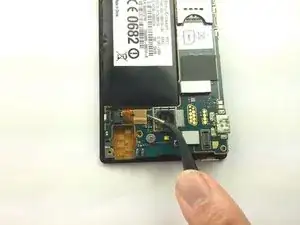

    • Repeat the last step as shown to remove additional power circuit which is on the top of the battery.

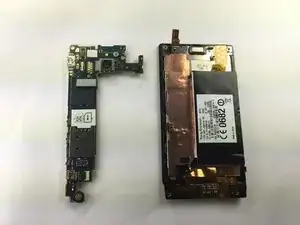

  10. nPGVEXqxtXpEMY4d
    nPGVEXqxtXpEMY4d
    usDVKoNriqRFRtkS
    • After removing all connectors, Use the plastic opening tool to slide it under the top left of the board then lift the board straight up.

  11. N45gVry5Digcujl5
    N45gVry5Digcujl5
    iiyvxBFeowiASJTC
    UwMpEZLCCarDXuIE

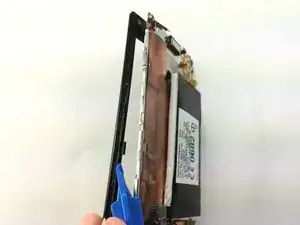

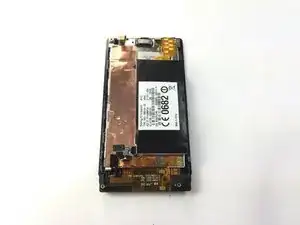

    • Separate the screen from the touch screen sensor, use the spudger to do this job.

    • The left piece is the plastic screen.

    • The right piece is the touch screen sensor that you are looking to replace.

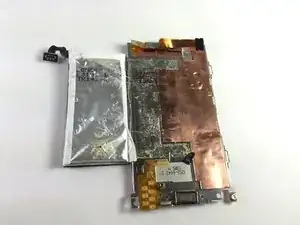

  12. TBpOa1VNkROX4Dtm
    TBpOa1VNkROX4Dtm
    hWHflRdjh3JxYMBT
    GwKIiAqxgJVPD1JD

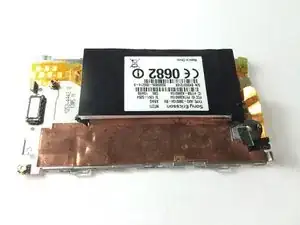

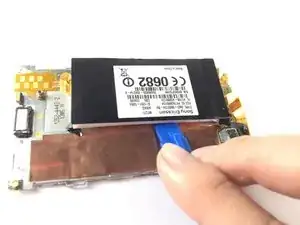

    • Flip the touch screen sensor over and remove the battery from the back of it.

    • The battery might be glued on so some force might be needed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
