Einleitung
This guide is to show what components need to be removed in order to replace the dual SIM slot. If the phone is not reading the SIM cards in the slot, it may need to be replaced after checking the connections. The SIM card slot is essential for having cellular connection. If one slot fails, the whole dual SIM slot must be replaced.
-
-
Using the spudger, pry open the back cover by starting alongside the edge of the back cover.
-
-
-
Once the part of the back cover has been opened up. Slide the spudger to pry completely detach the cover from the phone.
-
-
-
Using the Phillips #00 Precision screwdriver, take out 8 silver screws (3.15mm) and 5 gold screws (3.9mm) for a total of all the screws attached to the flat plate. 3 of the gold screws are located at the top of the phone and the other 2 screws are located at the bottom of the phone.
-
-
-
To remove the internal cover, use the plastic spudger tool and pry the cover from the phone as shown in the picture.
-
-
-

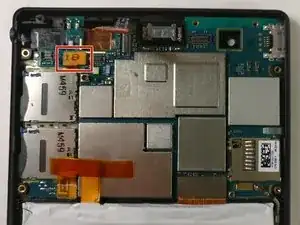

To take out the back facing camera, flip open the flap labelled ‘film’ to reveal the chip that connects to the motherboard.
-
-
-

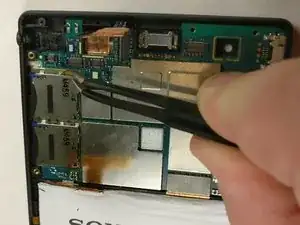

Using the tweezer, carefully pry open the chip for the front facing camera as shown. Then using the tweezer, carefully remove the front facing camera component.
-
-
-

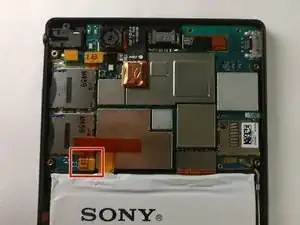

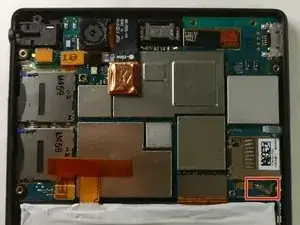

Using tweezer, locate the audio jack as shown and pull out the chip connected to the motherboard.
-
-
-

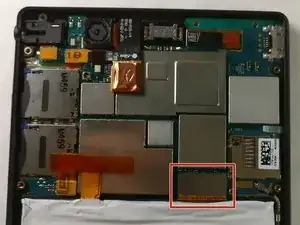

Carefully remove the audio jack by using the tweezers and pull firmly straight out of the motherboard.
-
-
-

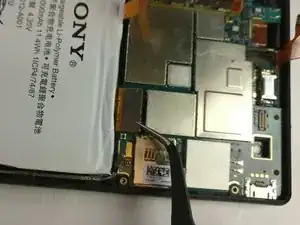

Using tweezers, carefully remove the motherboard by pulling it up and out of the backing.
-
-
-

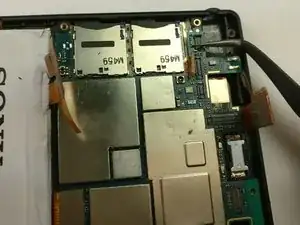

Using the Tweezers, carefully pry the the dual SIM slot off the sticky substance used to hold it down.
-
To reassemble your device, follow these instructions in reverse order.
