Sony Xperia Tablet Z Battery Replacement

Geschrieben von: Martin Luna
  • Kommentare: 14
Sony Xperia Tablet Z Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. gXYtyiRWUPjNFNc2

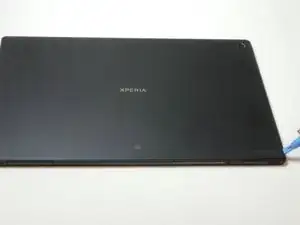

    • Place the plastic removal tool in the corner of the object.

  2. FYMjWZCBmfsWZk1d

    • Slide the plastic removal tool along the edges.

  3. AaYv3By1qdAQKZOP

    • Remove the cover

    • Disconnect the battery, to avoid electric shock, by pulling up on the white plastic shown with the orange box.

  4. TfNQFbSP6hqvwkRE
    TfNQFbSP6hqvwkRE
    NfCpN3Ys6FvHVu2i
    dZCrqXutj4Za2Ryv

    • In the top right corner of the device remove the piece of tape connecting the front camera to the motherboard.

    • Then disconnect the camera from the motherboard.

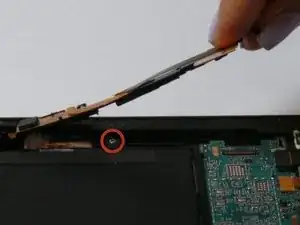

    • Lift and remove the front camera to expose hidden screw to replace battery.

  5. QChAZhYc21UCTLA2
    QChAZhYc21UCTLA2
    OWdA3hijAPIUgnGE
    VoQ4tLOZQ6hvLouE

    • Remove all screws connecting the battery to the tablet. Location of screws shown with red circles.

    • Then lift the left side first then detach the connection in the lower right corner. Connection shown with orange box.

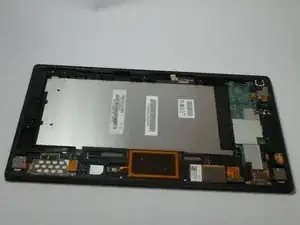

    • Completely remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
