Sony Xperia XA Headphone Jack Replacement

Geschrieben von: Stephen Rock
  • Kommentare: 4
Sony Xperia XA Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

40 Minuten

Einleitung

You will need to use a source of heat. You may need to buy adhesive for the reassembly. Make sure the phone is completely powered off before opening the device. The headphone jack is held in by plastic retaining clips and may pop off when removed.

  1. kIN5CoNHdTnkmVhv

    • Apply heat on the back surface of the phone.

    • Continue to heat the device as needed throughout the replacement process.

    • The device can get very hot, so be careful when handling it.

  2. 2GTniACyHUITh6Yt

    • Stick the small suction cup on the bottom half of the back surface of the phone.

  3. yD4lHsbQDW2kHd3E
    yD4lHsbQDW2kHd3E
    VGU5Tf1JQYcj5s1d
    vgYDRsIHAifmGVpD

    • With the bottom of the device facing you, lift up on the suction cup handle.

    • Use the plastic opening tool around all sides to pry off the back cover.

  4. ZMiJMIOBDMcZkA1Z
    ZMiJMIOBDMcZkA1Z
    pA3LNNHGfOpTEKXl
    MjbBvLZ1JAOYQ5H3

    • Pull the back of the phone case away from the device.

    • You will hear popping sounds of glue being ripped from the phone.

    • You will hear the sound of the back unlatching from the device.

    • You will need to apply adhesive or glue along the device to have maximum seal in reassembly.

    • RAF antenna may be attached to the back cover upon removal.

  5. ysUSW2uwbWScyBFW

    • Apply heat to the copper RAF antenna.

    • This step and the following step only apply if the RAF antenna does not come off when taking the back cover off.

    Where can i buy this copper raf antenna

    mhel nival -

    I also need it for my phone I kinda ripped it apart oops ?

    Tiybah -

    Mike J - I found that simply raising the edge overlapping the battery connector gave sufficient room to disconnect the battery so no need to remove the antenna and risk tearing!

    Mike Jurkiewicz -

  6. pDCsBfXjVrTxRyaX

    • Peel back the RAF antenna.

    I’ve ripped the copper part of this would I be able to get a new part or will the phone not work with out it?

    Tiybah -

  7. 1oVq6KlF5prxgxXN
    1oVq6KlF5prxgxXN
    Wn2Qf6UeRRP3IX5Y

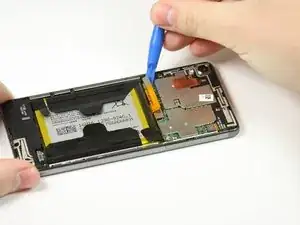

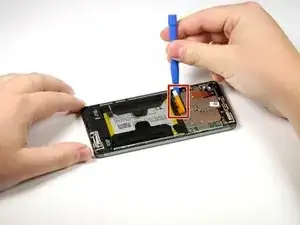

    • Pry up the copper connector next to the battery with the plastic opening tool.

  8. YxSg4jxX5VULPqrV
    YxSg4jxX5VULPqrV
    4Oar43uTV5MlDyvF

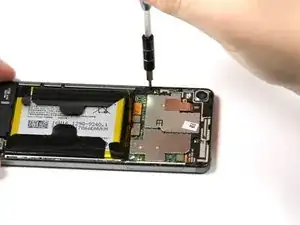

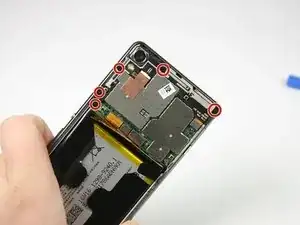

    • Remove the five black 4mm screws with a Phillips #00 Screwdriver.

  9. JXmaKi2dwRoLTKVo
    JXmaKi2dwRoLTKVo
    mNqX3Ss53TulywcS
    rKl6NHTSGyyU1FhT

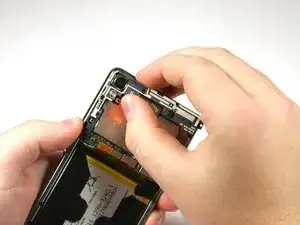

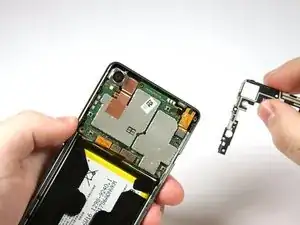

    • Pry up the black camera case with the plastic opening tool and then remove the case.

  10. oI6YFECVRK3pFgAW
    oI6YFECVRK3pFgAW
    cdc2ftCOFZsaliVd

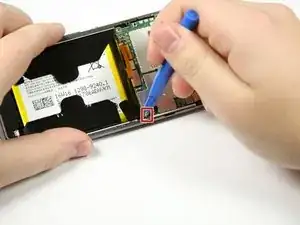

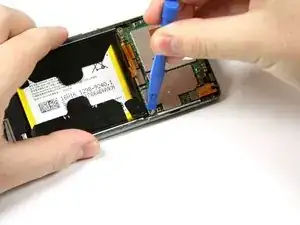

    • Pop off the small connector on the right side of the motherboard with the plastic opening tool.

  11. O2XwLFWBVMWQq2fm
    O2XwLFWBVMWQq2fm
    pHIb3jnrn3KPjTqi

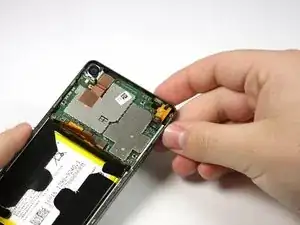

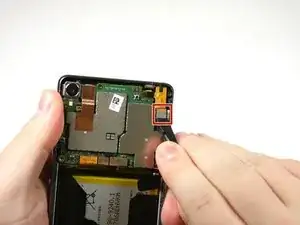

    • Use the spudger to take off the connector in the top right of the motherboard.

  12. K5DYEScjqnqkrLRB
    K5DYEScjqnqkrLRB
    CAJBBILeHUPQFVyo
    mHXfBwRIALdBSuoS

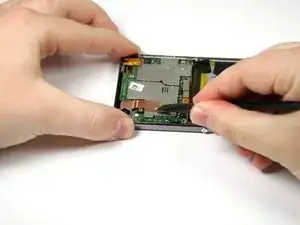

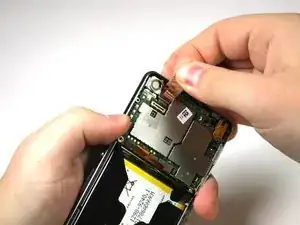

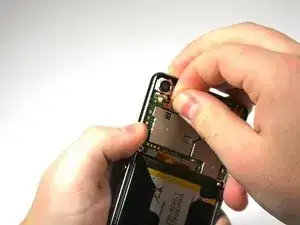

    • Use the flat end of the spudger to peel up the copper tab to the right of the back camera.

    • Peel back the tab past the connector.

    • Tab is stuck with adhesive.

  13. r1Z1hRJKTMIT2Pdg
    r1Z1hRJKTMIT2Pdg
    qXKSXQYyYLtMHabk
    QyEDFpNB1mj3QsWU

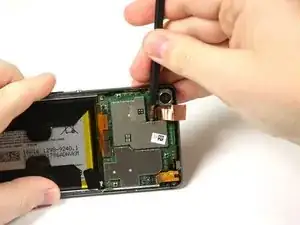

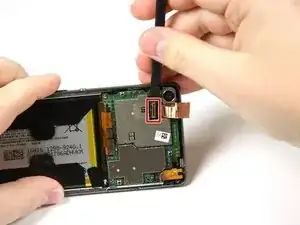

    • Pry up the camera's connector to the motherboard with the nylon spudger.

  14. FIjJkLUy6sPOZ5m1
    FIjJkLUy6sPOZ5m1
    qa3UrGhWUKNLDEyH

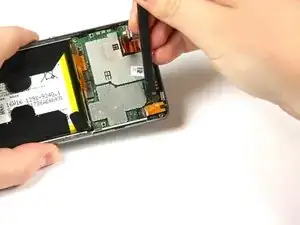

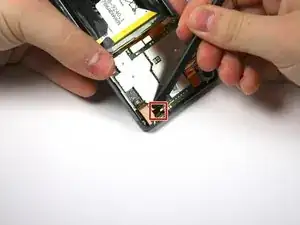

    • Use the spudger to loosen the black connector from the top right of the motherboard.

  15. 5GnVGKfCVP2kDWds
    5GnVGKfCVP2kDWds
    IxgiyCddWNYmXBgV
    fNWNMUT2mODjXGcu

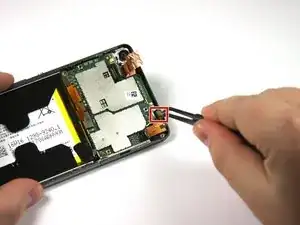

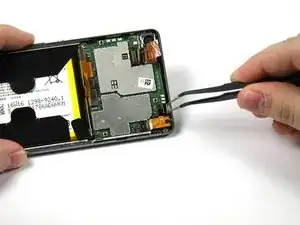

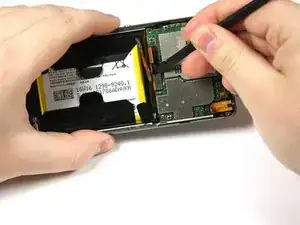

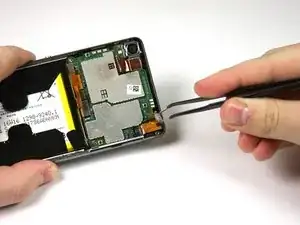

    • Pull out the square shaped connector using tweezers.

  16. Rw6IeKMO1q5TRccB
    Rw6IeKMO1q5TRccB
    UsnSdnU52D3PdKAD

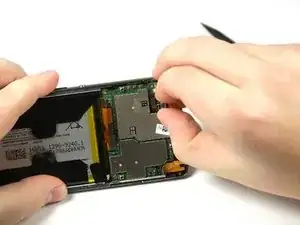

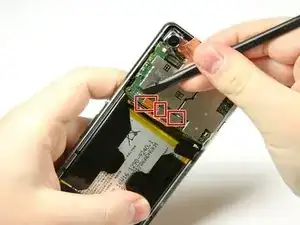

    • Use the spudger to detach the three copper connectors on the bottom area of the motherboard.

  17. NH2UGvGktLZcJcC4
    NH2UGvGktLZcJcC4
    NKdAiZGogyCWgel3
    JHBB4VPXJNIg1OIi

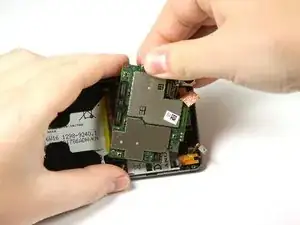

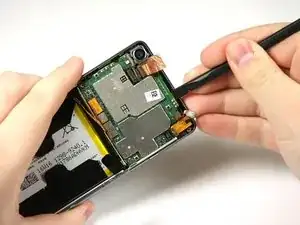

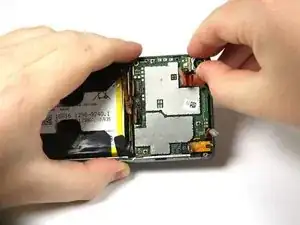

    • Use the spudger to separate the motherboard from the frame.

    • Pull out the motherboard using your fingers.

  18. J2YbSiZUiFFMvMmJ
    J2YbSiZUiFFMvMmJ
    pgmlNpuxlBDi14YO

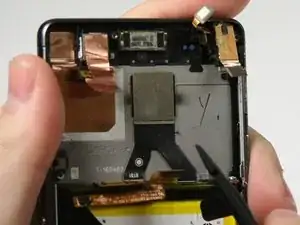

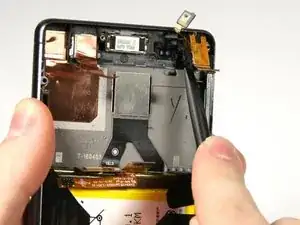

    • With the spudger, pry the headphone jack located in the top right corner of the phone.

    • The new headphone jack snaps into place in the right corner between the retaining clips.

Abschluss

To reassemble your device, follow these instructions in reverse order.
