Sony Xperia XA LCD Screen Replacement

Geschrieben von: Anthony Hernandez
  • Kommentare: 5
Sony Xperia XA LCD Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

32

Zeitaufwand

2 Stunden

Einleitung

You will need to use a source of heat. You may need to buy adhesive for the reassembly. Make sure the phone is completely powered off before opening the device.

  1. kIN5CoNHdTnkmVhv

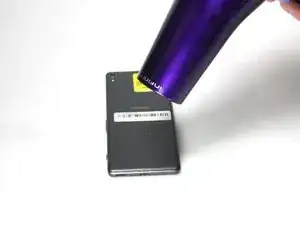

    • Apply heat on the back surface of the phone.

    • Continue to heat the device as needed throughout the replacement process.

    • The device can get very hot, so be careful when handling it.

  2. 2GTniACyHUITh6Yt

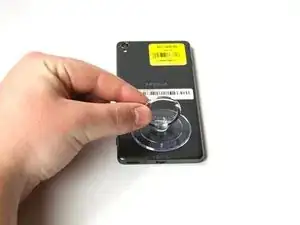

    • Stick the small suction cup on the bottom half of the back surface of the phone.

  3. yD4lHsbQDW2kHd3E
    yD4lHsbQDW2kHd3E
    VGU5Tf1JQYcj5s1d
    vgYDRsIHAifmGVpD

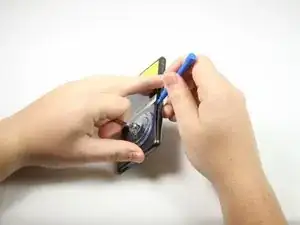

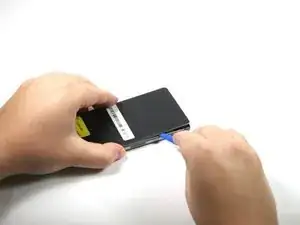

    • With the bottom of the device facing you, lift up on the suction cup handle.

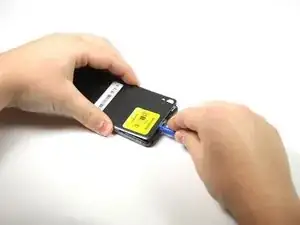

    • Use the plastic opening tool around all sides to pry off the back cover.

  4. ZMiJMIOBDMcZkA1Z
    ZMiJMIOBDMcZkA1Z
    pA3LNNHGfOpTEKXl
    MjbBvLZ1JAOYQ5H3

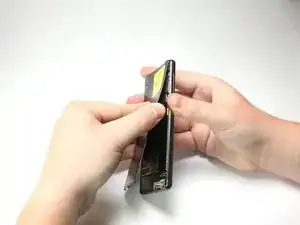

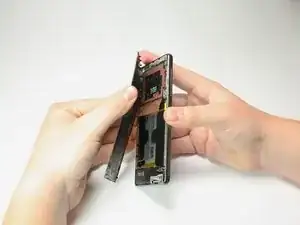

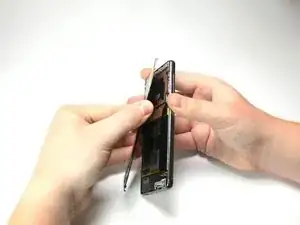

    • Pull the back of the phone case away from the device.

    • You will hear popping sounds of glue being ripped from the phone.

    • You will hear the sound of the back unlatching from the device.

    • You will need to apply adhesive or glue along the device to have maximum seal in reassembly.

    • RAF antenna may be attached to the back cover upon removal.

  5. ysUSW2uwbWScyBFW

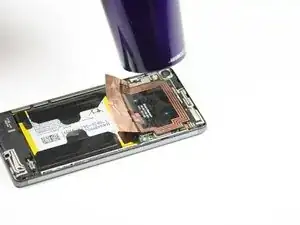

    • Apply heat to the copper RAF antenna.

    • This step and the following step only apply if the RAF antenna does not come off when taking the back cover off.

    Where can i buy this copper raf antenna

    mhel nival -

    I also need it for my phone I kinda ripped it apart oops ?

    Tiybah -

    Mike J - I found that simply raising the edge overlapping the battery connector gave sufficient room to disconnect the battery so no need to remove the antenna and risk tearing!

    Mike Jurkiewicz -

  6. pDCsBfXjVrTxRyaX

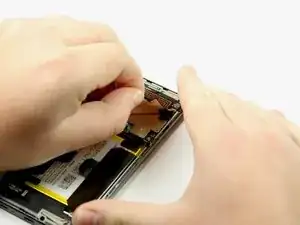

    • Peel back the RAF antenna.

    I’ve ripped the copper part of this would I be able to get a new part or will the phone not work with out it?

    Tiybah -

  7. TCHgn2CqUZ3dtC1T
    TCHgn2CqUZ3dtC1T
    qp5lZcGytEQPkJ1Z
    qDTQS2jAD4vjZFcQ

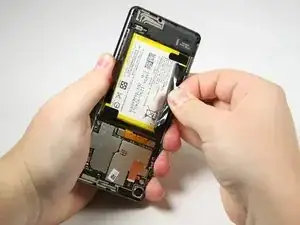

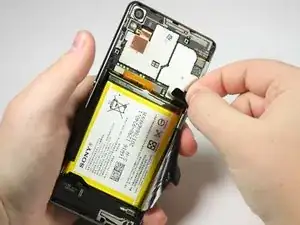

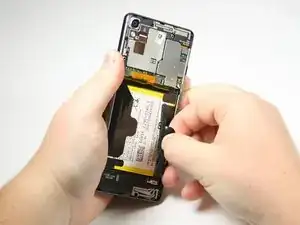

    • Peel back the black tabs on the battery.

    • This may require some force as you are breaking the adhesive seal.

    • You will need to apply more adhesive for the reassembly.

  8. yHc1ulSwiS2Ednj6
    yHc1ulSwiS2Ednj6
    UFTegGCP6US6OYrt

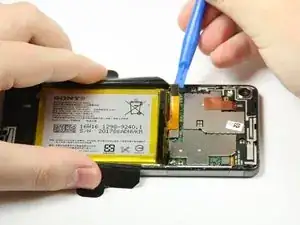

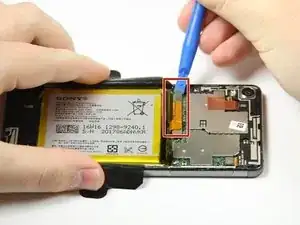

    • Use a plastic opening tool to pry up the orange battery connector that is directly above the battery in the center of the phone.

  9. VMHqjvXEZmSyvZZf

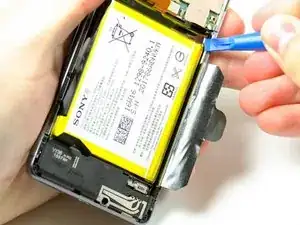

    • Use a plastic opening tool to get under the battery and pry it up.

  10. g5lxOSr5gd2eweIf

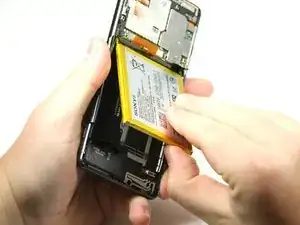

    • Lift the battery out with your hands.

  11. yMrZHVG2cKtDKYtP
    yMrZHVG2cKtDKYtP
    yEGquTGePCxlKhjD

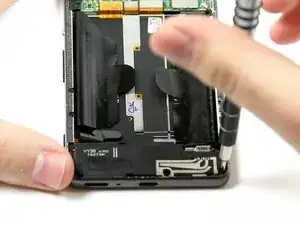

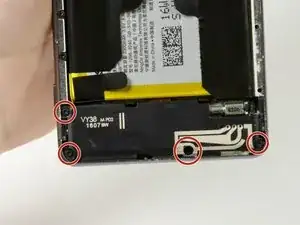

    • Remove the four 4mm screws holding the loudspeaker in place with a Phillips #00 screwdriver.

  12. 2FS3bv4TSwQFDtFh
    2FS3bv4TSwQFDtFh
    P1jLVnq5OAUHiSUM

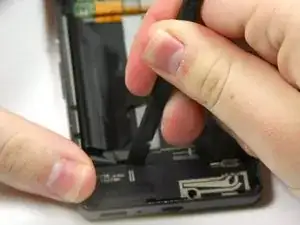

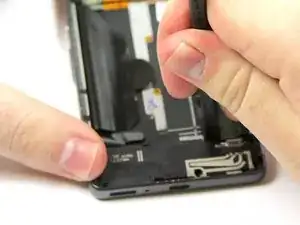

    • Push back the two retaining tabs on the top of the loudspeaker with the spudger.

  13. CUMSbQUrqY6mjhLs

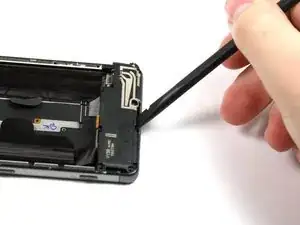

    • Pry the loudspeaker up with the spudger.

  14. j4q44WNpUjpXRFOo

    • Remove the loudspeaker with your hands.

  15. amw1y6anPdqQY1LX

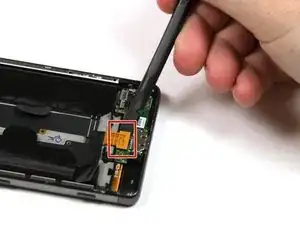

    • With a spudger, pry up the orange connector that is directly underneath where the loud speaker was just removed.

  16. 2nNURyWfbFNr2HsJ
    2nNURyWfbFNr2HsJ
    nDMJP5CGBPvjWjHH

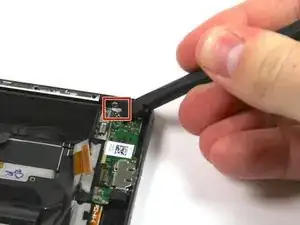

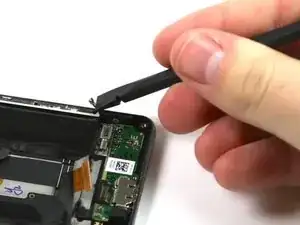

    • Pry up the small silver connector on the right side of the bottom of the phone with a spudger.

  17. CcqFyBBTWyu5Qiog
    CcqFyBBTWyu5Qiog
    Xnuum6HmYU5KC6H4

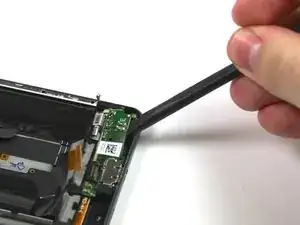

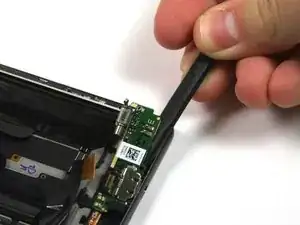

    • Pry up the charging port using a spudger.

  18. L14EYoSHITUAMpEB
    L14EYoSHITUAMpEB
    JAaG1FS6nQWjKV1N

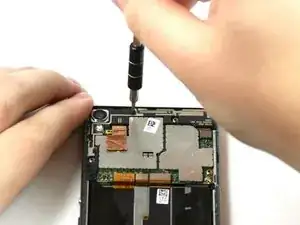

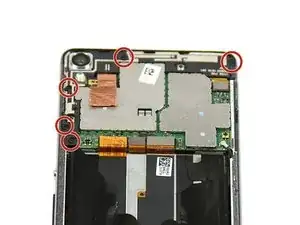

    • Remove the five black 4mm screws with a Phillips #00 screwdriver.

  19. XQRGWX3CMaT3nPxl

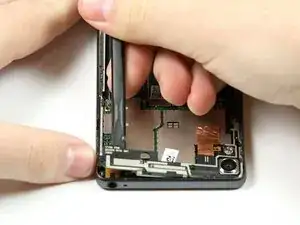

    • Pry up the black camera case with a nylon spudger, and then remove the case.

  20. XTxCnPHDDQ2AKi6c
    XTxCnPHDDQ2AKi6c
    6uYYAL3sNQc11gZZ
    lVQF1yngZSpGhpru

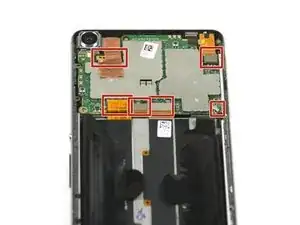

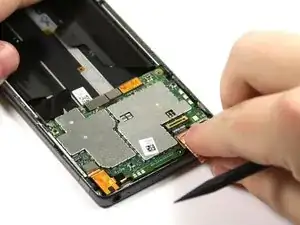

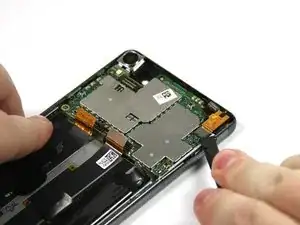

    • Use a spudger to pry up the six motherboard connectors.

  21. BDQZU5ybowvvYNsW

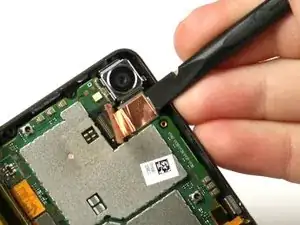

    • Use the flat end of the nylon spudger to lift the camera out of the phone.

  22. E1hIMoL4kqfvgHSN

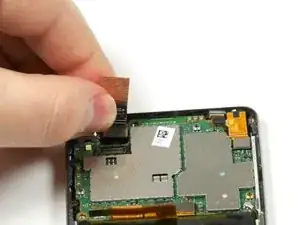

    • Pull out the front camera using your fingers.

  23. NEHtIUdZw1ARAcC2

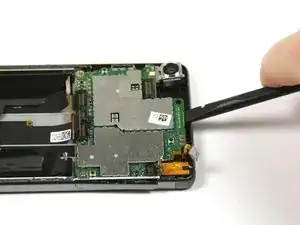

    • Use the spudger to separate the motherboard from the frame.

  24. yFVJm2pi1nwOIPuy
    yFVJm2pi1nwOIPuy
    DgBGAe4kiYQB2mR5

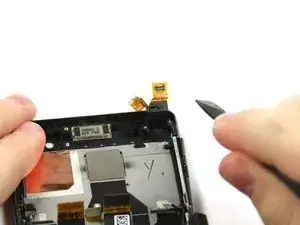

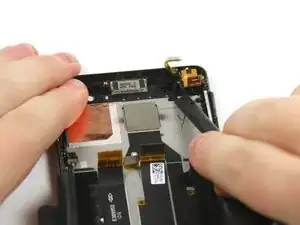

    • Pry up the headphone jack using a spudger.

  25. AQuPG5JLHlhnYNfT
    AQuPG5JLHlhnYNfT
    CSONZPwTt1AgWWYT

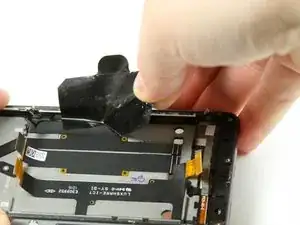

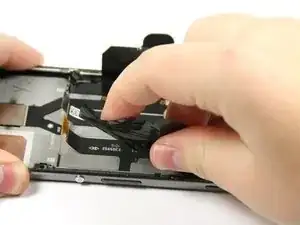

    • Peel back the black tabs that were holding the battery in place.

    • You may hear loud sounds as you pull the tabs because they are stuck with adhesive.

  26. ToUdeAHVYLlHLuMn
    ToUdeAHVYLlHLuMn
    dsZ1jeYMAWZDVlA3

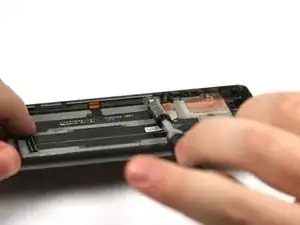

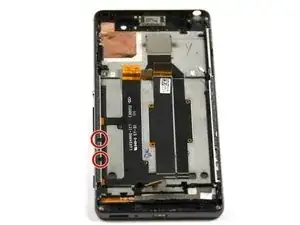

    • Remove the two 4 mm screws with a Phillips #000 screwdriver from the left side of the back of the screen.

  27. uanZqQaI3CGCRWhD
    uanZqQaI3CGCRWhD
    enjxjEQ5TJ3EVNvw

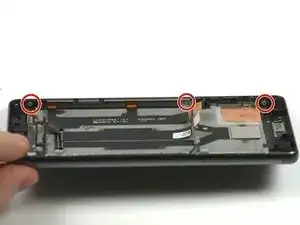

    • Remove the three 3mm screws with a T5 screwdriver along the side of the device where the volume buttons are.

  28. MkRECySoWAohfBj4
    MkRECySoWAohfBj4
    O4wPSUfZTDEWM5Ij

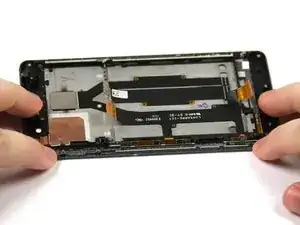

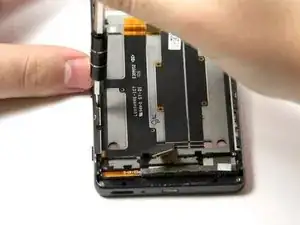

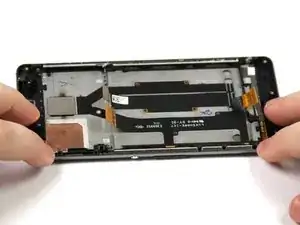

    • Push down the side of the screen that you just removed screws from.

  29. BFqVUU4PPxGbty5V
    BFqVUU4PPxGbty5V
    RrewX4jic4yWWSy6
    Dhd64RAWaZbDIxKi

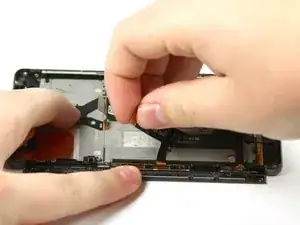

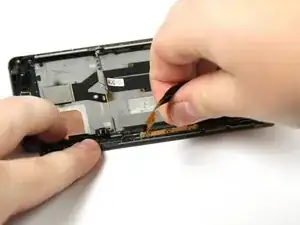

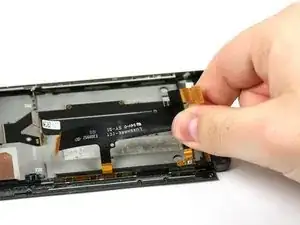

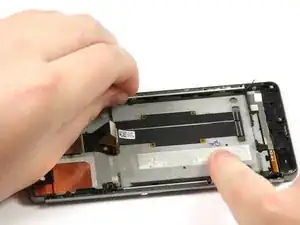

    • Pull up the orange and black tab that is on the left half of the middle of the screen.

  30. jXXgxPQ6phS3ZOTu
    jXXgxPQ6phS3ZOTu
    GsyDeQjSSj5Zq1pl

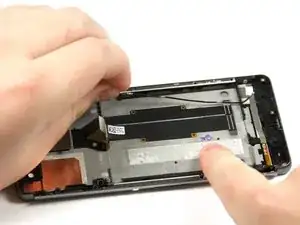

    • Remove the Wifi antenna.

  31. 34NDiJdaPPTtrNfY
    34NDiJdaPPTtrNfY
    MJtiYo4sAJscUUOg

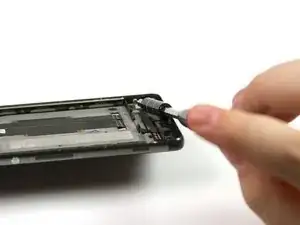

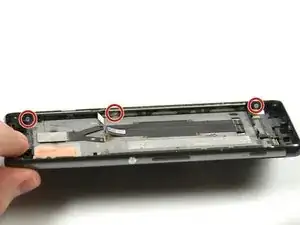

    • Remove the three 3 mm screws with a Star Bit T5 Screwdriver on the opposite side of the phone.

  32. a3JYuDuhYW6qXc4d
    a3JYuDuhYW6qXc4d
    JHVmL1OANhjoOt1s

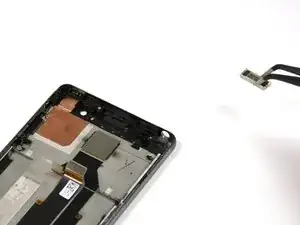

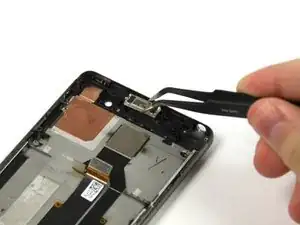

    • Use tweezers to remove the earpiece.

    So… Completed all these steps and now I’m left with a broken phone screen still attached to the casing !!! - I’m guessing this guide isn’t finished yet . How do I get the old broken screen away from the outer casing ?

    Kelvin Wilkie -

Abschluss

To reassemble your device, follow these instructions in reverse order.
