Sony Xperia XZ2 Rear Camera Replacement

Geschrieben von: Dan Nguyen
  • Kommentare: 2
Sony Xperia XZ2 Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

15 - 20 Minuten

Einleitung

If the rear camera of your phone is cracked or not functioning correctly, it may be time for a replacement. This guide will walk you through replacing the rear camera on your Sony Xperia XZ2.

For this guide you will need a hair dryer, opening picks, angled tweezers, a spudger, and a Phillips #00 screwdriver.

  1. 6e4XTTmfPxPyRDJy
    6e4XTTmfPxPyRDJy
    Vag21UAeQmZ6ClrS
    IHiTQTNnTyobWkQO

    • Weaken the glue that is keeping the screen in place by heating up the edges of the phone with a hair dryer or heat gun.

    • The phone gets very hot and can hurt the user handling it.

  2. B6jtSOHqw2yKZ2FN
    B6jtSOHqw2yKZ2FN
    VADNxye1RCDWIscu
    4bEfCEtfSFMeQHwi

    • Scrape all the glue from the inside edges by inserting opening picks into the bottom edge of the phone and working your way around the edges.

    • If the glue hardens and becomes difficult to move the plastic around the edges, reheat the phone.

    Hi my sony XZ2 NOT HAVE light lcd i need to ic light lcd

    Sayed Latif -

  3. UVF5ZnIEQEXYfBvb
    UVF5ZnIEQEXYfBvb
    mqIiB5BwQDkecm4j

    • Pry open the phone by inserting an opening pick under one of the edges and removing the screen.

    • The screen is still attached by a connector, so do not pull the pieces apart.

  4. wGYFQBI4OcLrIyiT

    • Remove the bracket covering the connector by grabbing one side of the bracket with angled tweezers and gently pulling it off.

    It doesn't look like it, but this is a tricky step. The bracket is a small and fragile part, easily broken (happened to me), even when using the right tool, and almost impossible to repair. Make sure to go easy when grabbing it!

    Célestin Taramarcaz -

  5. PXllfPPpQRgndZjw

    • Gently remove the connector by using a spudger to pop it off.

  6. uUIXrAV4sns6N4UD

    • Take out the twelve 3.5mm screws using the Phillips #00 screwdriver.

    • Remove the one 3 mm Phillips #00 screws.

    • Remove the two 1mm Phillips #00 screws.

    • Fifteen screws should be removed in total in this step. (Not all the screws are visible in the picture.)

  7. 3mrHqTXHEBvMWC2n

    • Lift the metal screen shield out of the phone.

  8. g6VNHShZeMZ5mERq
    g6VNHShZeMZ5mERq
    pOOcrbBxkThv5Khd
    SxpHDIA24AC1hnbp

    • Use the spudger to pry up the battery flex connector to pop the battery out.

  9. dJw3vnRFPOOCCbQL

    • Lift the battery out of the phone.

  10. 5Xsn4kpgRWM6toxJ

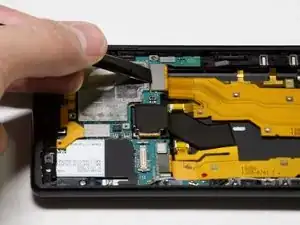

    • Pry off the flex connector with a spudger.

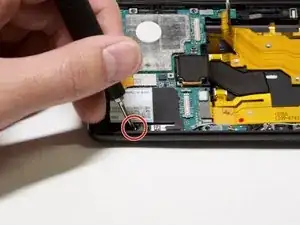

  11. BmNimFrSqKx4C3UL

    • Take out the one 3mm screw on the motherboard with the Phillips #00 screwdriver.

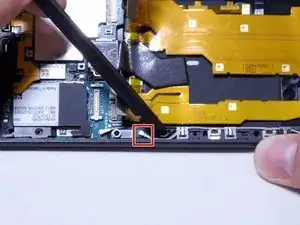

  12. DwsRjs3iCMuagxIY

    • Using a spudger, remove the antenna connector.

  13. UXTCYAWIustHHTuU

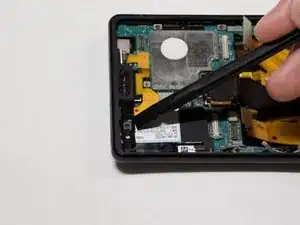

    • Gently lift the proximity sensor bracket by using a spudger.

  14. fQir4JTsqMZIIVml
    fQir4JTsqMZIIVml

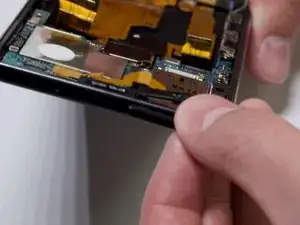

    XrHOVKUFpDuPBAuL

    • Remove the SIM card holder.

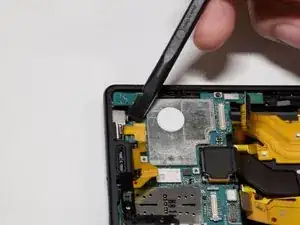

  15. GxUjDV2YFBxbYSMT

    • Pry off the flex connector using the spudger.

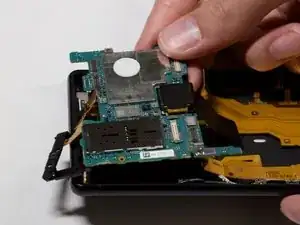

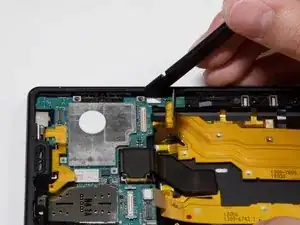

  16. QvQwteMukrHXFbGx
    QvQwteMukrHXFbGx
    NMWNvPt2V5DIUZmM
    xvWhRYAAKwpSYEAb

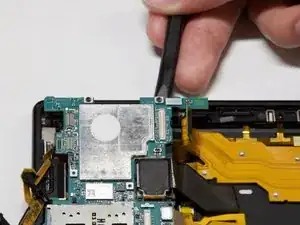

    • Use the spudger to lift the motherboard out of the phone.

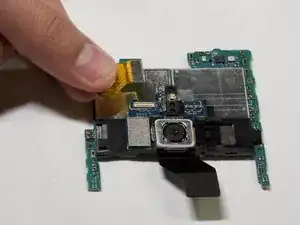

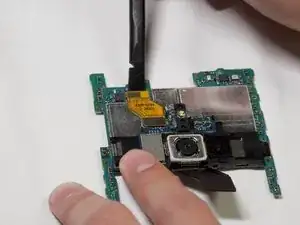

  17. wZSBJGJSECVNYHCv
    wZSBJGJSECVNYHCv

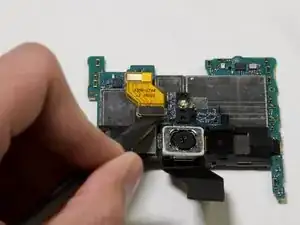

    PoWvcMFvtormcQai
    kDnEd6GVSMDI1ONI

    • Disconnect the yellow connector by gently prying both sides of it using a spudger.

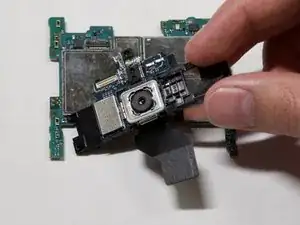

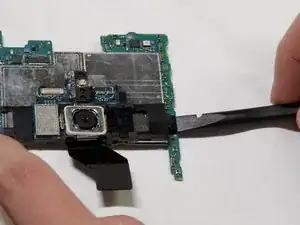

  18. j2gt1aUdZ1XRjR6R
    j2gt1aUdZ1XRjR6R
    MBGsdOchpURkKWCy

    • Disconnect the camera module from the motherboard by pulling the module up from the side using a spudger.

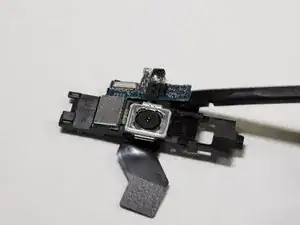

  19. LeEKT6XmpZikXm1d
    LeEKT6XmpZikXm1d

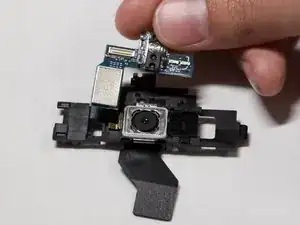

    2EkPyTJL61PrNkGX

    • Remove the upper module by gently lifting it with a spudger.

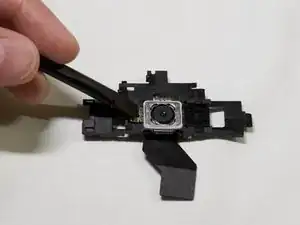

  20. g6MxBocEhfn1Taec
    g6MxBocEhfn1Taec

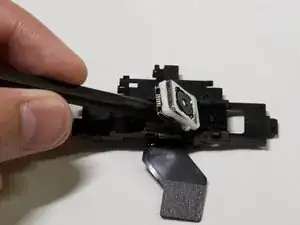

    hrq3J5qHetk2GHnK

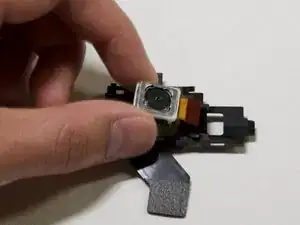

    YLQsw2pSDDUnV1mk

    • Gently lift up the rear camera by using a spudger under the rear camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
