If you need to replace the vibration motor on your phone use this guide. The vibration motor is what vibrates your phone every time you get a notification. If your phone is not vibrating when it should be, you may need to replace the vibration motor. For this guide you will need a spudger. To replace the vibration motor you first need to remove the LCD screen and the battery, which can be moderately difficult.
-
-
Weaken the glue that is keeping the screen in place by heating up the edges of the phone with a hair dryer or heat gun.
-
-
-
Scrape all the glue from the inside edges by inserting opening picks into the bottom edge of the phone and working your way around the edges.
-
-
-

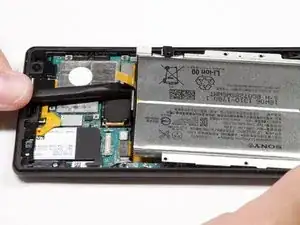

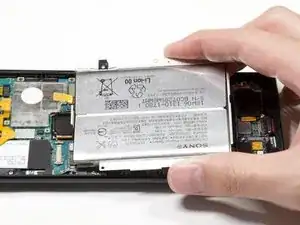

Pry open the phone by inserting an opening pick under one of the edges and removing the screen.
-
-
-

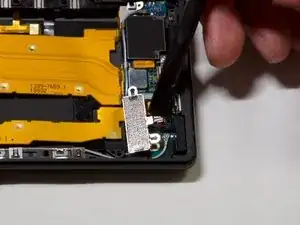

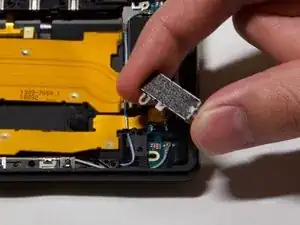

Remove the bracket covering the connector by grabbing one side of the bracket with angled tweezers and gently pulling it off.
-
-
-
Take out the twelve 3.5mm screws using the Phillips #00 screwdriver.
-
Remove the one 3 mm Phillips #00 screws.
-
Remove the two 1mm Phillips #00 screws.
-
-
-

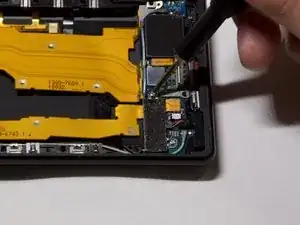

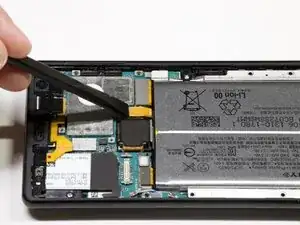

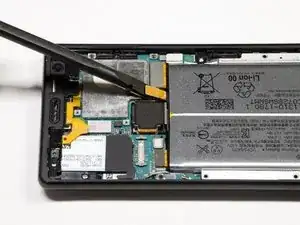

Remove the vibration flex connector by inserting a spudger into the socket and gently prying off the connector.
-
To reassemble your device, follow these instructions in reverse order.
