Sony Xperia Z1 Compact Rear Camera Replacement

Geschrieben von: Kevin Bergstrom
  • Kommentare: 2
Sony Xperia Z1 Compact Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

Keine Schätzung

Einleitung

This guide will replace the rear camera in the Sony Xperia Z1 Compact.

  1. DBKwDRLllggVuRJ3

    • Heat along the edges of the back cover using a heat gun to soften the glue.

  2. ohOtZfSZZmxnfxw5

    • Attach the small suction cup to the back cover near the bottom of the phone.

    • Pull up on the suction cup and insert the plastic opening tool in between the back cover and the rest of the phone.

  3. yRPOB5EduVFAP3VN
    yRPOB5EduVFAP3VN
    NkqbLFYqVId2NZtT

    • Move the spudger around the edge of the back cover to separate it from the black adhesive.

    • Separating the back cover from the rest of the phone ruins the adhesive which makes it no longer waterproof.

  4. HKSEw3ptLw1j15Bx
    HKSEw3ptLw1j15Bx
    NXI4ZFdPFlJQRowO

    • Carefully disconnect the battery from the logic board by using the plastic spudger as a lever.

  5. vRglHIh4jC4Gr1F1
    vRglHIh4jC4Gr1F1
    41EapUklIeutSQlp

    • Remove the single 1 x 3.0 mm screw holding the battery in using the JIS #00 screwdriver.

    The replacement batteries probably come without the new NFC sticker, so you’ll have to transfer it from the original one to the replacement. This can be easily done with an iPlastix and a good amount of isopropyl alcohol. Do this carefully.

    Stefano Restuccia -

  6. sVeIba3IAM1teEoS

    • Pry the battery up from the ends using the plastic spudger until the battery pops out of the enclosure.

  7. x64XCf5Mgf2nCdDG

    • Remove the battery from the device

  8. ILpOlFg1gOIdYJLg
    ILpOlFg1gOIdYJLg
    hO2HJVGJSOBcQso1

    • Unscrew the four screws on the corners of the back frame using the JIS #00 screwdriver.

  9. psd1q5XQOnvBoYWc
    psd1q5XQOnvBoYWc
    KwZWCciAPKsURTDS
    PREC2DpnWVddfbqg

    • Wedge the plastic opening tool under the back frame. Move the plastic opening tool around the entire frame to separate it from the adhesive.

  10. vfF5P2gE1EjTm1e3

    • Remove the back frame.

  11. iWKYokRhE2UD1EnC
    iWKYokRhE2UD1EnC
    oD662OtlqBbUJTIH

    • Wedge the spudger underneath the external speaker. Pull up on the external speaker using the spudger.

  12. 3cKdLKEjnty51Z3n
    3cKdLKEjnty51Z3n
    q1DLVXKSNeTCtetZ

    • Remove the external speaker.

  13. nYcBVPZdeZsefsFC
    nYcBVPZdeZsefsFC
    YBnmSWNZfLEsrHDE

    • Remove the square rubber gasket from the camera using the plastic spudger.

  14. MsugmnualDZwQdTG
    MsugmnualDZwQdTG
    ywJwGYl2TryKoEIF

    • Remove the black plastic corner still holding in the motherboard.

  15. XD2aWA5BjffeMieU
    XD2aWA5BjffeMieU
    6HcSddiW11JEJbSh
    AZjmAPt54HJOFWsM

    • Carefully pry up on the four sides of the motherboard using the plastic spudger til it separates from the base of the phone.

  16. odULAObVrYaxGGdo
    odULAObVrYaxGGdo
    1HDhKrPoWGSAfjq4
    Xq6WJ1OZ3CbuqOqR

    • Remove the motherboard from the device.

    • There may be a small yellow adhesive underneath the motherboard still holding it in. Slide the tip of the spudger through it to sever it.

  17. DVKMfDS6VtPuOEjm
    DVKMfDS6VtPuOEjm
    XE3danj31uYSE1v2

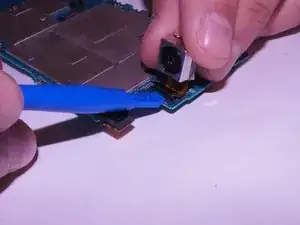

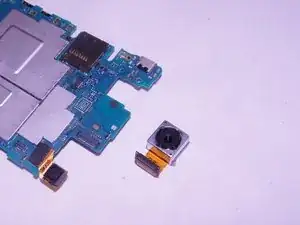

    • Disconnect the camera from the motherboard using a spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kevin Bergstrom

Mitglied seit: 21/09/17

383 Reputation

Ein Kommentar

The trouble is that the headphones jack and the monitor cables are unplugged when removing the motherboard and I do not think it is possible to plug them back in from the back side of the phone. I think the monitor needs to be removed for them to be plugged from the front.

natuk -
