Sony Xperia Z1 Compact Screen Replacement

Geschrieben von: jaanparker
  • Kommentare: 5
Sony Xperia Z1 Compact Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

  1. UIqmTmP1bpXKdIqN

    • Apply heat to the edges.

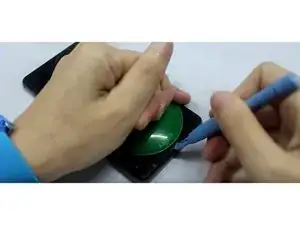

  2. gCATH5Us4dFyalMh

    • When the glue is warm slowly start prying from the top corner.

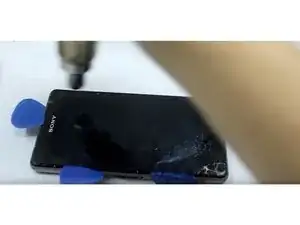

  3. SBZ6ivXEEQSDRJRA

    • If the glue is cooled down heat more. Don't force it.

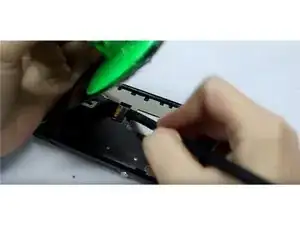

  4. XuAYVjCoVqWApdRg

    • Remove the data cable from the phones body.

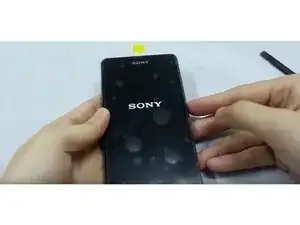

  5. aMWMNS3cRkM5ZD2m

    • Test if the new screen works properly.

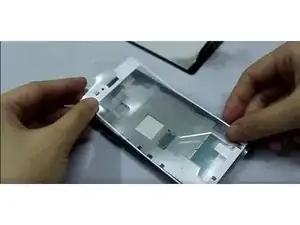

  6. gDqqWXLPiEinwB1Y

    • If the screen works, remove the new screen and add the double sided tape

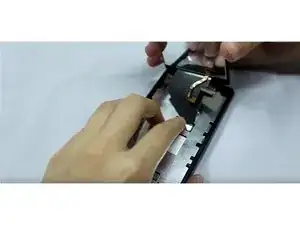

  7. PrnWgR6mJVGgSOPY

    • Connect the new screen to the phone.

  8. Lv51GoJioTpdUYjv

    • Now push town not to tight not to softly to the screen.

    • And that's it. You finished the screen replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
