Sony Xperia Z3 Compact Front Camera Replacement

Geschrieben von: Sophia
  • Kommentare: 1
Sony Xperia Z3 Compact Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace the front-facing camera in your Sony Xperia Z3 Compact.

  1. k3K4uUyNTLW6xH43
    k3K4uUyNTLW6xH43
    xIxovvJXetCXxsI1
    Y5NPQjtX1IDWkWkx

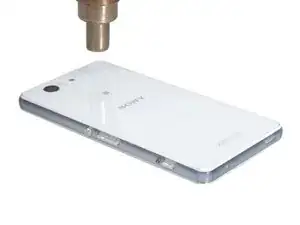

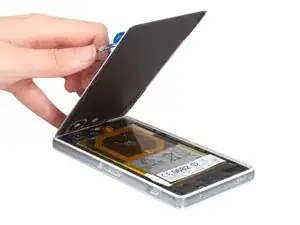

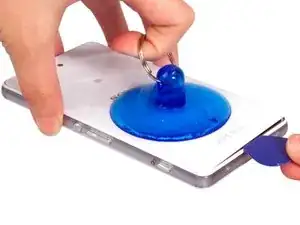

    • Carefully use a heat gun or hairdryer to melt the adhesive holding the rear case to the phone.

    • Use a suction cup to lift the rear case slightly, enough to slide an opening pick around the edge and loosen the adhesive.

    • Remove back cover.

  2. wRkEQPIguRrckDYF
    wRkEQPIguRrckDYF
    cxcU2TwPQlSCowB3
    WjhZLCPAwOVT2K1J

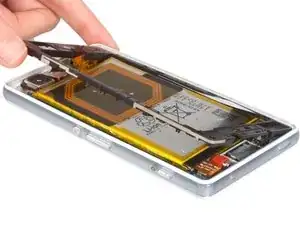

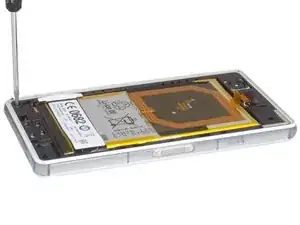

    • Disconnect the NFC antenna.

    • Unscrew the screws holding the black midframe in place.

    • Remove the midframe.

    • Be aware that there are small tabs holding the midframe into the frame of the phone. These are located at the top and along the sides. You may need pry gently pry the midframe out with the flat end of a spudger.

    This is the NFC ribbon cable not the battery

    tobinmckenna -

  3. Re5eSI4NUPTdMotn

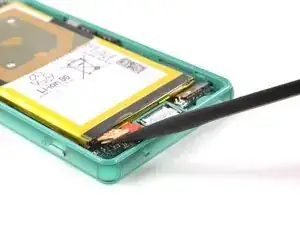

    • Disconnect the battery flex cable.

  4. DHYbredXRZNwBTSx
    DHYbredXRZNwBTSx
    UQugETTuDqdmQDnQ
    TYxJqOpkRKbfst4s

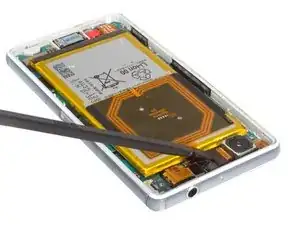

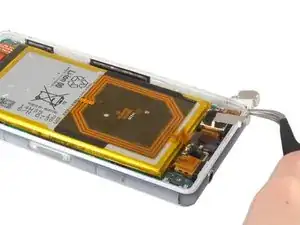

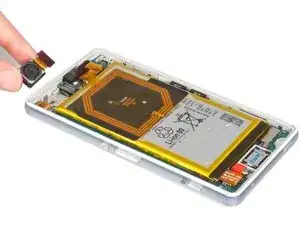

    • Remove bracket.

    • Release connector, but take care not to damage the electronic components next to the connector. It is best to access the connector from the bottom (battery side), and not from the side as the picture shows.

    • Remove rear camera.

  5. Vrgs4LdXl62s1ULh
    Vrgs4LdXl62s1ULh
    KXbSKH1CPwiOeXvc
    jEKhuh1MbnpYd1pV

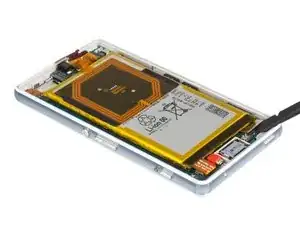

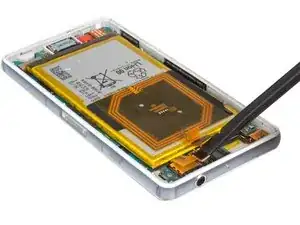

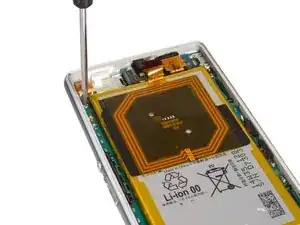

    • Release connectors and screw.

  6. pQEUNIYPFLSJC1OT
    pQEUNIYPFLSJC1OT
    HZIWOTjEZMkS13fG
    F6HWniEOY2gplbrS

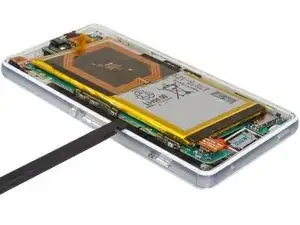

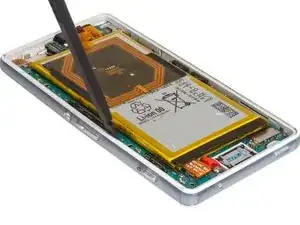

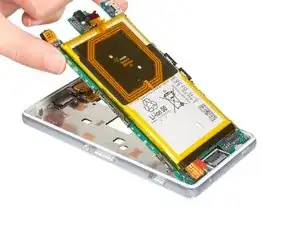

    • Remove motherboard.

  7. 4johRuIUpIWFUFnn
    4johRuIUpIWFUFnn
    OYN3sEjQxprpCSGs
    riUsaPJaYVOZPkEh

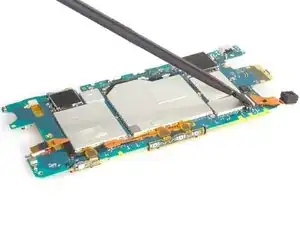

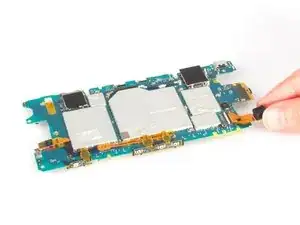

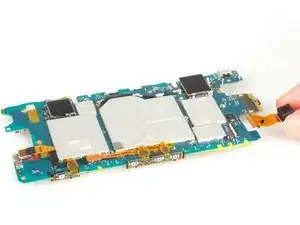

    • Remove front camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
